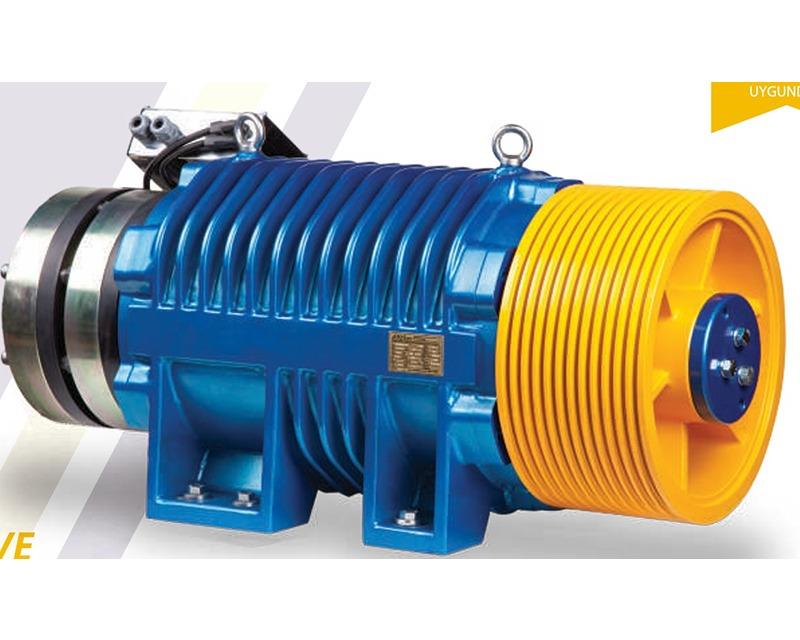

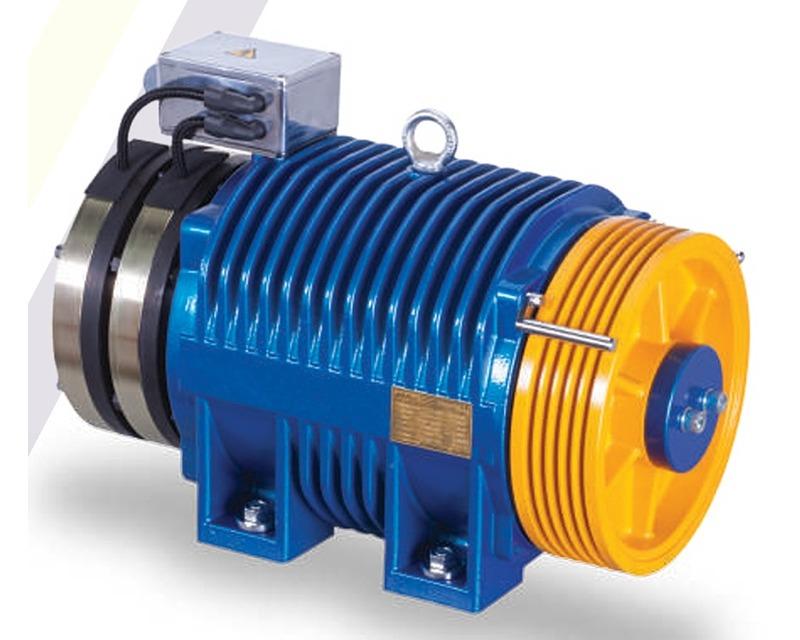

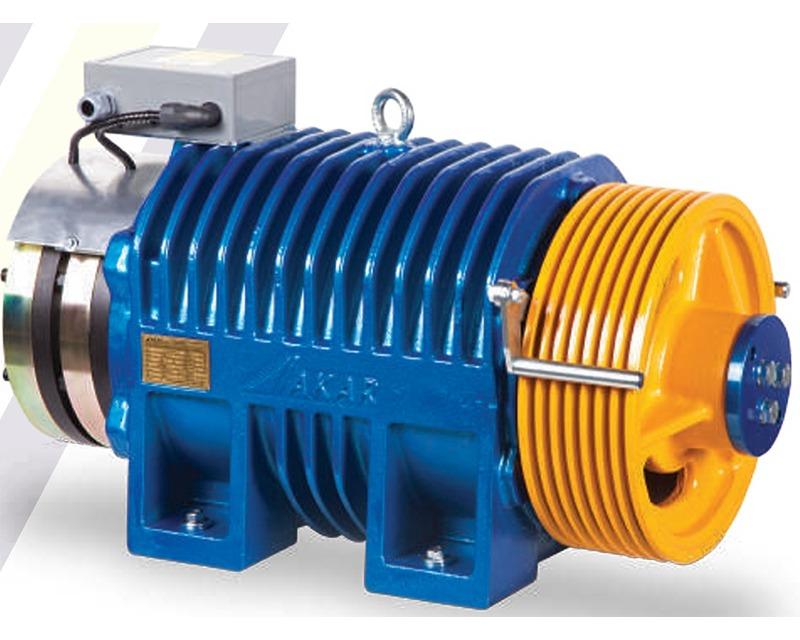

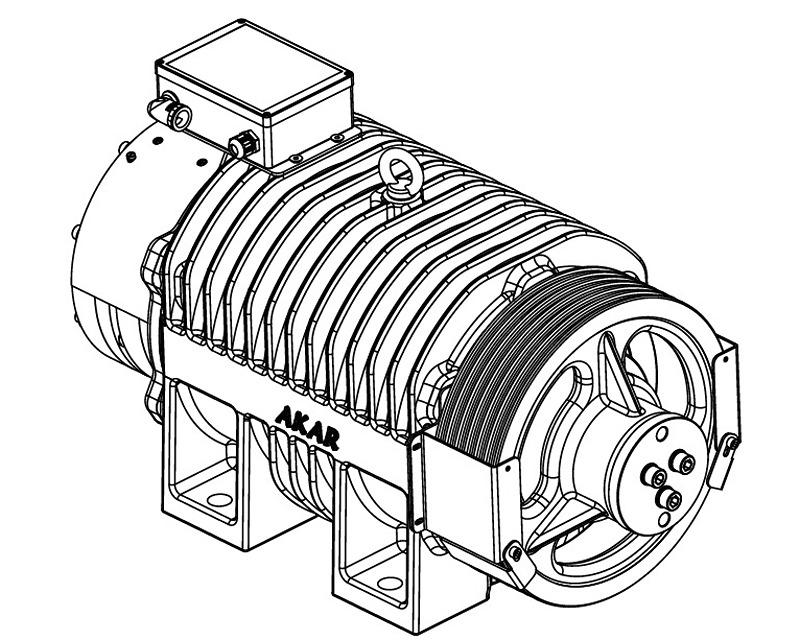

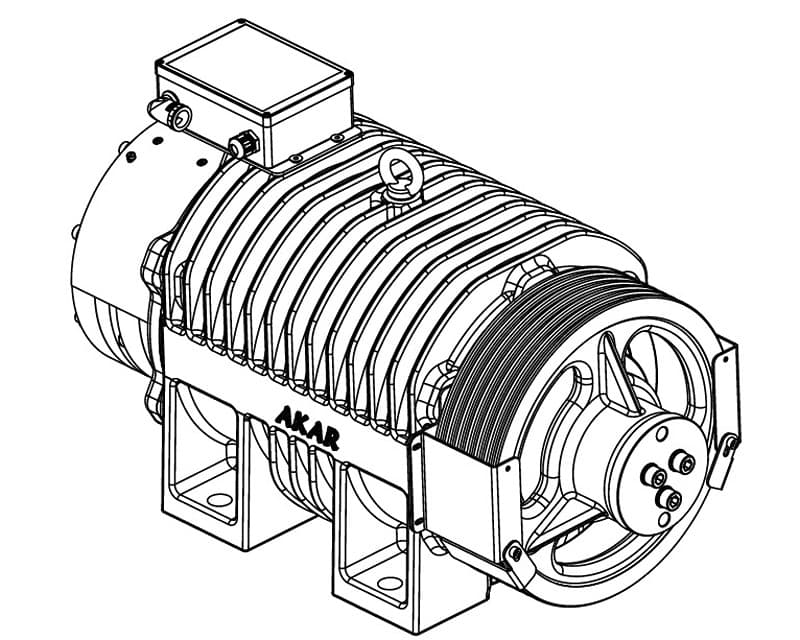

SMT Gearless Elevator Motor Speed: 2 m/s | Suspension: 2:1
2750.825
/Pcsمتوفر
Product Info:
Car Speed = 2 m/s | 2:1 Suspension
Load: 600-630 kg.

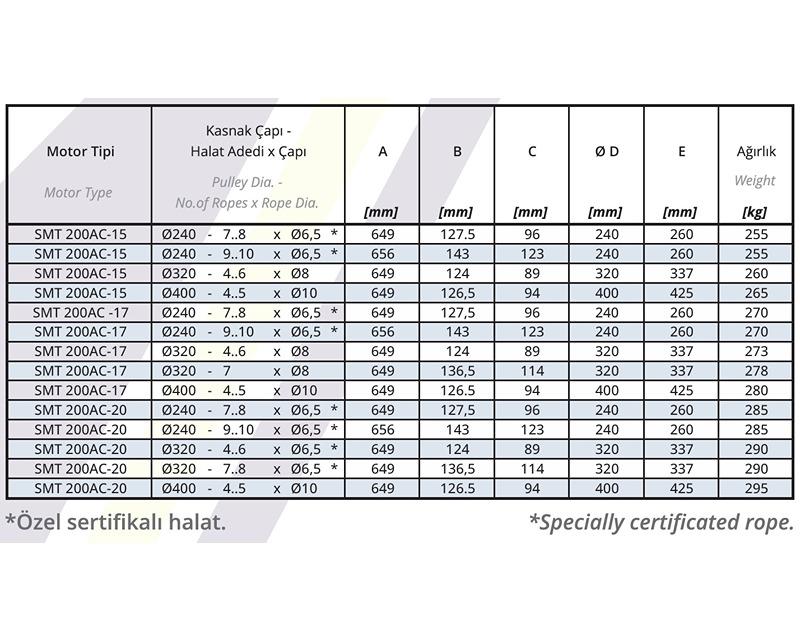

Motor Type:SMT 200AC-15

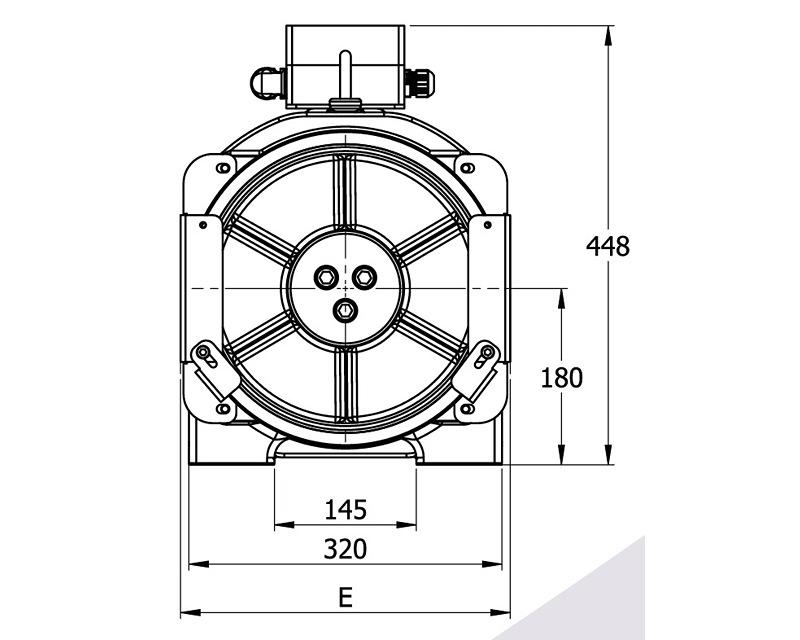

Pulley Diameter (mm): Ø320
No. of Ropes x Rope Diameter (mm): 5xØ8
Motor Power (kW): 11
Load Current (I-Ampere): 24
Maximum Static Load (kg): 3700
ADVANTAGES OF SMT 200AC
- Reaches the car speed of 2,5m/sec for 1:1 and 2:1 suspension.
- Compact design for both roomed and roomless applications of elevator systems.
- Maximum travelling comfort and minimum noise level in the cabin.
- 40% energy saving.
- Environment friendly since no oil is required.
AKAR® Electromagnetic Brake:
- Our brakes fulfill EN 81-20 and EN 81-50 Standards.
Brake Voltage: 198V DC
No of Poles: 20
Motor Voltage: 360V (Others Optional)
Frequency: 50Hz
