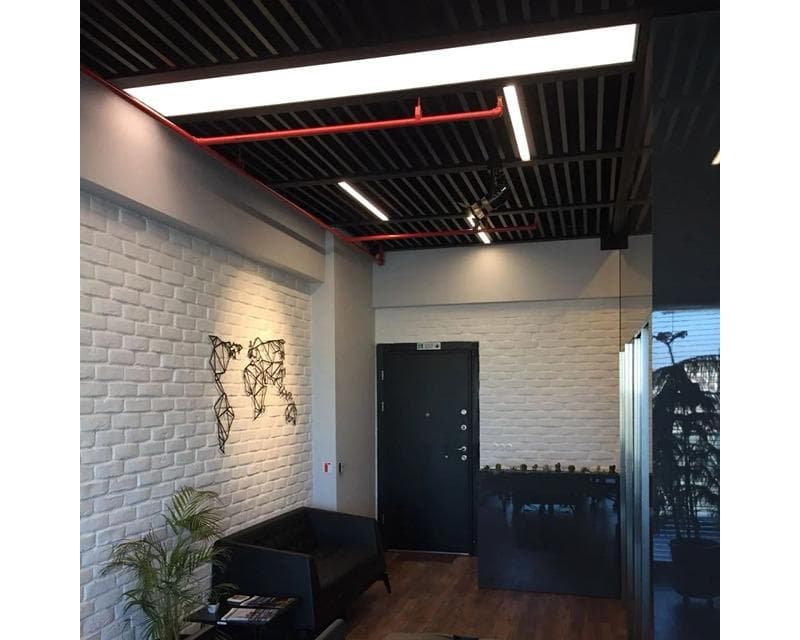

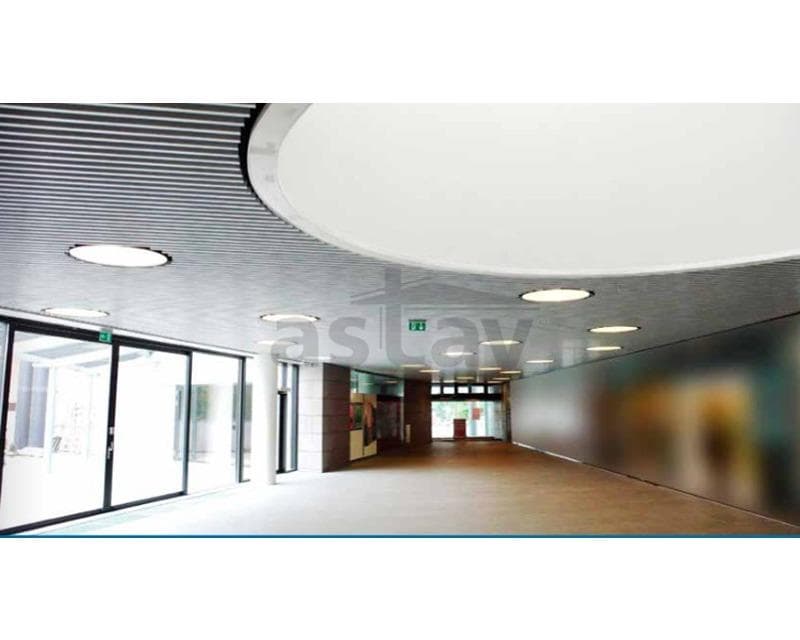

Baffle (Linear) Ceiling Systems
Metal Type: Aluminum or Galvanized Steel
Profile Size (mm): 25—75, 30—75, 40—75, 50—75, 25—100, 30—100, 40—100, 50—100
Color: Anthracite Gray (Ral 7016), Black (Ral 9005), Metallic Gray (Ral 9006), White (Ral 9010) and Wood Look
Inter-panel spacing: 50mm, 70mm, 100mm, 150mm or custom
Baffle Ceiling
- Features:
- Adds depth and infinity to the space, offering a dynamic and modern design.
- Allows for creative lighting fixture applications.
- Gaps between panels facilitate easy access to installations behind the ceiling.
- In case of fire, smoke passes quickly behind the ceiling.
- Panels with the claw carrier system can be easily removed and re-installed without damage.
- Produced in various profile sizes, RAL colors, and wood-like finishes.
- Panels are produced in desired lengths to avoid joints.
- Attached using either the claw carrier system or the screw system.
- Claw Carrier System: More economical and simpler for disassembly and assembly. Provides a fast and simple assembly process.
- Screw System: Alternative to the claw carrier system.
- Application Areas:
- Airports
- Train & metro stations
- Offices
- Shopping malls
- Corridors
- Fuel stations
- Shops
- Pools
- Restaurants
- Cafes
- Walls (in addition to ceilings)
- Installation:
- C-format panels are attached to the claw carrier or screw system.
- For wall use, the same claw carrier system is used.
- Baffle clamping clips are attached to the back of wall panels for fixing.
- In the disassembly process, remove the baffle clamping clip first before removing the panel.
