0.6/1 kV PVC Insulated Multi-core Cables Concentric Copper Conductor Screen
Code:YVC7V-U,YVC7V-R (TSE),NYCY (VDE)
Standarts:TS IEC 60502-1, VDE 0276
Construction:Copper conductor, PVC insulation,PVC filler,concentric copper conductor, PVC outer sheath
Application:In indoor installations, in cable ducts, outdoor and underground for power stations, industrial plants and switching station as well as local supply systems if increased protection is necessary.

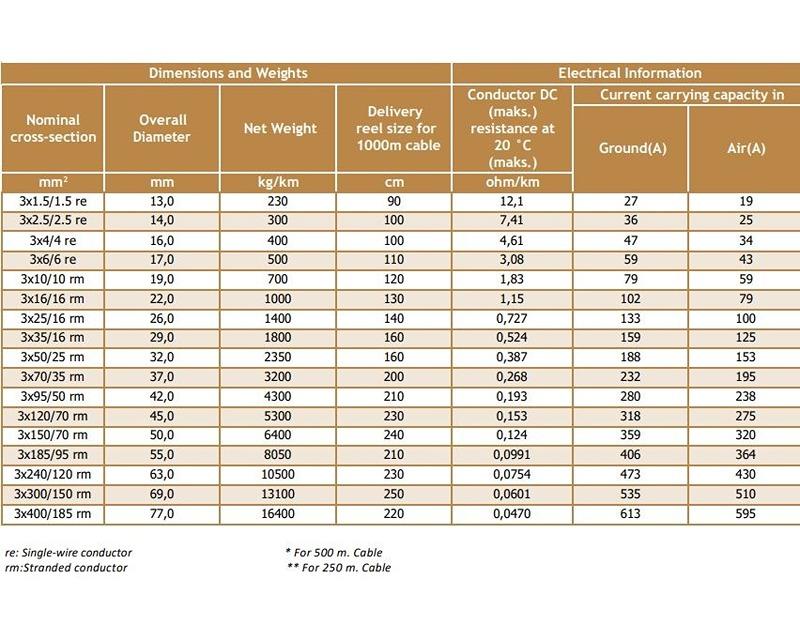

Technical Datas:Max. Operating temperature 70 °C,Max. Short circuit temperature <=300 mm² for 160 °C > 300 mm² for 140 °C,Min. Bending radius 12*D D:Cable outer diameter (mm)
PVC Granule Production and Technical information
Soft PVC is used in cable industry..Especially PVC has low temperature stability can easily remove the metalic surface when it is heated.PVC is widely used in cable industry because of its resistant for heavy weather condition,easy prossesing and better electrical properties.Some additional materials should be added in PVC production. Generally, below formulas uses in cable proses.
PVC FORMULATION
1- PVC Vinil chloride
2- Plastiphians
3- Stabilizator
4- Lubricant
5- Filling compound
6- Strenght modifier
7- Pigments
Flame retardant and sun shine resist material can also be used with above materials.Different type PVC granules can be produced by the changing the rate of the above materials in the granule according to the requirements of application field for final product.PVC granules are mainly used as 4 different types in the cable proses.
1- Insulation
2- Filler
3- Outer Sheath
4- PVC Outer Sheath for flexible cables
