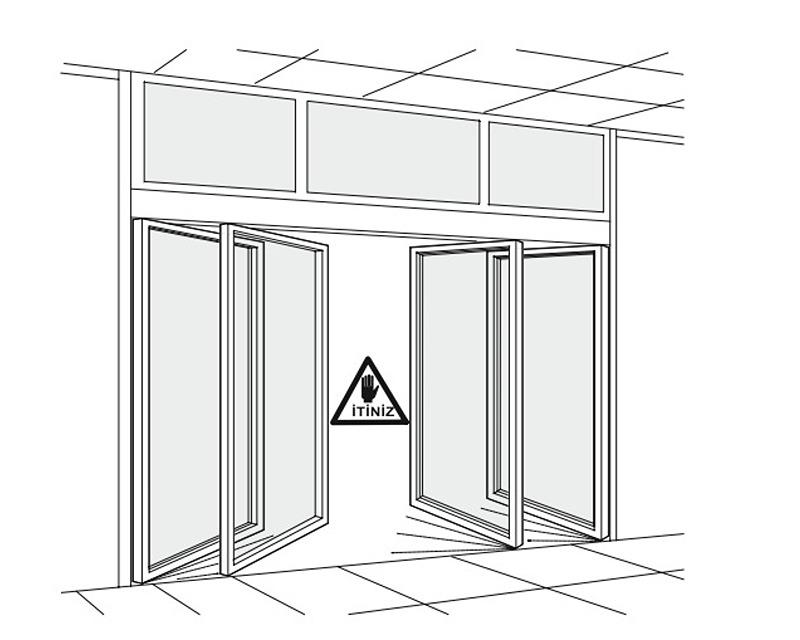

ANTI-PANIC BREAK-OUT System
It is used to gain more space and create a wider door space if the location is narrow.
In addition, maximum operation safety is achieved by continuous control of the closing force of the door system.

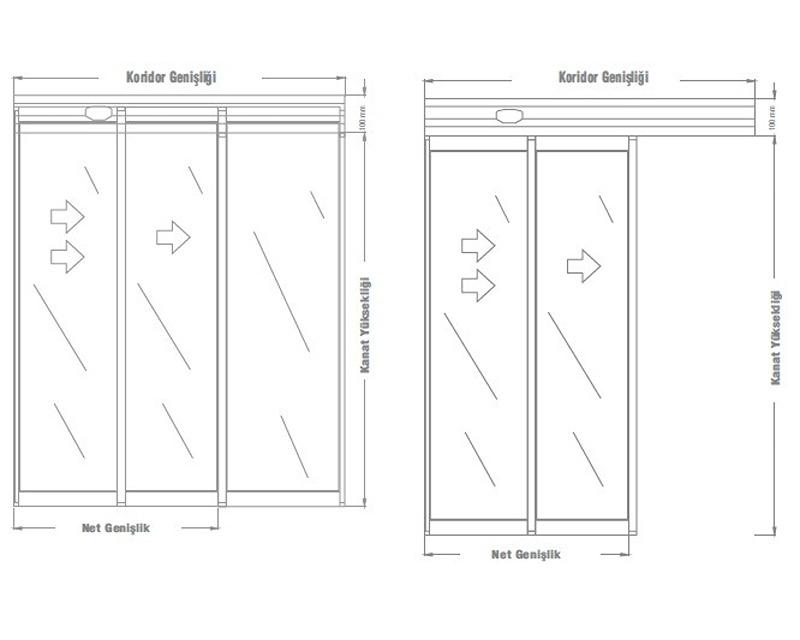

The TELESCOPIC 2 doors on one side are made up of 3 kanads.
One of them is the fixed wing (yada wall) and the other two wings are movable.
(With elevator doors as an example), two pieces of canapes sliding on each other in the same direction.
The SAP system is an essential accessory for the realisation of automated entrances fitted on safety exit passage ways.
The SAP system is a combin of components purposely designed to facilitate assembly on the aluminium or iron profiles that have to be used when realising automated sliding and semi-fixed leaves that open by breakout if pushed towards the escape route.
Four different types of kits can be supplied:SAP1 - for one sliding leaf.SAP 2 - for two sliding leaves.SAP 1+1 - for one sliding leaf and a semi-fixed leaf.SAP 2+2 - for two sliding leaves and two semi-fixed leaves.Every kit is supplied complete with the safety accessories provided by the current rules, such as photocells and/or magnetic icroswitches that are necessary to stop the operation of the automated system in the event of a breakout through the leaves.
GENERAL -Two Pieces There is a motor that is capable of opening millions of times with high torque. -The motors have the automatic reverse operation feature to prevent the wings from jamming. -With the encoder system, the position of the blades can be adjusted with the distance measuring system. -With the power-position and Accelerometer you can adjust the micro-processor door wing weight. -Carrier rail profile is carried on one rail -Parameter setting can be done easily with digital display and buttons on the microprocessor. -With the digital display on the digital control panel connected to the microprocessor, error codes can be seen and easy service is possible -Mechanism Height 100 mm, Depth 170 mm.

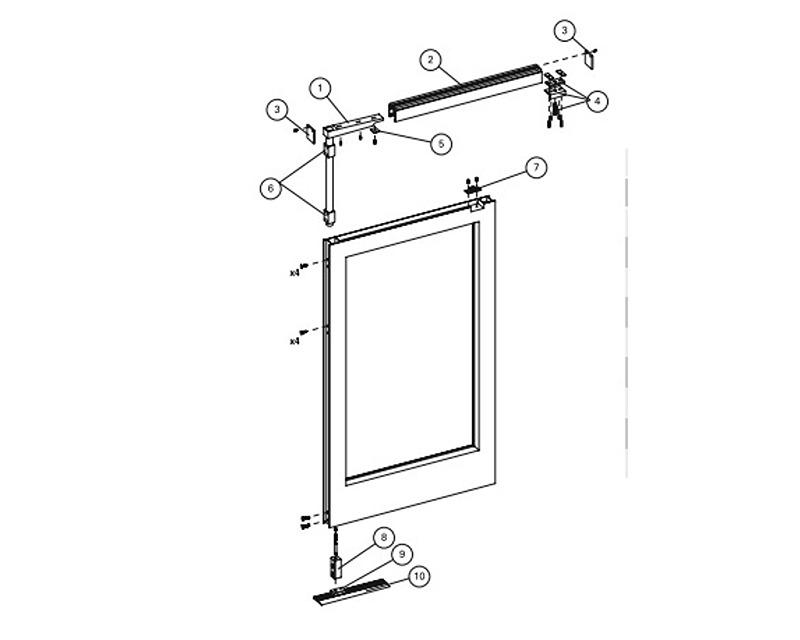

DESCRIPTION Anti Panic Hinge Top Profile Closing Plugs Mobile Leaf Anti Panic Release Unit Leaf Adjument Block Anti Panic Hinge Bush Hook On Block Slide Dupport Slide Sliding Guide
The SAP system is a combin of components purposely designed to facilitate assembly on the aluminium or iron profiles that have to be used when realising automated sliding and semi-fixed leaves that open by breakout if pushed towards the escape route.
Four different types of kits can be supplied:SAP1 - for one sliding leaf.SAP 2 - for two sliding leaves.SAP 1+1 - for one sliding leaf and a semi-fixed leaf.SAP 2+2 - for two sliding leaves and two semi-fixed leaves.Every kit is supplied complete with the safety accessories provided by the current rules, such as photocells and/or magnetic icroswitches that are necessary to stop the operation of the automated system in the event of a breakout through the leaves.
GENERAL -Two Pieces There is a motor that is capable of opening millions of times with high torque. -The motors have the automatic reverse operation feature to prevent the wings from jamming. -With the encoder system, the position of the blades can be adjusted with the distance measuring system. -With the power-position and Accelerometer you can adjust the micro-processor door wing weight. -Carrier rail profile is carried on one rail -Parameter setting can be done easily with digital display and buttons on the microprocessor. -With the digital display on the digital control panel connected to the microprocessor, error codes can be seen and easy service is possible -Mechanism Height 100 mm, Depth 170 mm.
DESCRIPTION Anti Panic Hinge Top Profile Closing Plugs Mobile Leaf Anti Panic Release Unit Leaf Adjument Block Anti Panic Hinge Bush Hook On Block Slide Dupport Slide Sliding Guide
