Bellow Systems

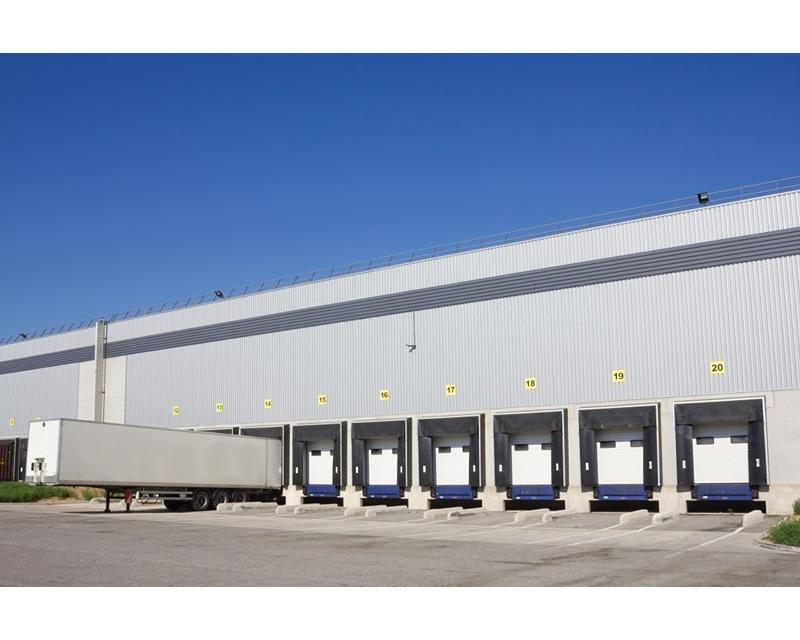

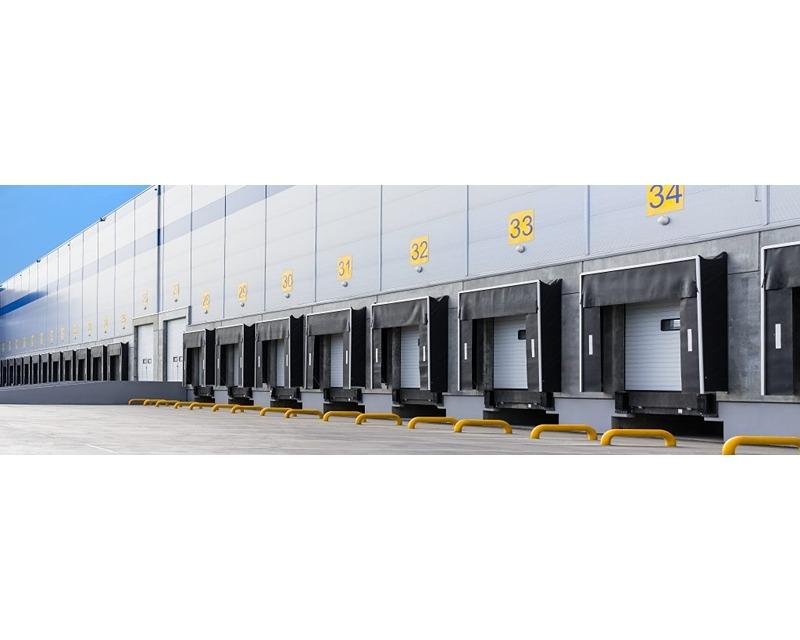

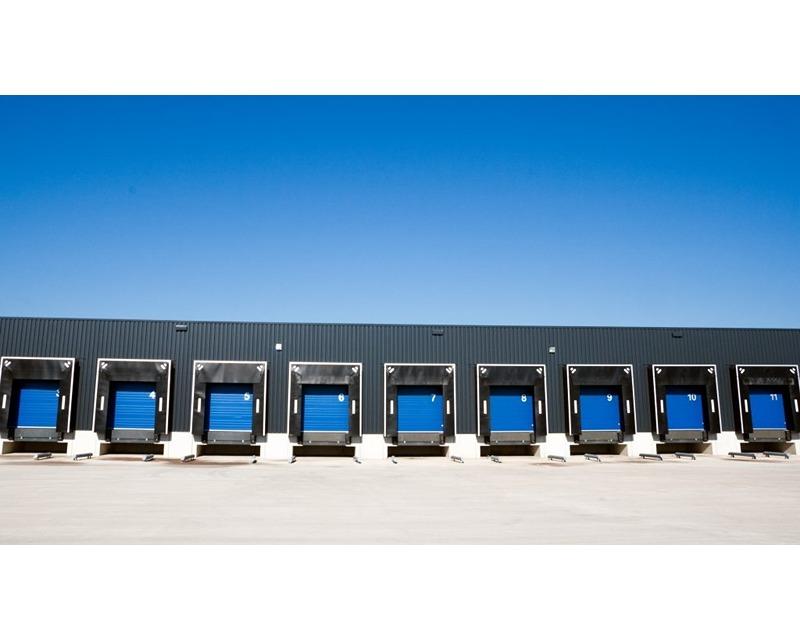

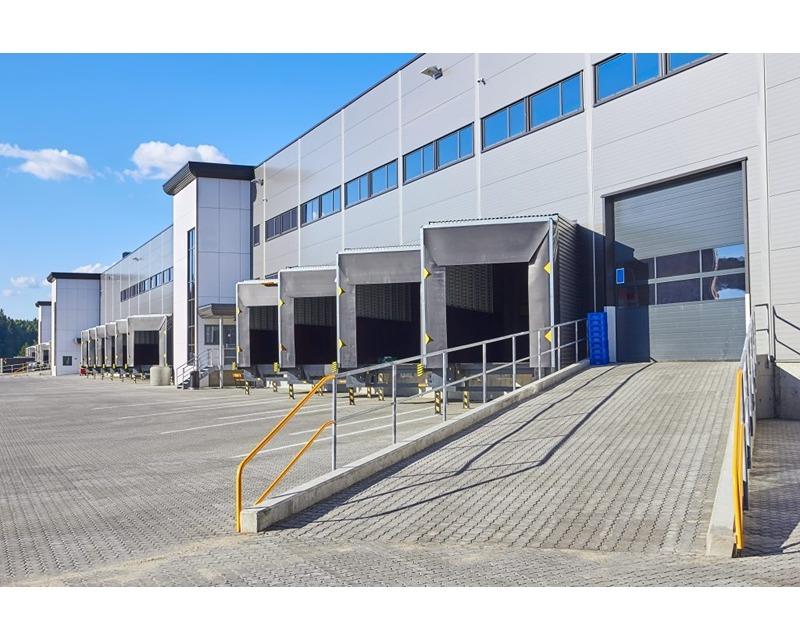

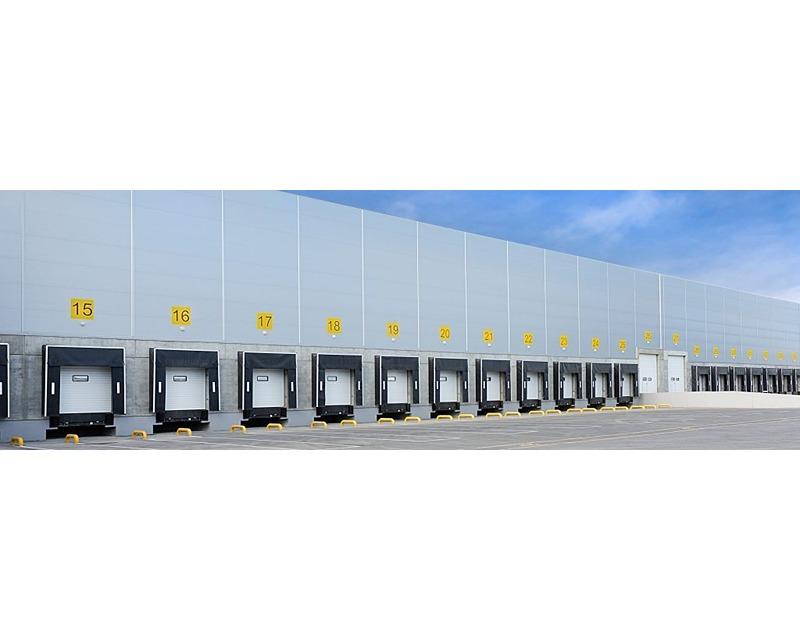

Loading bellows are systems used as shelters in facilities. It is an item that prevents energy losses that may occur during loading and protects your stock area from unwanted substances. It protects your stocks from unwanted substances such as rain, snow, wind and dust while your loads are being carried. With these bellows systems, it is extremely possible to increase both efficiency and quality. Especially thanks to this bellows system, you can have the chance to find a good solution for your sealing needs. Loading bellows, which are made of different materials and have different functions according to the structure of your own loading area and production materials, are prepared by our company Doortaş and presented to you in the shortest time. Thanks to these loading bellows, you can have the chance to easily perform loading or unloading operations in a very protected manner. Bellows carriers are hot dip galvanized. Bars are formed from 30x60 profiles in parallel and presented in this way. It appears as PVC canvas in these loading bellows. The top and lateral surfaces of the bellows are in light gray colors. Bellows front faces can be blue or black, this is optional. Bellows front faces are 3 mm thick. Bellows prepared by Doortaş have a system that will not deteriorate against sudden impacts. You can also get the chance to receive quality and professional loading bellows service to use in your facility. You can buy loading bellows as you wish for your own purpose.
SKU: EWA-TR-DOR-145-V2-7Loading bellows are generally used in logistics centers and warehouses. They are used in these places to break the relationship between the stock area and the unfavorable conditions of the outside environment. Thus, loading and unloading are made quite easy. Thanks to the flexible rubber sidewalls and scissor systems of these loading bellows, you can easily get the chance to load and unload very quickly. Especially in the textile, food sector or pharmaceutical sector, factors such as hygiene, heat and humidity are very important and it is necessary to protect these products from external factors in the best way. If you are looking for a suitable system for loading and unloading these sensitive products, you can maintain the best indoor conditions in these businesses with loading bellows.

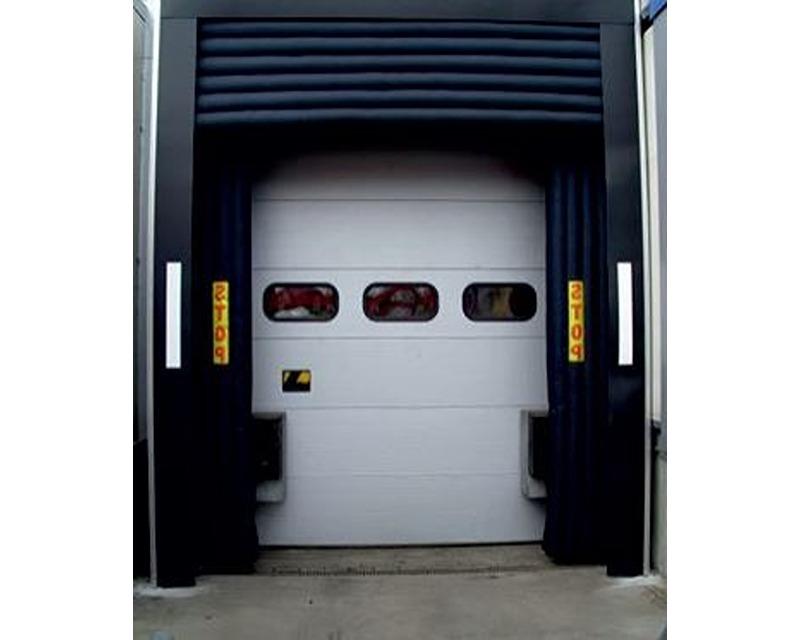

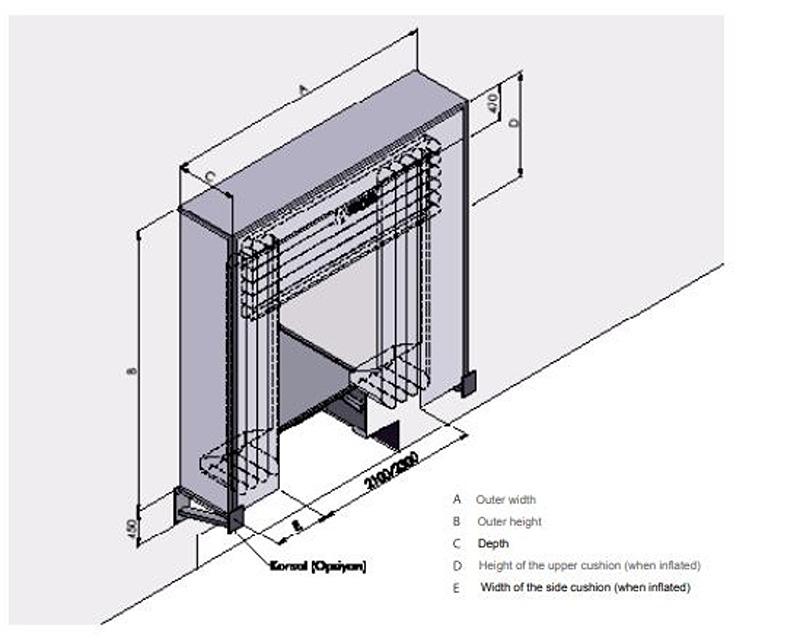

INFLATABLE LOADING BELLOWS:Inflatable door insulation PWI combines optimal insulation with general usability. The inflatable side and top cushions isolate the loading area to be nearly airtight. Therefore, this type is also very suitable for refrigerated houses and air-conditioned storage areas. Summer heat, winter cold, drafts, and insects cannot infiltrate the storage area. The result is significant energy savings and reduced illness among warehouse personnel. Additionally, it is not possible to enter and exit the storage area unnoticed. The front and rear frames of PROM-Stahl door insulation are made of high-strength aluminum extrusion profiles.
The side frame is quite sturdy and is made of 40mm thick insulation panels. The inflatable top and side cushions automatically adapt to the dimensions of the truck. This makes it possible to effectively isolate trucks of different sizes at loading points. These advantages make the door insulation a good investment that quickly pays for itself. The door insulation is delivered as three pre-assembled pieces, allowing for easy attachment to the facade with minimal effort. The benefits of this structure include significant savings in both money and time.

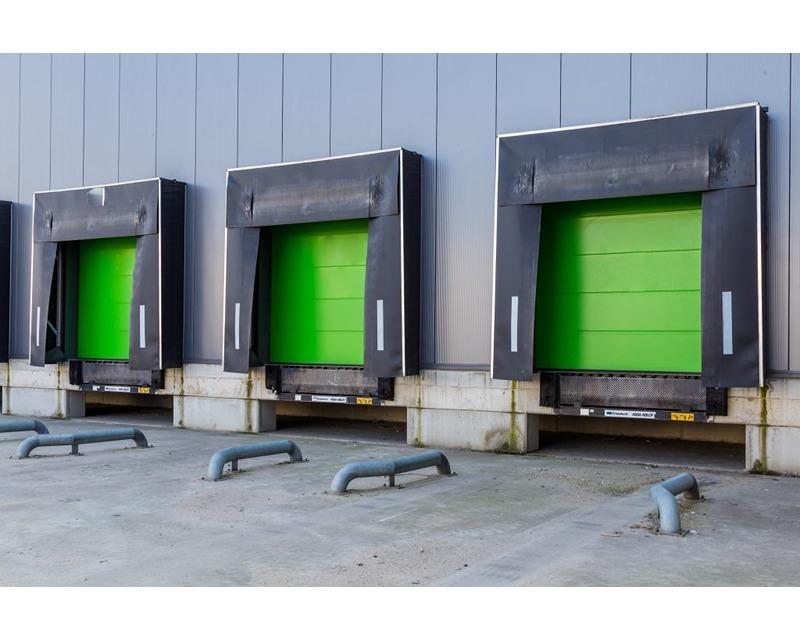

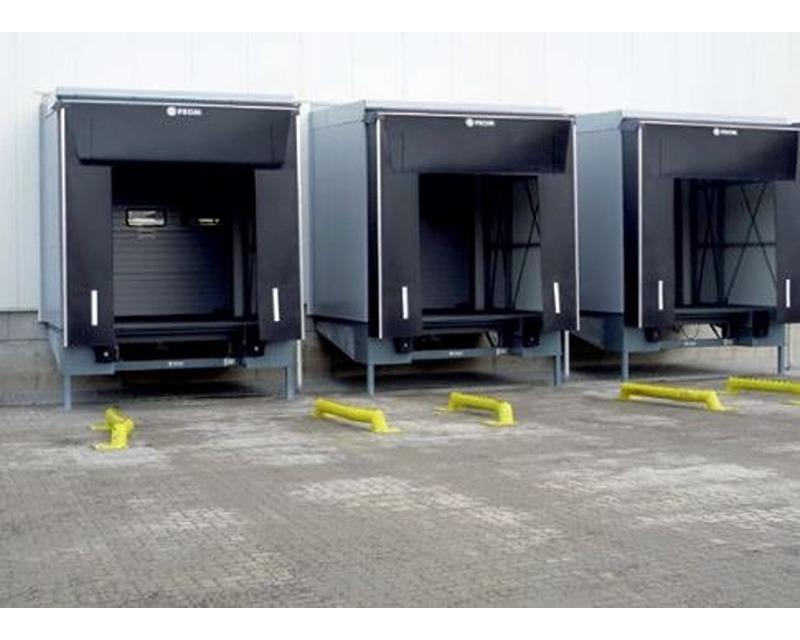

MECHANICAL LOADING DOCK BELLOW:Due to the different dimensions of the loading and unloading areas of the warehouse and truck, gaps occur that must be effectively insulated due to the increasing energy costs. The front and rear frames of PROM-Stahl's door insulation are made of high-strength aluminum extrusion profiles connected by hinge arms. A highly durable 3 mm thick PVC tarpaulin is mounted on the flexible frame. Thanks to the lifting roof and parallel rotation system, the front structure is pulled up or back in the event of incorrect docking of vehicles, thus preventing damage to the door insulation even with misaligned trucks.Visual strips have been placed on the front of the door insulation to facilitate alignment during docking. Rainwater is directed away from the sides through an integrated rain gutter. The standard model features an additional tear in the upper tarpaulin. The upper tarpaulin can also be supplied in a partially or fully louvered model for an additional cost. The door insulation is delivered as three pre-assembled parts, allowing for easy attachment to the facade. The advantages of this design are significant savings in both time and money.
INFLATABLE LOADING BELLOWS:Inflatable door insulation PWI combines optimal insulation with general usability. The inflatable side and top cushions isolate the loading area to be nearly airtight. Therefore, this type is also very suitable for refrigerated houses and air-conditioned storage areas. Summer heat, winter cold, drafts, and insects cannot infiltrate the storage area. The result is significant energy savings and reduced illness among warehouse personnel. Additionally, it is not possible to enter and exit the storage area unnoticed. The front and rear frames of PROM-Stahl door insulation are made of high-strength aluminum extrusion profiles.
The side frame is quite sturdy and is made of 40mm thick insulation panels. The inflatable top and side cushions automatically adapt to the dimensions of the truck. This makes it possible to effectively isolate trucks of different sizes at loading points. These advantages make the door insulation a good investment that quickly pays for itself. The door insulation is delivered as three pre-assembled pieces, allowing for easy attachment to the facade with minimal effort. The benefits of this structure include significant savings in both money and time.
MECHANICAL LOADING DOCK BELLOW:Due to the different dimensions of the loading and unloading areas of the warehouse and truck, gaps occur that must be effectively insulated due to the increasing energy costs. The front and rear frames of PROM-Stahl's door insulation are made of high-strength aluminum extrusion profiles connected by hinge arms. A highly durable 3 mm thick PVC tarpaulin is mounted on the flexible frame. Thanks to the lifting roof and parallel rotation system, the front structure is pulled up or back in the event of incorrect docking of vehicles, thus preventing damage to the door insulation even with misaligned trucks.Visual strips have been placed on the front of the door insulation to facilitate alignment during docking. Rainwater is directed away from the sides through an integrated rain gutter. The standard model features an additional tear in the upper tarpaulin. The upper tarpaulin can also be supplied in a partially or fully louvered model for an additional cost. The door insulation is delivered as three pre-assembled parts, allowing for easy attachment to the facade. The advantages of this design are significant savings in both time and money.
