CRAFTER 5 AXIS CNC MACHINING CENTER
The manufacturing time for the machines is 3-4 months.
The machines come with a 2-year warranty.
The dimensions of 2128 are 210*280, while those of 2137 are 210*370.
PRECISE
RIGID & FLEXIBLE
HASSAS, RİJİT, ESNEK: It offers a precise production solution by combining a fixed body, a mobile gantry,
a 2-axis interpolarized spindle motor (5 axes in total) and a user-friendly interface.
CRAFTER is the correct way to create unique designs.
SMART SOLUTION FOR 5 AXIS MACHINING PROCESS:CRAFTER is with you in your 3D – 5 Axis machining with its strong body, technological equipment and C and A axis with endless rotation. With Cardanic Kinematics”, it provides convenience for you in your 5 axis machinings up to 100° degrees on the A axis and endless on the C axis.

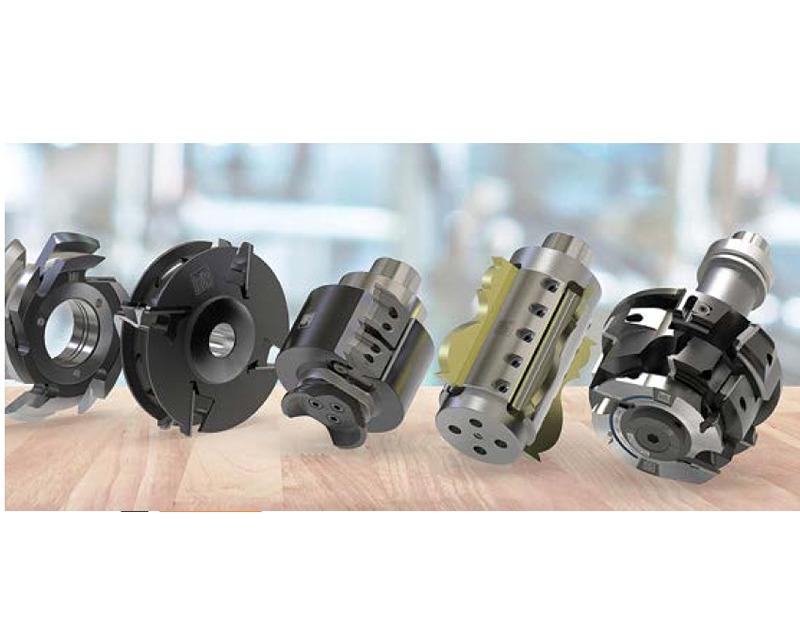

DIFFERENT NEEDS VARIOUS CHOISE:Customisable tools for different needs.

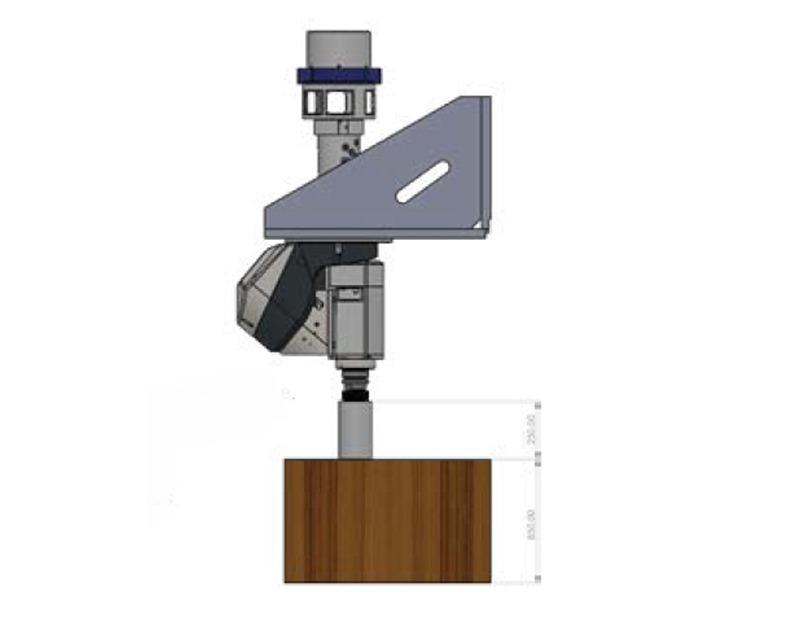

HIGH STROKE:Machining parts up to 850 mm with increased stroke in the vertical axis.

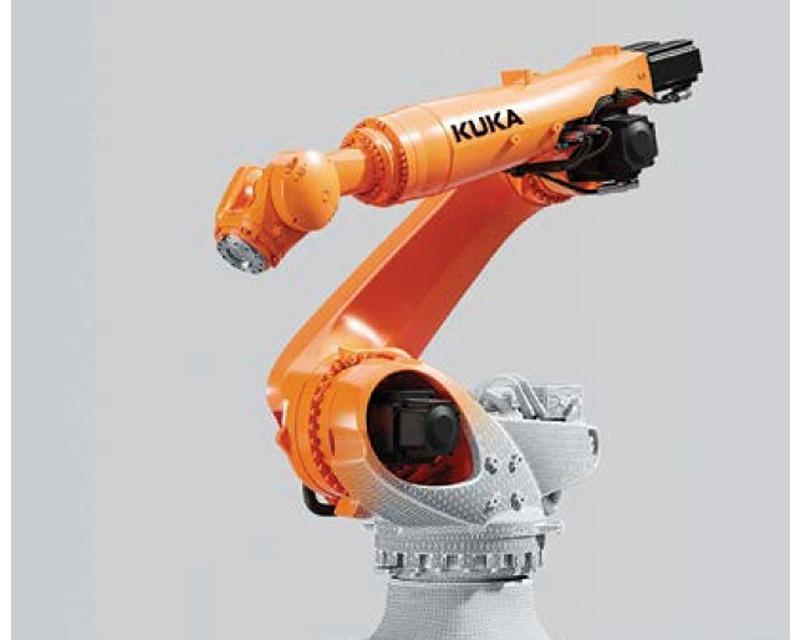

ROBOTIC AUTOMATION:To reduce the work force optional robotic integration.
SOPHISTICATED PROBLEM SOLVING CAPABILITY:OEMAK CRAFTER MGR is a flexible 5-axis CNC machining center with 2 independent flat tables (demounted vacuum consoles are optional). This model is ideal for creating musical instruments, chairs, stairs, tables etc. Also it is more then capable of creating moulds for various projects too.

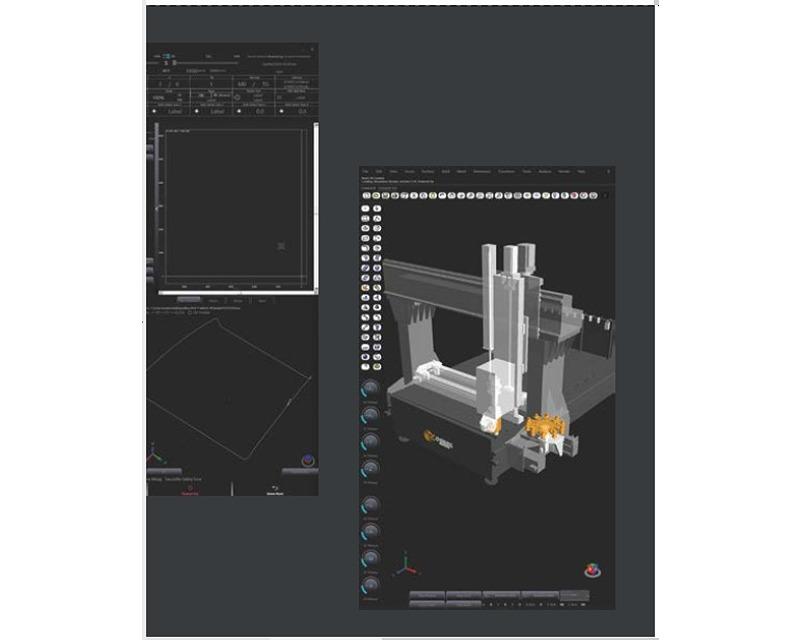

USER FRIENDLY INTERFACE:CRAFTER is controlled by the interface developed by Oemak engineers and the new generation PC Based CNC Control Unit. NumCAM 2D has written by OEMAK Engineers to provide support in entry-level jobs.
SMART SOLUTION FOR 5 AXIS MACHINING PROCESS:CRAFTER is with you in your 3D – 5 Axis machining with its strong body, technological equipment and C and A axis with endless rotation. With Cardanic Kinematics”, it provides convenience for you in your 5 axis machinings up to 100° degrees on the A axis and endless on the C axis.
DIFFERENT NEEDS VARIOUS CHOISE:Customisable tools for different needs.
HIGH STROKE:Machining parts up to 850 mm with increased stroke in the vertical axis.
ROBOTIC AUTOMATION:To reduce the work force optional robotic integration.
SOPHISTICATED PROBLEM SOLVING CAPABILITY:OEMAK CRAFTER MGR is a flexible 5-axis CNC machining center with 2 independent flat tables (demounted vacuum consoles are optional). This model is ideal for creating musical instruments, chairs, stairs, tables etc. Also it is more then capable of creating moulds for various projects too.
USER FRIENDLY INTERFACE:CRAFTER is controlled by the interface developed by Oemak engineers and the new generation PC Based CNC Control Unit. NumCAM 2D has written by OEMAK Engineers to provide support in entry-level jobs.
