Electric Combi Boilers with External Hot Water Tank Connection
External boiler usage occurs for systems where water amount that is obtained from electric boilers is not enough.

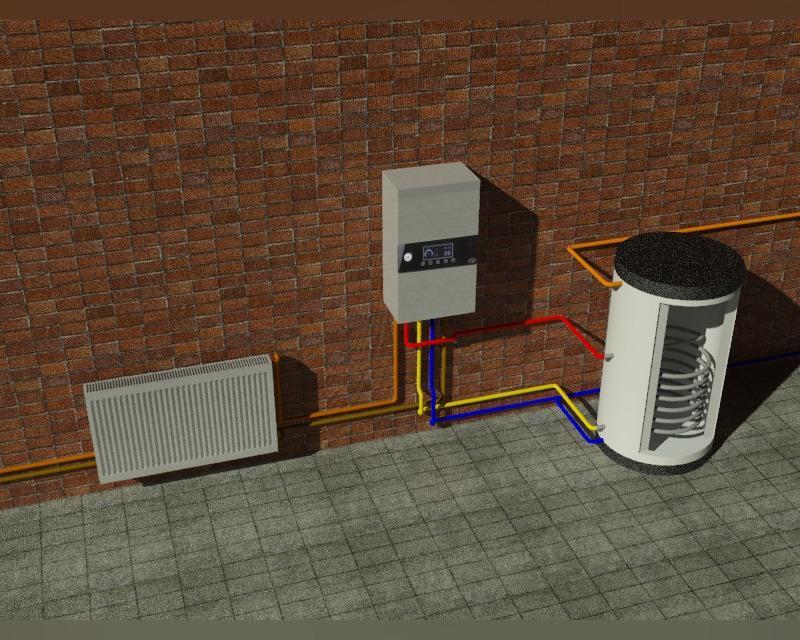

While external boiler is used, it is provided to transfer hot water for both heating systems of electrical boiler and external boiler by installing 3 way valves to installment of electric boiler.
In such cases, although boiler temperature is controlled with temperature thermostat, in summer months (for conditions when heating system not used), it is needed to close valve on the system.
On the other hand, boiler temperature is not controlled from boiler device panel, it has to control from thermostat which is installed to boiler.
At our DAXOM electrical boiler adaption with external tank which will increase comfort of use, because of three-way valve group are inside the device, it makes possible to control boiler temperature of device from device panel and seasonal options (summer €“ winter).

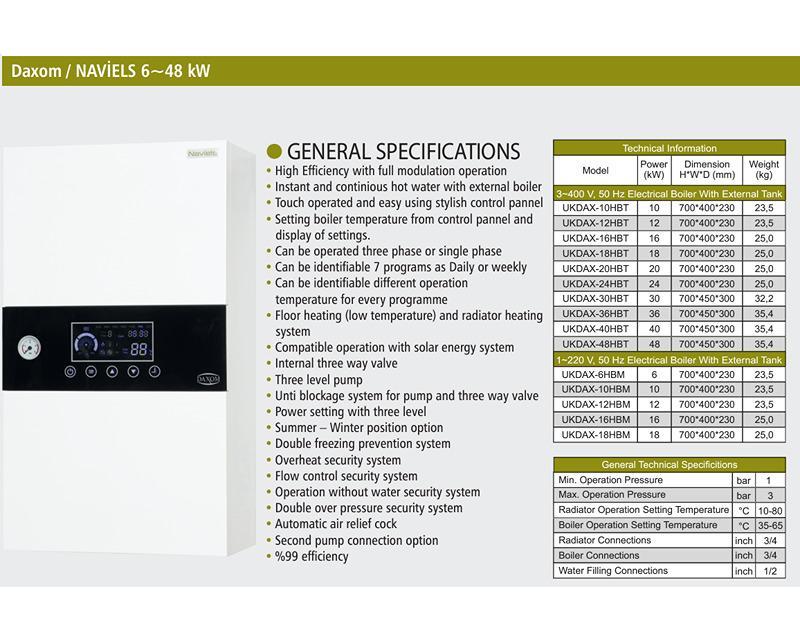

General Specifications
High Efficiency with Full Modulation Operation
Instant and Continious Hot Water with External Boiler
Touch Operated and Easy Using Stylish Control Pannel
Setting Boiler Temperature From Control Pannel and Display of Settings
Can Be Operated Three Phase or Single Phase
Can Be identifiable 7 Programs as Daily or Weekly
Can Be identifiable Different Operation
Temperature For Every Programme
Floor Heating (Low Temperature) and Radiator Heating System
Compatible Operation with Solar Energy System
Internal Three Way Valve
Three Level Pump
Unti Blockage System for Pump and Three Way Valve
Power Setting with Three Level
Summer €“ Winter Position Option
Double Freezing Prevention System
Overheat Security System
Flow Control Security System
Operation Without Water Security System
Double Over Pressure Security System
Automatic Air Relief Cock
Second Pump Connection Option
%99 Efficiency
