Garage Doors Automations System
RAIL ASSEMBLY MODELS:
PTCI.3 :The single-piece rail assembly can be used seamlessly up to a door height of 2350 mm. Thanks to its belt-driven design, it operates quietly and won't disturb you.
PTC.3:The two-piece rail assembly can be used seamlessly up to a door height of 2350 mm. Its belt-driven design ensures quiet operation, so it won’t disturb you. Each piece measures 1.5 meters.
PTCL.4:The two-piece rail assembly can be used seamlessly up to a door height of 3350 mm. Its belt-driven design ensures quiet operation, so it won’t disturb you. Each piece measures 2 meters.
Technical Specifications for JM.3 and JM.4:
Operating Voltage:
JM.3: 24 Vdc
JM.4: 24 Vdc
Maximum Current:
JM.3: 0.7 A
JM.4: 1.5 A
Motor Power:
JM.3: 600 N
JM.4: 1200 N
Lowering Speed:
JM.3: 8.9 m/min
JM.4: 8.9 m/min
Operating Frequency:
JM.3: Suitable for intensive use
JM.4: Suitable for intensive use
Limit Switch:
JM.3: Encoder, electronic
JM.4: Encoder, electronic
Maximum Lifting Area:
JM.3: 12 square meters
JM.4: 15 square meters
Operating Temperature Range:
JM.3: -20 to +50 °C
JM.4: -20 to +50 °C
Rated Power:
JM.3: 140 W
JM.4: 220 W
Compatible Rail Models:
JM.3: PTC.3/PTC.I.3/PTC.L.4
JM.4: PTC.3/PTC.I.3/PTC.L.4
Free Release Type:
JM.3: Rope
JM.4: Rope
IP Protection Rating:
JM.3: IP 40
JM.4: IP 40

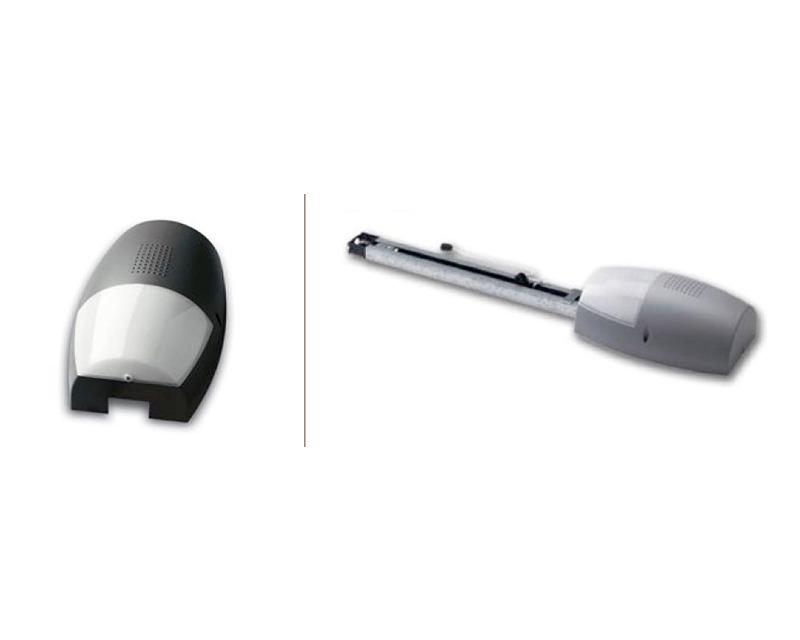

echnical Specifications for BOTTICELLI and EOS 120: Max. Point Load Capacity: BOTTICELLI: 60 kg EOS 120: 120 kg Control Unit: BOTTICELLI: VENERE D (included) EOS 120: VENERE D (included) Lock/Unlock Function: BOTTICELLI: Unlockable EOS 120: Unlockable Input Voltage: BOTTICELLI: 230V~, ±10%, 50 Hz, Single Phase EOS 120: 230V~, ±10%, 50 Hz, Single Phase Operating Voltage: BOTTICELLI: 24V EOS 120: 24V Average Power Consumption: BOTTICELLI: 240 W EOS 120: 240 W Maximum Point Force: BOTTICELLI: 800 N EOS 120: 1200 N Operating Speed: BOTTICELLI: 5 m/min EOS 120: 5 m/min Impact Resistance Effect: BOTTICELLI: Controlled by the control unit with electronic torque setting EOS 120: Controlled by the control unit with electronic torque setting Limit Switch Model: BOTTICELLI: Encoder type EOS 120: Encoder type Free Release Type: BOTTICELLI: With rope EOS 120: With rope Operating Frequency: BOTTICELLI: Suitable for intensive use EOS 120: Not suitable for intensive use Operating Temperature Range: BOTTICELLI: Between -15°C and +60°C EOS 120: Between -15°C and +60°C Protection Rating: BOTTICELLI: IPX0 EOS 120: IPX0 Mechanism Weight: BOTTICELLI: 50 N (~5 kg) EOS 120: 80 N (~8 kg)

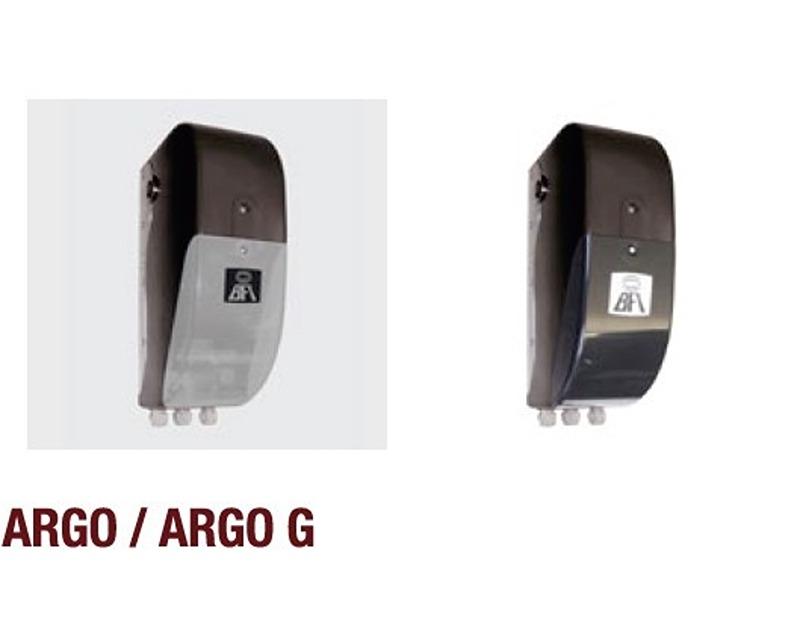

ARGO / ARGO G Control Unit: VENERE D (Included) Operating Parameters: Locked/Unlocked Operation: Locked Operating Voltage: 230 V ± 10% 50 Hz single phase Average Power Consumption: 70 W Maximum Lifting Time: 20 m²/35 m² Maximum Shaft Speed: 30 RPM/18 RPM Impact Resistance: Electronic torque limiting with the control unit Limit Switch Model: Encoder Free Release: With RCA Usage Frequency: Very Frequent use Operating Temperature: -20°C to +55°C Protection Rating: IPX0 Mechanism Weight: 100 N (-10 kg)
echnical Specifications for BOTTICELLI and EOS 120: Max. Point Load Capacity: BOTTICELLI: 60 kg EOS 120: 120 kg Control Unit: BOTTICELLI: VENERE D (included) EOS 120: VENERE D (included) Lock/Unlock Function: BOTTICELLI: Unlockable EOS 120: Unlockable Input Voltage: BOTTICELLI: 230V~, ±10%, 50 Hz, Single Phase EOS 120: 230V~, ±10%, 50 Hz, Single Phase Operating Voltage: BOTTICELLI: 24V EOS 120: 24V Average Power Consumption: BOTTICELLI: 240 W EOS 120: 240 W Maximum Point Force: BOTTICELLI: 800 N EOS 120: 1200 N Operating Speed: BOTTICELLI: 5 m/min EOS 120: 5 m/min Impact Resistance Effect: BOTTICELLI: Controlled by the control unit with electronic torque setting EOS 120: Controlled by the control unit with electronic torque setting Limit Switch Model: BOTTICELLI: Encoder type EOS 120: Encoder type Free Release Type: BOTTICELLI: With rope EOS 120: With rope Operating Frequency: BOTTICELLI: Suitable for intensive use EOS 120: Not suitable for intensive use Operating Temperature Range: BOTTICELLI: Between -15°C and +60°C EOS 120: Between -15°C and +60°C Protection Rating: BOTTICELLI: IPX0 EOS 120: IPX0 Mechanism Weight: BOTTICELLI: 50 N (~5 kg) EOS 120: 80 N (~8 kg)
ARGO / ARGO G Control Unit: VENERE D (Included) Operating Parameters: Locked/Unlocked Operation: Locked Operating Voltage: 230 V ± 10% 50 Hz single phase Average Power Consumption: 70 W Maximum Lifting Time: 20 m²/35 m² Maximum Shaft Speed: 30 RPM/18 RPM Impact Resistance: Electronic torque limiting with the control unit Limit Switch Model: Encoder Free Release: With RCA Usage Frequency: Very Frequent use Operating Temperature: -20°C to +55°C Protection Rating: IPX0 Mechanism Weight: 100 N (-10 kg)
