MITRON-MR1 Radar Door
Radial motion sensor for automatic doors The MITRON-MR1 is mounted in a small, aesthetic housing, Easy-to-use radial motion sensor.
The MITRON-MR1 is reliable in many applications.The MITRON-MR1 ensures optimal human passivation by optimally activating automatic sliding doors.

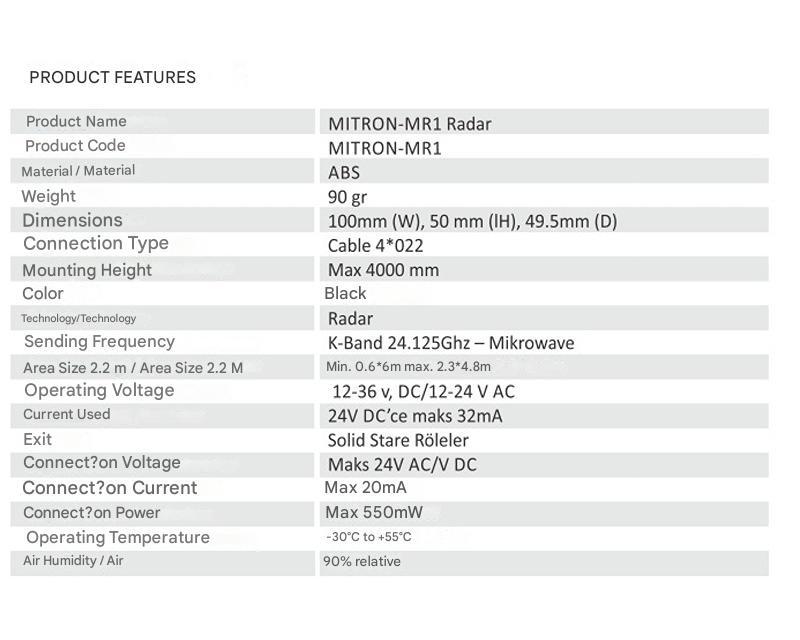

Materyal:ABS
Weight:90 gr

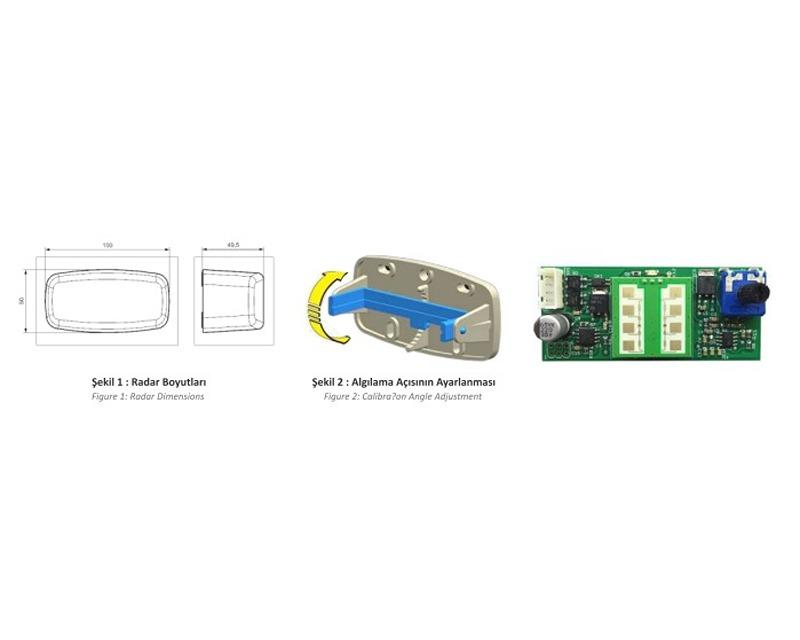

Dimensions:100mm (W), 50 mm (IH), 49.5mm (D)
Connection Type:Cable 4*022
Mounting Height:Max 4000 mm
Color:Black
Technology:Radar
Sending Frequency:K-Band 24.125Ghz - Mikrowave
Area Size 2.2 m:Min. 0.6 * 6 m max. 2.3*4.8m
Operating Voltage:12-36 V, DC/12-24 V AC
Current Used:24V DC'ce maks 32mA
Exit:Solid Stare Roleler
Connect Voltage:Maks 24V AC/V DC
Connect?on Current:Max 20mA
Connect?on Power:Max 550 mW
Working Temperature:-30°C and +55°C
Hava Nemi / Air:90% relative
