Pimapen Nirvana Window and Door Systems add value to your living spaces by offering a wide field of view along with superior sound and heat insulation features.

Profile

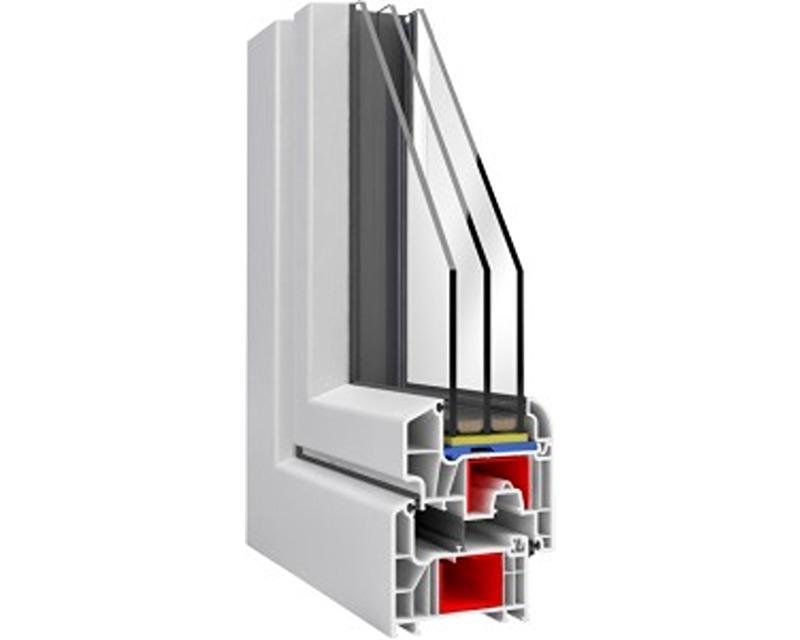

• Width: Main profiles are 80 mm wide.
• Chambers: 6-chamber profiles.
• Seals: Non-staining elastic seals in grey-black provide air, water, sound, and dust insulation, as well as heat and sound insulation. The triple seal system (inner, outer, and middle seals) protects equipment against corrosion and ensures longevity.

Design

• Sash Profile: Features a self-drip and aesthetic appearance.
• Glass Area: Optimized PVC door profile height enlarges the glass area, creating spacious spaces without compromising your view.
• Aesthetic Details: Specially designed slats provide aesthetic PVC profile glass joints. The self-sill case offers visual integrity on the inner surface and joinery-wall joints.

Glass Combinations

• Thicknesses: Allows the use of double glass, triple glass, and panels in widths of 24-30-36-44-52 mm.
• Heat Transmittance: Profiles have a low heat transmittance value (Uf = 0.95 W/m²K). It supports the use of 44 mm triple glass units (Ug = 0.6-0.7 W/m²K). The heat transmittance value for windows with this type of glass is Uw = 0.78 W/m²K (calculated value).

Hardware

• Security: Provides high security with glass combinations up to 52 mm. Enhanced security window and door systems can be applied with alternative hardware products.
• Functionality: Offers functional use with different opening types.

Additional Features

• Insulation: High performance in heat and sound insulation with 6-chamber profiles.
• Durability: Non-staining elastic seals offer high-level air, water, sound, and dust insulation.
• Facade Series: Designed for high resistance to wind loads in high-rise buildings.

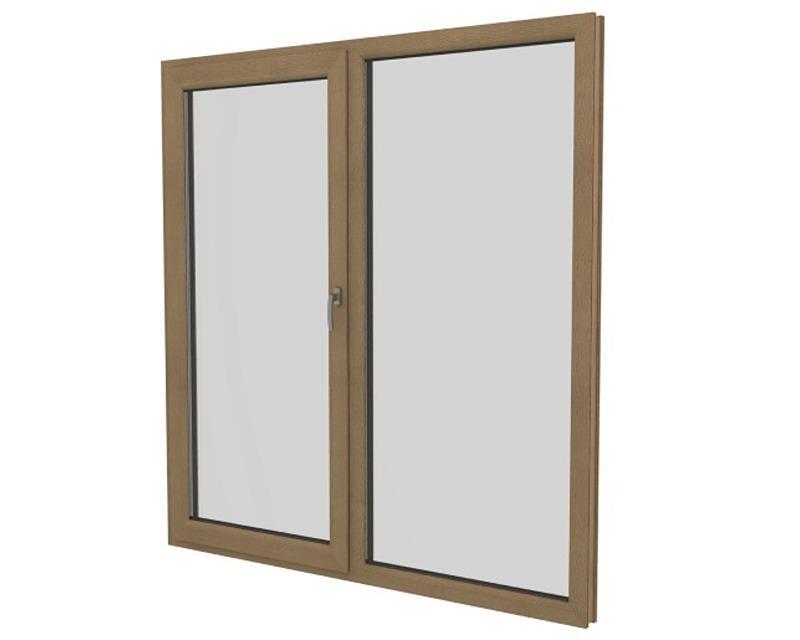

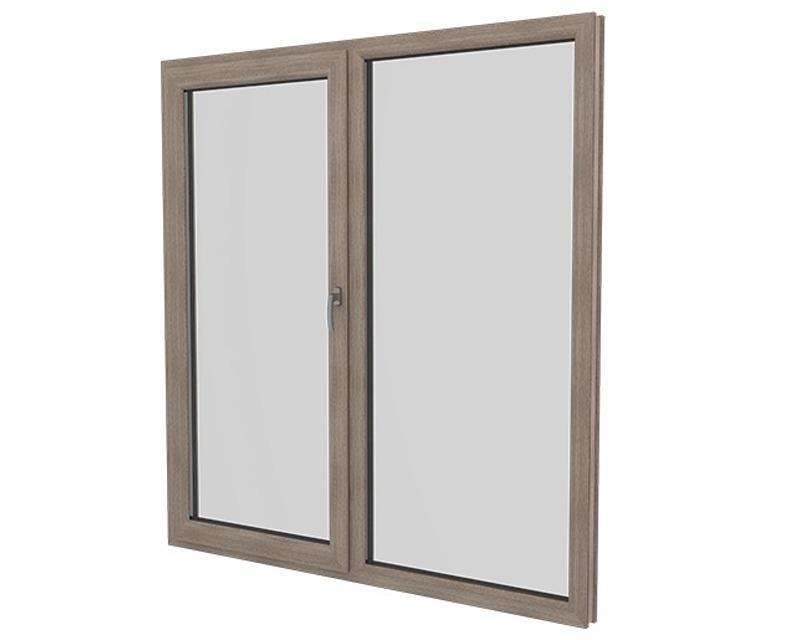

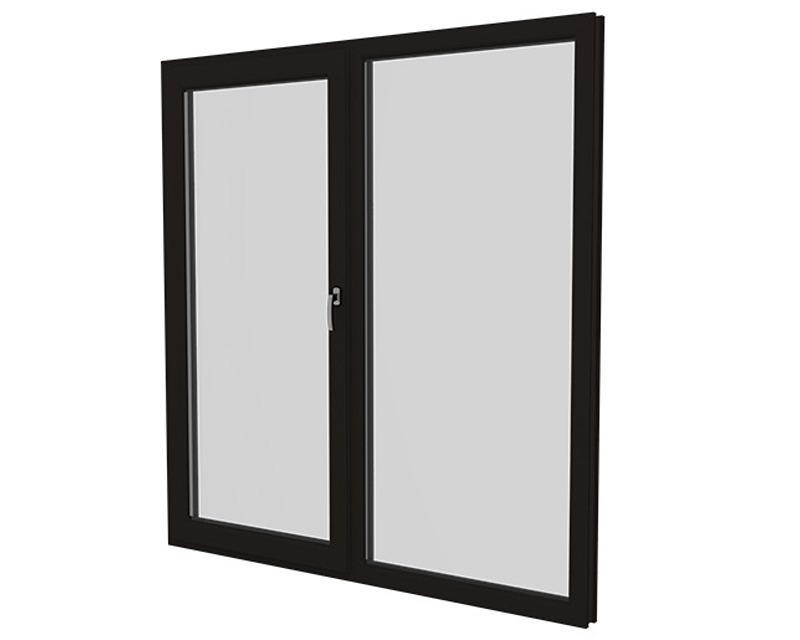

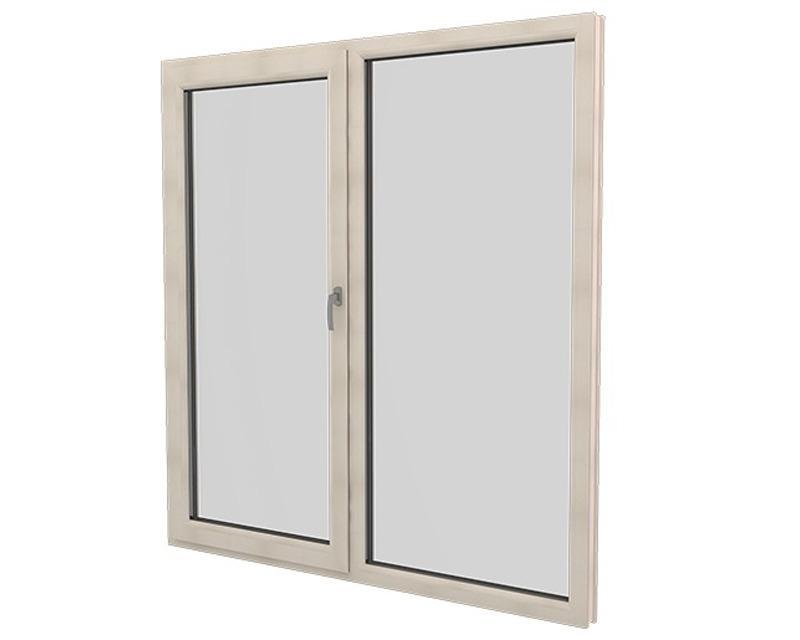

• Colors: Available in 13 different laminated colors and patterns in addition to white, with options for different interior and exterior finishes.
• Design Integrity: Special slats and self-silled frames provide visual and aesthetic benefits.

Pimapen Nirvana ensures your living spaces stay comfortable and visually appealing, keeping the chaos of the outside world at bay.
