In environments with high entry and exit traffic, such as shopping malls, it will be your solution partner with high opening speed and performance. The mechanism allows the door leaves to be pushed open in the direction of exit in emergencies, ensuring the building is evacuated quickly and safely.
SIMPLE ASSEMBLY
. It is included in the control unit. . Operating options with optional VISTA SEL keypad. . Offers ease of installation. . One-button automatic adjustment option. · For professional users; the opening speed, closing speed, acceleration, deceleration, slow-down distance, and speed during opening and closing can be adjustable. . It contains a hopping-coded radio receiver board that can define 63 remote controls. · Adjustable torque option. . Optional electromagnetic motor lock. . Motor pressure system that prevents manual opening of the wings. . Wheel under profile annd rubber profile pad that prevent noise and vibration. . Compatible with fire alarm systems. . Programmable with a handheld programming device. . Cable trays that conceal installation wires.

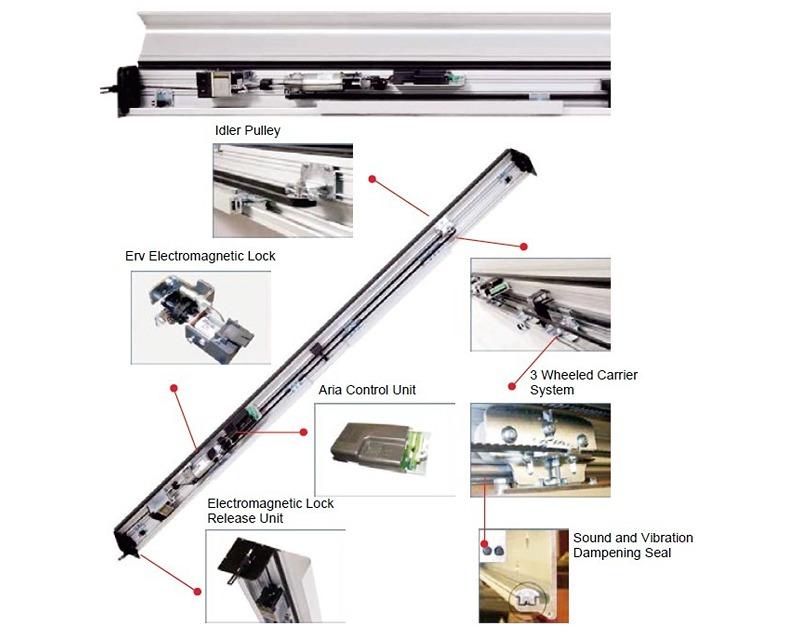

A MODEL SUITABLE FOR EVERY NEED Single leaf has a load capacity of 150 kg, while double leaf has a capacity of 120 +120 kg. . Wide range of accessory options. . Dunker motor, filtered transformer system, three-wheeled wheel carrier, rubber-hinged front cover, and specially designed profiles. . Easy programmability via the LCD screen on the control unit. · Optional battery operation capability.
VISTA SL1 and VISTA SL2 Control Unit: ARIA (ilerir) Operating Voltage: 230V~, ±10%, 50 Hz, single phase Average Power Consumption: 230 W Usage Frequency: Frequent Maximum Gate Width: VISTA SL1: 75 cm VISTA SL2: 80 cm Maximum Gate Leaf Weight: VISTA SL1: 150 kg VISTA SL2: 120+120 kg Mechanism Size: 166x155 mm Opening Angle: 10-70 degrees Impact Detection: Microprocessor with encoder Operating Temperature: 0-55°C Wheel Carrier Height Adjustment: Up to 16 mm Please note: VISTA SL1: Single-leaf gate VISTA SL2: Double-leaf gate
