Ramp Systems

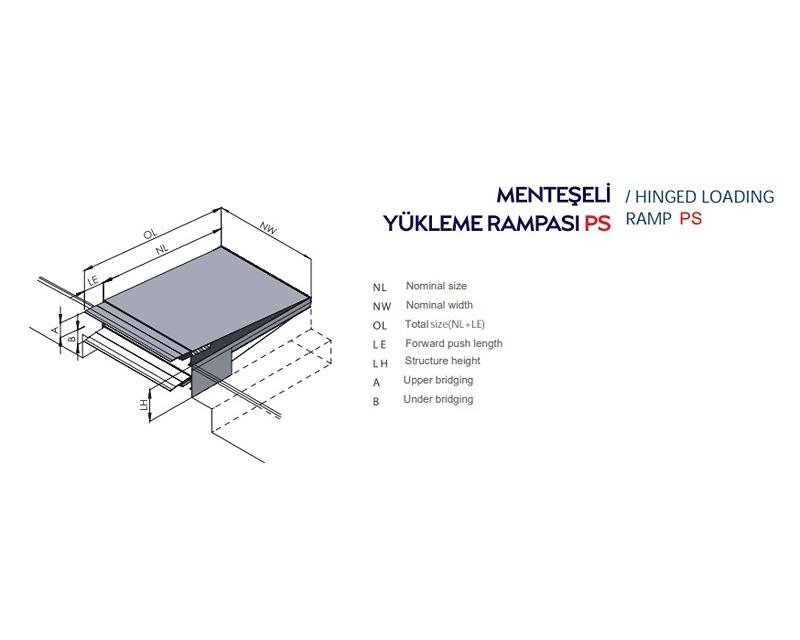

PROM-Stahl Hydraulic PS and PT Loading Ramps are essential solutions for fast loading and unloading in transport logistics.
These loading ramps bridge the gaps between the truck and the concrete, effectively compensating for height differences.
The platform and edges are made of anti-slip steel, suitable for all loading situations.
Side bevel cut:The most cost-effective method to reduce the overlap area of the folding wedge is the double-sided curved cut option. In this option, both sides of the folding wedge are curved by 125 mm. It is recommended for NW ≥ 2,200.
Side folding elements:The loading ramp can also be provided with folding side parts. In this case, the folding wedge consists of a central part and external parts on the right and left. The external parts fold downward independently of the central part. This automatically reduces the overlap area by 125 mm on each side, allowing operations to be performed even with trucks that have narrower loading areas. Once the folding wedge returns to its vertical position, the external parts automatically snap back into their slots. The central part and external parts will open together automatically for the next operation. It is recommended for NW > 2,200.
Side bevel cut: The most cost-effective method of reducing the overlap area of the slider is the double-sided bevel cut option. In this option, both sides of the folding wedge are beveled by 125 mm. It is recommended for NW ≥ 2,200.

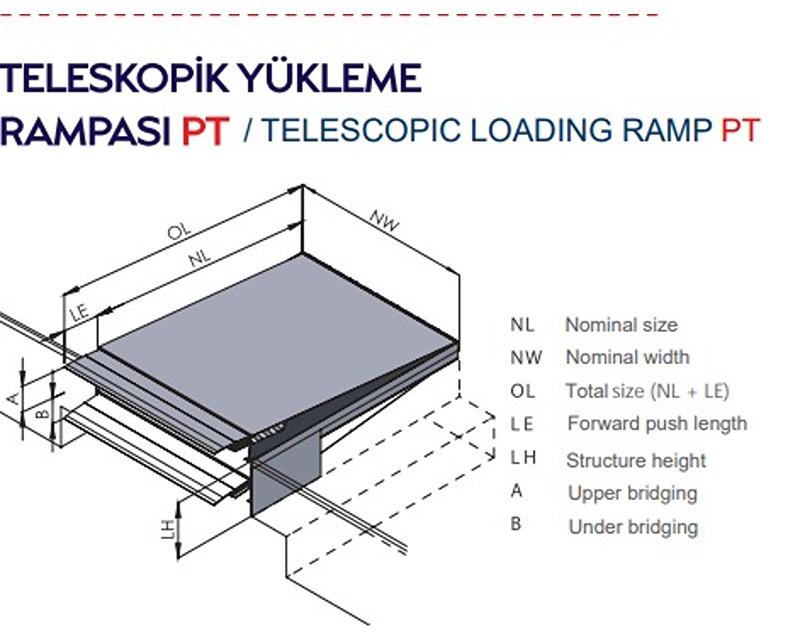

Side slider tongues: The loading ramp can also be supplied in a side slider tongue model. In this case, the slider consists of a central piece and two side sections with toothed parts. The outer parts move independently of the central piece, retracting backward ,This reduces the overlap area by 150 mm on all sides, allowing operations with trucks that have narrower loading areas. Once the slider is fully retracted, the outer parts automatically lock into their positions. During the next operation, the central and outer parts extend together automatically. This model is recommended for NW ≥ 2,200.
Loading ramps provide maximum efficiency, especially in areas where there is a lot of heavy entry and exit and at the same time goods are shipped. A loading ramp, which comes as standard, consists of 2 main parts. The first of these main parts is the main platform and the second is the lip. If it is necessary to ship goods continuously in the facilities, it is absolutely necessary to use loading ramps for these facilities. Loading ramps can be preferred in different sizes according to different variables such as warehouse height, vehicle width and so on, and special production can be made. In addition to standard sizes, specially produced load ramps are preferred for a number of unusual vehicle and warehouse heights. In general, the ramps have a hydraulic pump, valves and a total of two pistons, one large and the other small, that allow the platform to move. The large piston main platform in the system moves the small piston lip. Valves, on the other hand, control the sequence of movement of these large and small pistons, so that the system works continuously. This system is quite simple but very well designed. Thanks to this system, you can easily control all the functions of this ramp with a single button and get the chance to use it easily. The hydraulic unit in this system allows to change the ramp position. This load ramp can never be used to lift loads other than its own weight. Normally, a standard loading ramp normally lifts 6 tons of load. While the static carrying capacity is 6 tons, the dynamic load capacity is 9 tons. If you want to carry more loads than these loads, you can get the chance to carry more loads by designing special type ramps. Sometimes power outages occur, in such a case, there is a safety valve that stops the oil flow to prevent the ramp from descending outside the system and causing accidents. Thanks to this safety valve, accidents do not occur and it offers a very comfortable use. The load ramp is used when loading and unloading. While carrying out these studies, different wheeled transport vehicles such as pallet trucks, electric pallet trucks and forklifts are used. While performing different operations such as loading and unloading products with these transport vehicles, there is a slope that arises from the difference between the height of the warehouse and the height of the vehicle. The optimal ramp height varies from 120 to 130 cm. Ramp dimensions are decided differently depending on your vehicle and tank height, and a special production is provided
Side folding elements:The loading ramp can also be provided with folding side parts. In this case, the folding wedge consists of a central part and external parts on the right and left. The external parts fold downward independently of the central part. This automatically reduces the overlap area by 125 mm on each side, allowing operations to be performed even with trucks that have narrower loading areas. Once the folding wedge returns to its vertical position, the external parts automatically snap back into their slots. The central part and external parts will open together automatically for the next operation. It is recommended for NW > 2,200.
Side bevel cut: The most cost-effective method of reducing the overlap area of the slider is the double-sided bevel cut option. In this option, both sides of the folding wedge are beveled by 125 mm. It is recommended for NW ≥ 2,200.
Side slider tongues: The loading ramp can also be supplied in a side slider tongue model. In this case, the slider consists of a central piece and two side sections with toothed parts. The outer parts move independently of the central piece, retracting backward ,This reduces the overlap area by 150 mm on all sides, allowing operations with trucks that have narrower loading areas. Once the slider is fully retracted, the outer parts automatically lock into their positions. During the next operation, the central and outer parts extend together automatically. This model is recommended for NW ≥ 2,200.
Loading ramps provide maximum efficiency, especially in areas where there is a lot of heavy entry and exit and at the same time goods are shipped. A loading ramp, which comes as standard, consists of 2 main parts. The first of these main parts is the main platform and the second is the lip. If it is necessary to ship goods continuously in the facilities, it is absolutely necessary to use loading ramps for these facilities. Loading ramps can be preferred in different sizes according to different variables such as warehouse height, vehicle width and so on, and special production can be made. In addition to standard sizes, specially produced load ramps are preferred for a number of unusual vehicle and warehouse heights. In general, the ramps have a hydraulic pump, valves and a total of two pistons, one large and the other small, that allow the platform to move. The large piston main platform in the system moves the small piston lip. Valves, on the other hand, control the sequence of movement of these large and small pistons, so that the system works continuously. This system is quite simple but very well designed. Thanks to this system, you can easily control all the functions of this ramp with a single button and get the chance to use it easily. The hydraulic unit in this system allows to change the ramp position. This load ramp can never be used to lift loads other than its own weight. Normally, a standard loading ramp normally lifts 6 tons of load. While the static carrying capacity is 6 tons, the dynamic load capacity is 9 tons. If you want to carry more loads than these loads, you can get the chance to carry more loads by designing special type ramps. Sometimes power outages occur, in such a case, there is a safety valve that stops the oil flow to prevent the ramp from descending outside the system and causing accidents. Thanks to this safety valve, accidents do not occur and it offers a very comfortable use. The load ramp is used when loading and unloading. While carrying out these studies, different wheeled transport vehicles such as pallet trucks, electric pallet trucks and forklifts are used. While performing different operations such as loading and unloading products with these transport vehicles, there is a slope that arises from the difference between the height of the warehouse and the height of the vehicle. The optimal ramp height varies from 120 to 130 cm. Ramp dimensions are decided differently depending on your vehicle and tank height, and a special production is provided
