SMT Gearless Elevator Motor Speed: m/s | Suspension: 1:1
12818.575
/PcsAvailable
Product Info:
Car Speed =3 m/s | 1:1 Suspension
Load: 1000 kg.

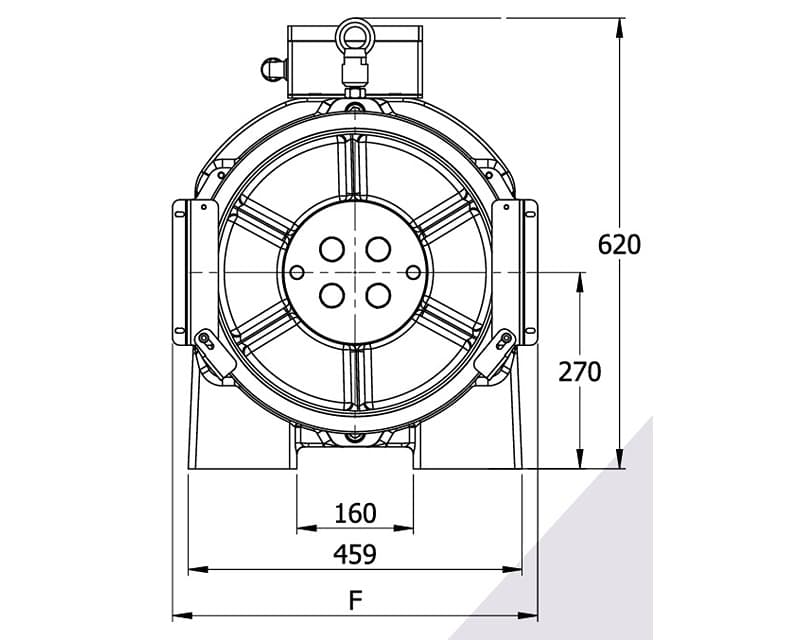

Motor Type:SMT 250AC-50
Pulley Diameter (mm): Ø520
No. of Ropes x Rope Diameter (mm): 6xØ12
Motor Power (kW): 29
Load Current (I-Ampere): 51
Maximum Static Load (kg): 13000 kg.
ADVANTAGES OF SMT 250AC
- Compact design for both roomed and roomless applications of elevator systems.
- Maximum travelling comfort and minimum noise level in the cabin.
- 40% energy saving.
- Environment friendly since no oil is required.
AKAR® Electromagnetic Brake:
- Our brakes fulfill EN 81-20 and EN 81-50 Standards.
Brake Voltage: 198V DC
No of Poles: 20
Motor Voltage: 360V (Others Optional)
Frequency: 50Hz
