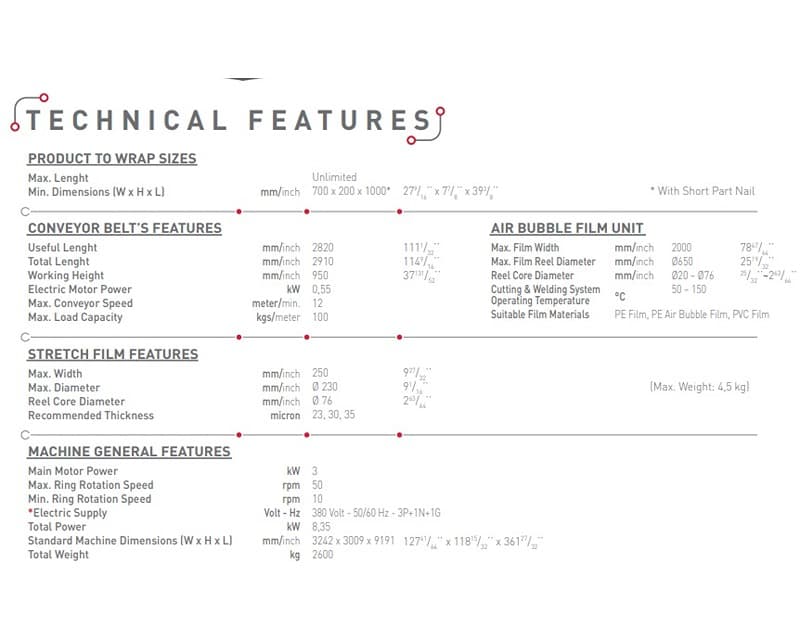

TECHNICAL FEATURES PRODUCT TO WRAP SIZES Max. Length: Unlimited Min. Dimensions (W x H x L): 700 x 200 x 1000 mm/With Short Part Nail CONVEYOR BELT'S FEATURES Useful Length: 2820 mm Total Length: 2910 mm Working Height: 950 mm Electric Motor Power: 0.55 kW Max. Conveyor Speed: 12 meter/min. Max. Load Capacity: 100 kgs/meter AIR BUBBLE FILM UNIT Max. Film Width: 2000 mm Max. Film Reel Diameter: 650 mm Reel Core Diameter: 20-76 mm/inch Cutting & Welding System Operating Temperature: 50-150 °C Suitable Film Materials: PE Film, PE Air Bubble Film, PVC Film STRETCH FILM FEATURES Max. Width: 250 mm Max. Diameter: 230 mm/inch (9 1/16") (Max. Weight: 4.5 kg) Reel Core Diameter: 76 mm Recommended Thickness: 23, 30, 35 micron MACHINE GENERAL FEATURES Main Motor Power: 3 kW Max. Ring Rotation Speed: 50 rpm Min. Ring Rotation Speed: 10 rpm Electric Supply: 380 Volt - 50/60 Hz - 3P+IN+1G Total Power: 8.35 kW Standard Machine Dimensions (W x H x L): 3242 x 3009 x 9191 mm Total Weight: 2600 kg
