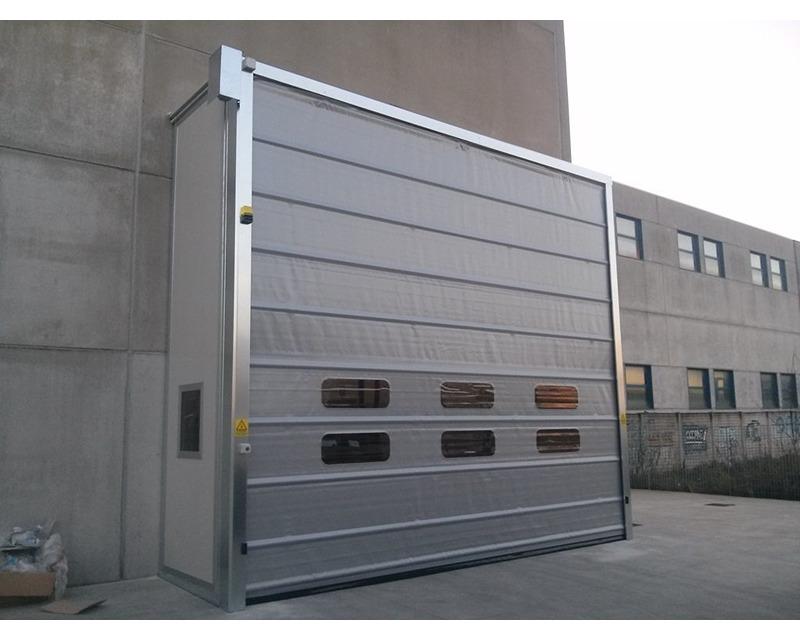

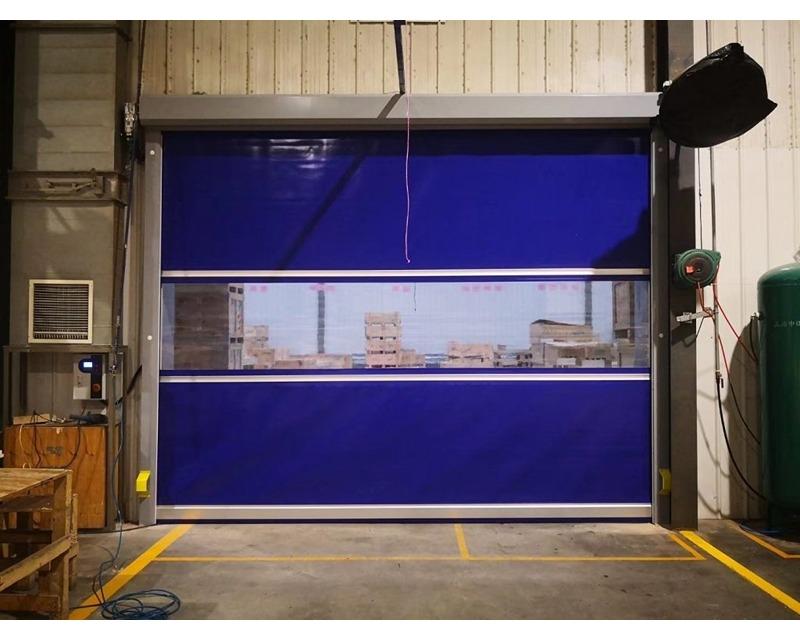

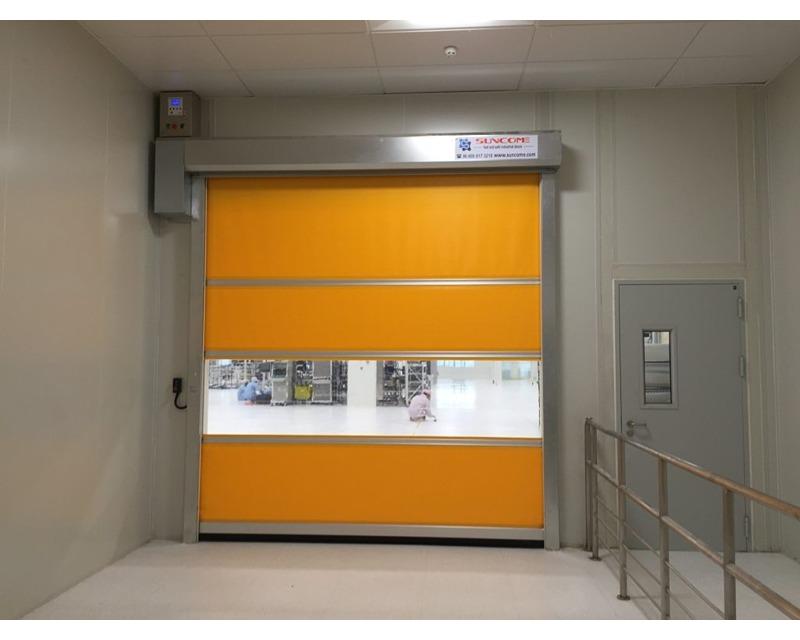

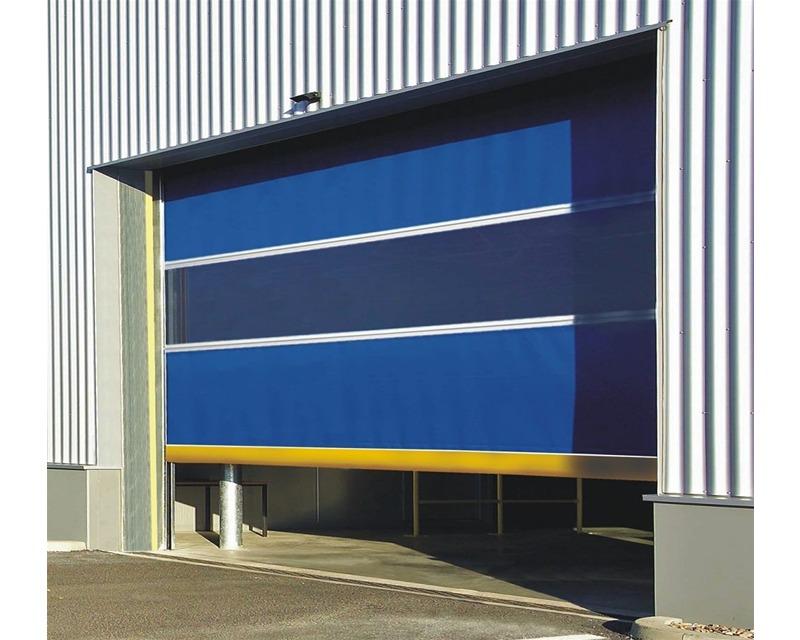

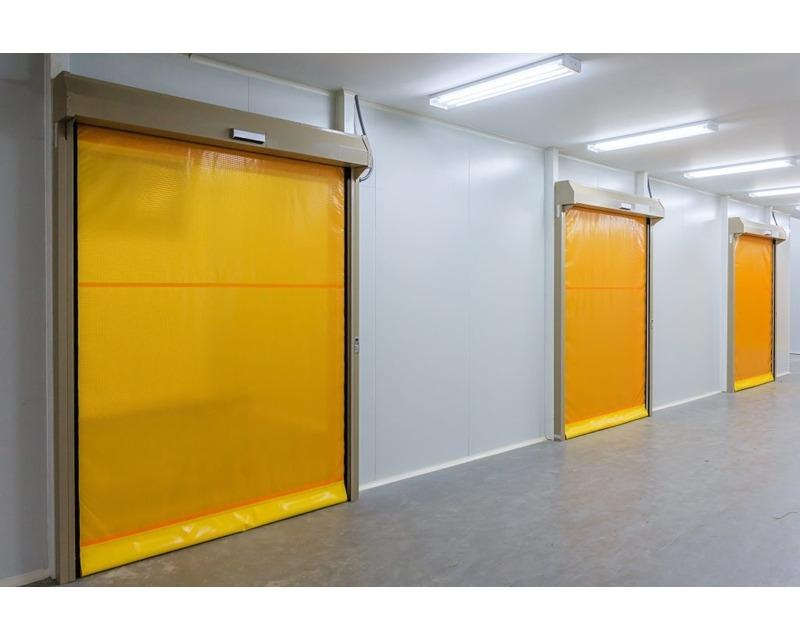

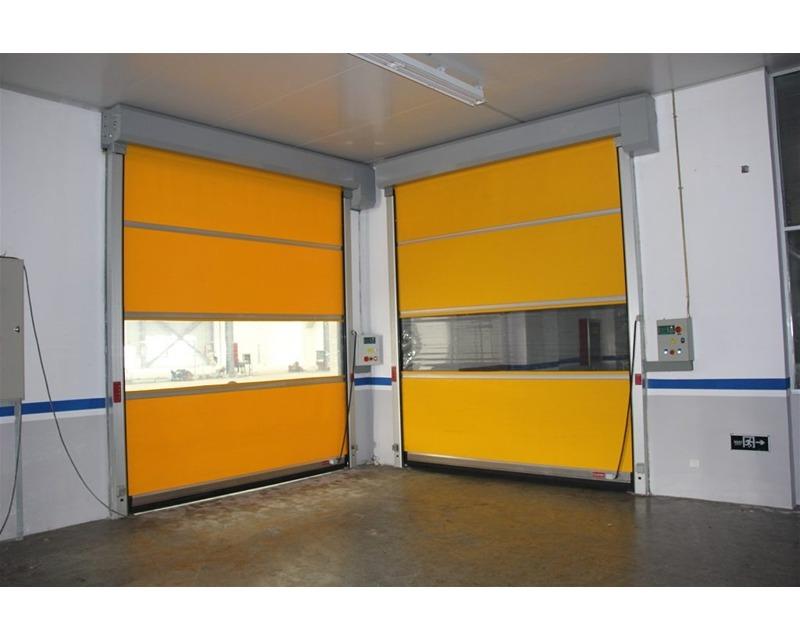

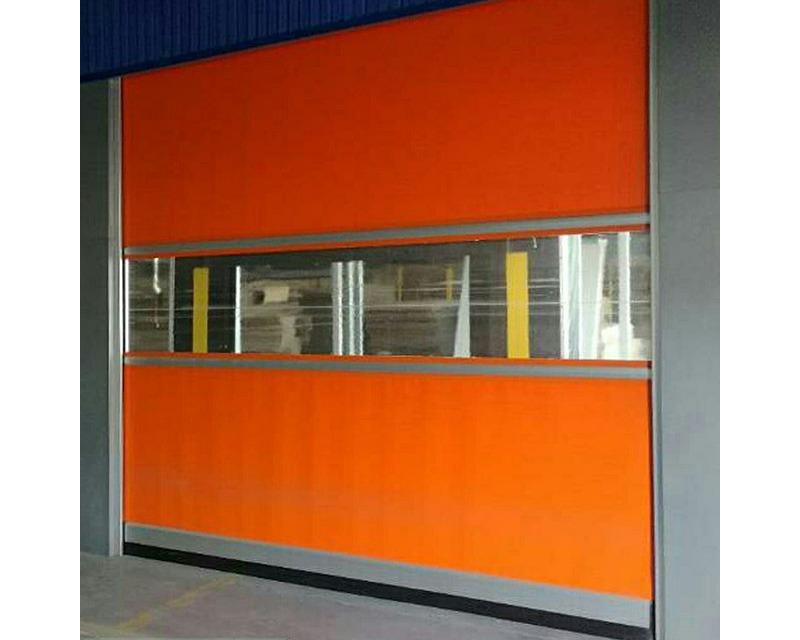

Spiral High-Speed PVC

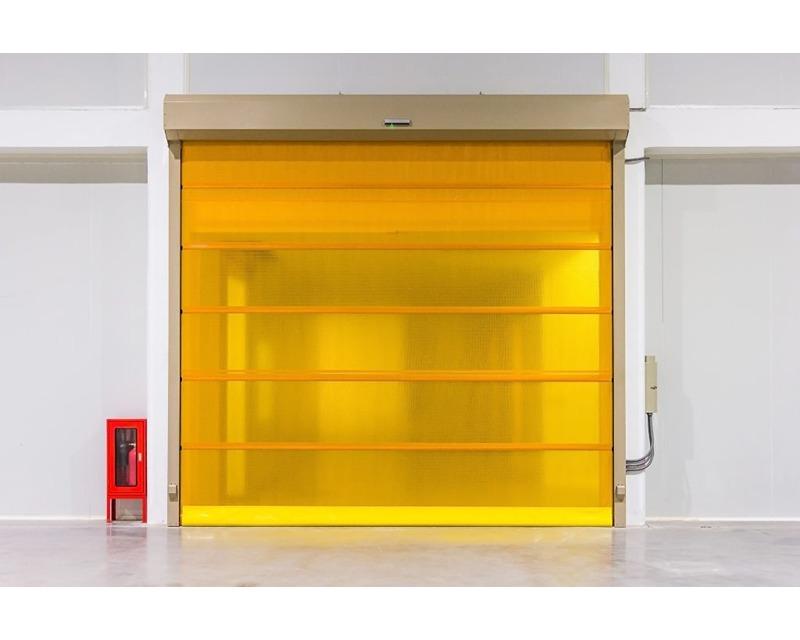

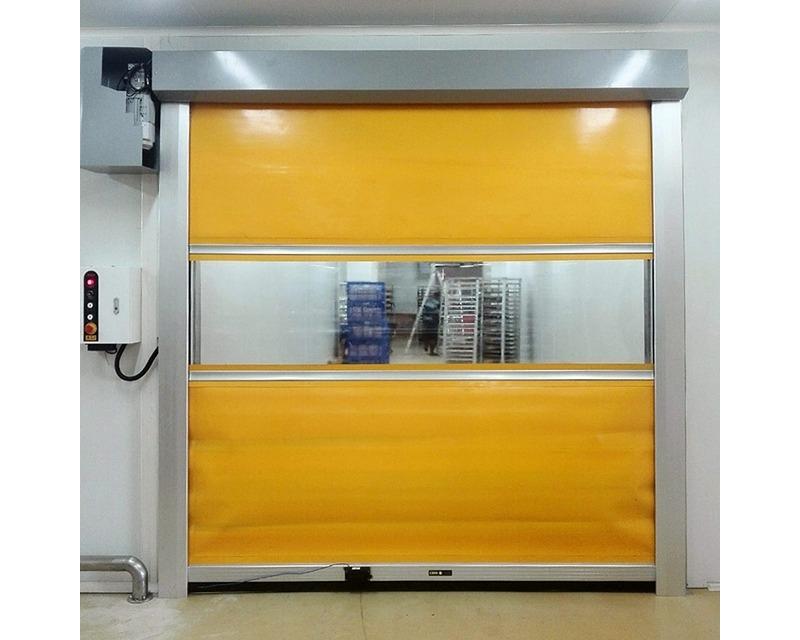

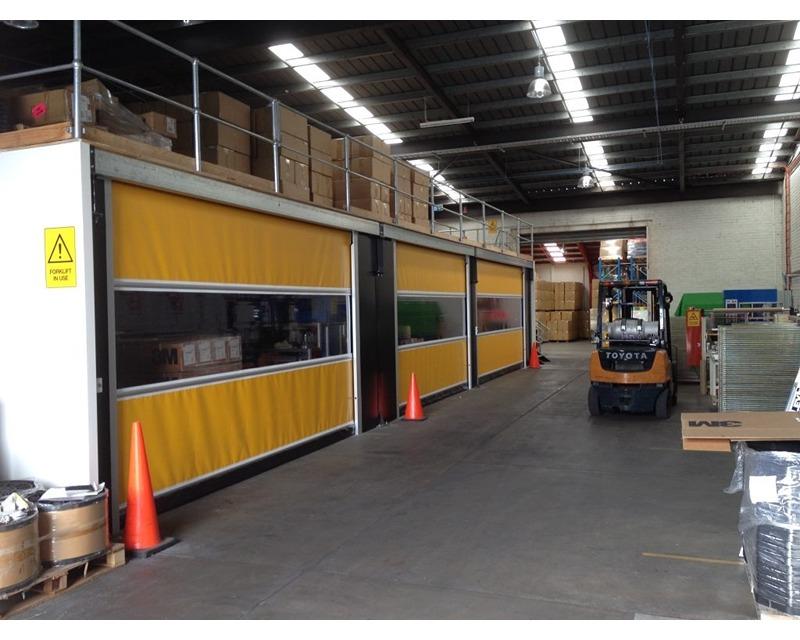

Fast PVC Rolling Door As we can all guess, the density is at a very high level in every facility, and therefore speed is perhaps one of the most important things.This type of door, which is highly preferred especially in facilities and warehouses
SKU: EWA-TR-DOR-145-V2-4Technical Specifications of Spiral Type High-Speed PVC Door:
PVC Tarpaulin:
0,8 mm 900g/m² Panama 1100 dtex MEHLER, Heat resistance -30°C, +70°C.
Upright Rails and Mechanism:2 mm galvanized steel (seamless up to 6000 mm).
Metal parts inside the mechanism:3mm 5 mm laser-cut custom design galvanized sheet metal.
Seals and Gaskets:Custom-designed EPDM.
Seals and Gaskets:12 mm solid shaft.
Wind Resistance:60 km/m².

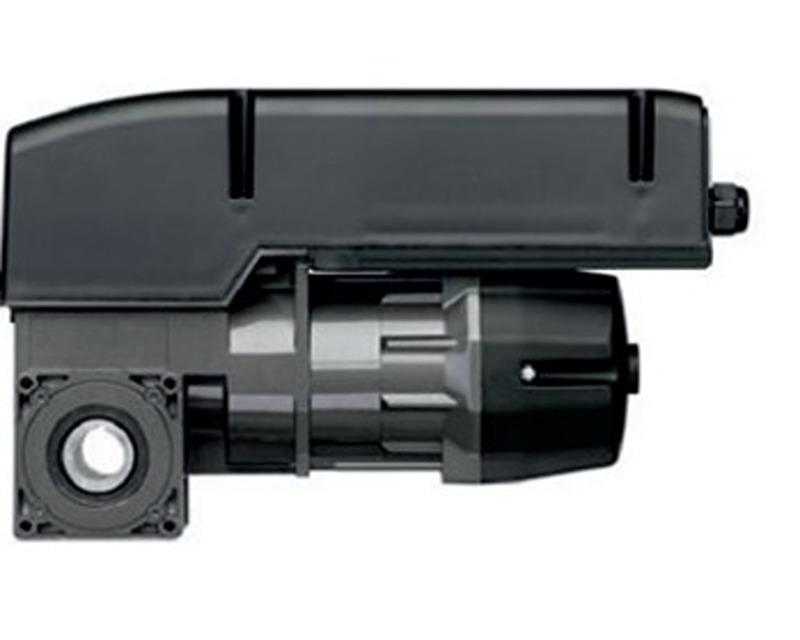

Motor:380 VAC, varying in sizes between 0.75 kW and 5.5 kW depending on the door size.
Gearbox:63 70 body cast aluminum (YILMAZ GEARBOX).
Brake:200 VDC Electromagnetic Brake.
Switch:Chain-driven rotary limit switch (RAVIOLI ITALIAN).
Safety:Safety photocell (S), Current limitation (S), Pneumatic bottom bar (0), Height photocell (0).
Flasher / Siren:Can be connected optionally.
Control Unit:380 VAC, current limited, phase control system, compatible with access control systems.
Cabin:Plastic (S), Stainless steel (0).
Protection Limit:IP65.
Operating Functions:Open-Stop-Close and emergency stop buttons are standard.
Adjustable Functions:Automatic closing time, automatic or manual operation.
Opening Alternatives:Radar, Loop Detector, Remote Control, Limit Switch.
Door Operating Speed:0,7 m/sn (S), can be increased with a drive.
Window:Eye level 1 row 45 cm (S), can be increased upon request.
Tarp Color:Gray, White, Blue, Black, Yellow, Orange, Red, Green.
What are the features of rapid PVC rolling doors? The fast PVC spiral door consists of tarpaulin and thus the system operates flexibly. Thanks to PVC doors, minor accidents that may occur are also reduced to a minimum level. These fast PVC spiral doors have a very flexible structure. Thanks to this flexible structure, they do not fail after the slightest impact and thus do not leave you, the business owners, in the lurch. PVC spiral doors are foldable and manufactured as a spiral system. Steel and aluminum bars are used on the horizontal axis to make these doors even stronger against wind resistance. Since these doors open and close automatically, they provide great comfort thanks to this feature. This door provides full visibility thanks to transparent PVC windows. The movement area of the fast PVC spiral door is made safe with a photocell. Even if there is a power outage, you can continue to use this spiral PVC door thanks to the turning handle. If you wish, you can also get the chance of automatic closing that can be adjusted between 10 and 60 seconds. This type of door offers services with soft start and soft stop functions as well as a half-stop function.
