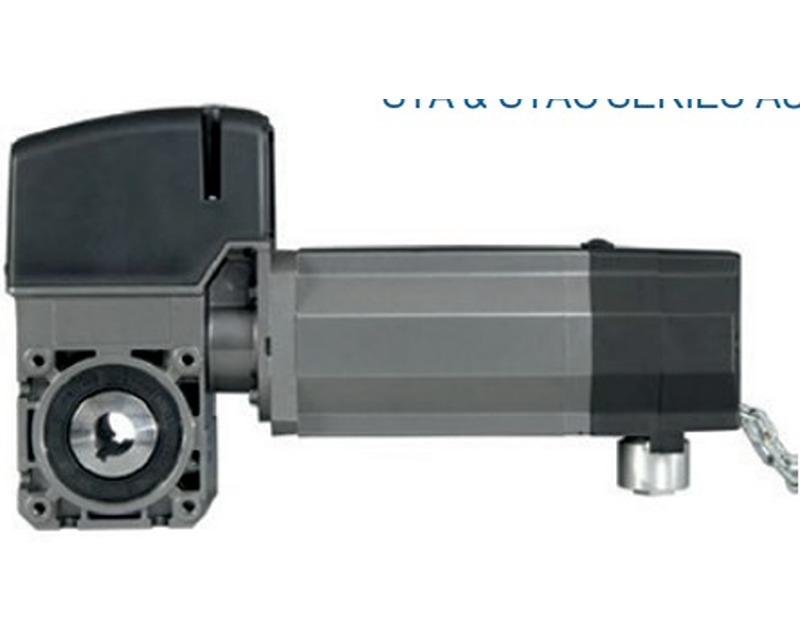

STA & STAC SERIES AUTOMATION SYSTEMS
STA - STAC series motors are specifically designed for balanced spring doors, ensuring optimal performance and reliability.
The gearbox, equipped with a special motor that provides high power in the smallest space, has been specially developed for this application.
The design of the motors is therefore quite compact.
The body is notably narrow.
Features:: Aluminum gray cast body 25.4 mm.
Wrapped endless gear shaft.
Double endless gear shaft bearing.
Thermal protection in the motor winding.
230/400/50 Hz/3~, special solutions (upon request).
Removable connections.
Can be combined with a comprehensive control program.
Easy transition from arm to chain equipment.

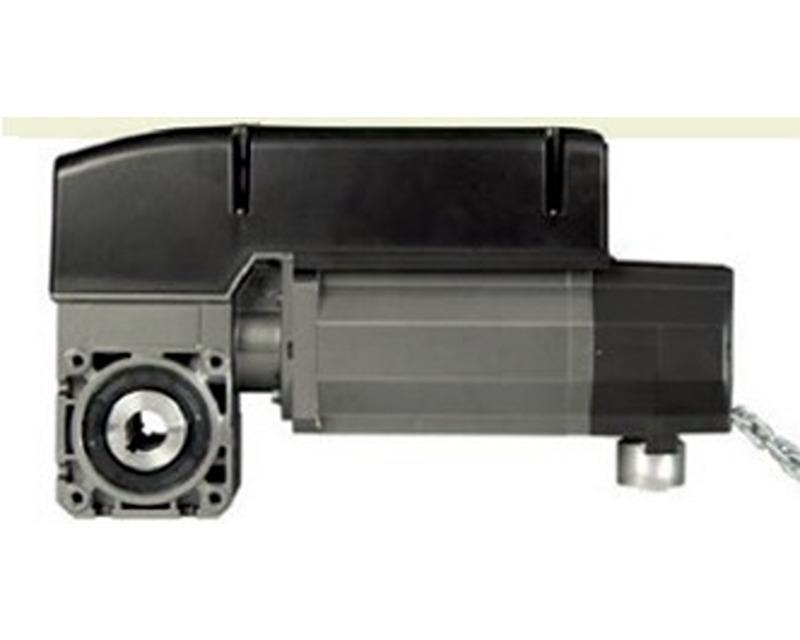

STA 1-10-24 KE
Shaft Diameter : 25,4 mm Output Torque : 100 N Maximum Door Lifting Weight : 450 kg / 30 m² Operating Speed : 24 Rpm Motor Power : 0,37 KW Operating Voltage : 400 V/3 Frequency : 50 Hz Current Rating : 2A Control Voltage : 24V Motor Speed : s3-%60 ED Operating Temperature : -20 / + 60 degree IP Prottection Rating : IP 65

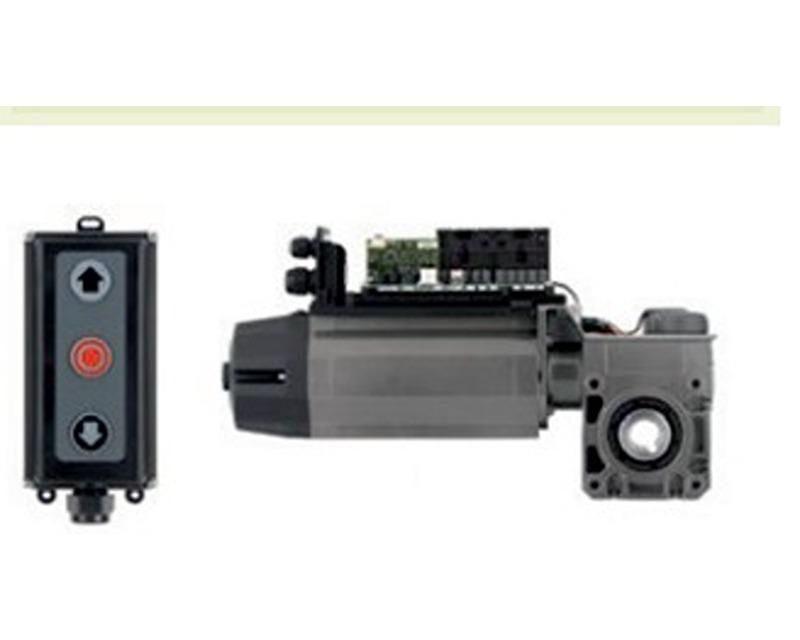

External Control Board / CS 300:
Comprehensive functions Programmable 4 relay outputs LCD screen with text display (optional) Many connected expansions connection area Powerful supply for external devices Opto-laser and pneumatic safety suitable for use with the system.
STA 1-12-19 KE
Shaft Diameter : 25,4 mm Output Torque : 120 N Maximum Door Lifting Weight : 750 kg / 45 m² Operating Speed : 19 Rpm Motor Power : 0,55 KW Operating Voltage : 400 V/3 Frequency : 50 Hz Current Rating : 2A Control Voltage : 24V Motor Speed : s3-%60 ED Operating Temperature : -20 / + 60 degree IP Prottection Rating : IP 54
STA 1-8-45 KE : Shaft Diameter : 25,4 mm Output Torque : 80 N Maximum Door Lifting Weight : 450 kg / 30 m² Operating Speed : 45 Rpm Motor Power : 0,55 KW Operating Voltage : 400 V/3 Frequency : 50 Hz Current Rating : 2,2A Control Voltage : 24V Motor Speed : s3-%60 ED Operating Temperature : -20 / + 60 degree IP Prottection Rating : IP 65
Control via end position sensor Closed direction of movement without automatic stop Open direction of movement without automatic stop Final position adjustment with external 3-button switch Suitable for use with opto-laser or Pneumatic safety systes.
STAK 1-10-24 KE :
Shaft Diameter : 25,4 mm Output Torque : 100 N Maximum Door Lifting Weight : 450 kg / 30 m² Operating Speed : 24 Rpm Motor Power : 0,37 KW Operating Voltage : 400 V/3 Frequency : 50 Hz Current Rating : 2A Control Voltage : 24V Motor Speed : s3-%60 ED Operating Temperature : -20 / + 60 degree IP Prottection Rating : IP 65
STAC 4-4-24 KE:Shaft Diameter : 25,4 mm Output Torque : 40 N Maximum Door Lifting Weight : 300 kg / 16 m² Operating Speed : 24 Rpm Motor Power : 0,25 KW Operating Voltage : 400 V/3 Frequency : 50 Hz Current Rating : 1.3A Control Voltage : 24V Motor Speed : s3-%60 ED Operating Temperature : -20 / + 60 degree IP Prottection Rating : IP 65
Control Board / CS 250:
