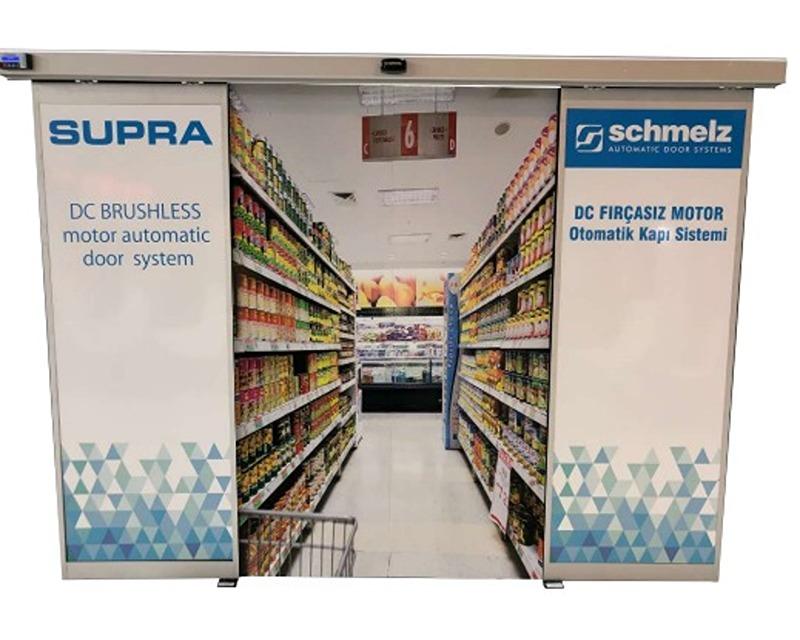

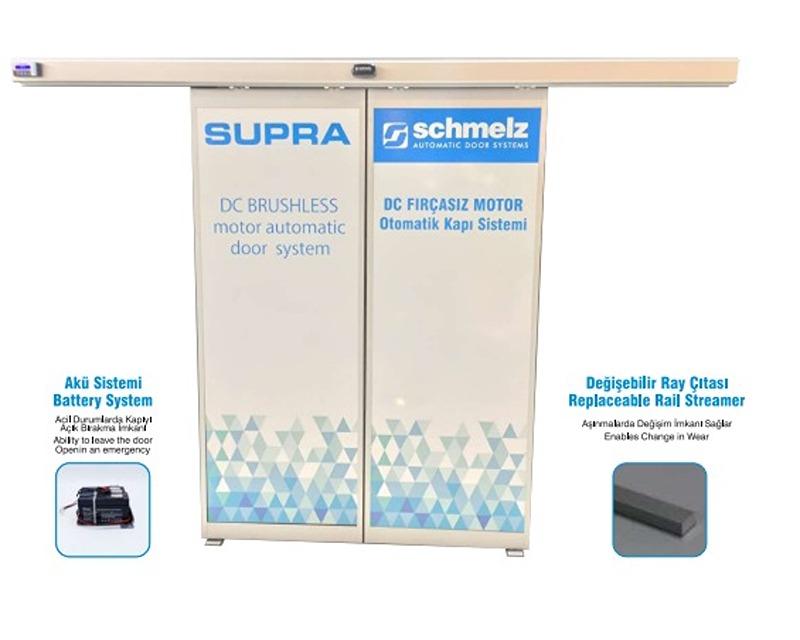

SUPRA Door
Schmelz Supra sliding door mechanism all available door It can be used in different applications in accordance with its profiles.
Perfect operation thanks to its many adjustment possibilities It has characteristics and can be maintained very easily.
Intelligent microprocessor controller guarantees safe operation, provides fast and smooth movements.
All depending on European standards meets safety needs.
Input of all parameters digital position It can be done quickly and easily by means of buttons on the switch screen.
Its work is very practical.
No additional programming device is required.

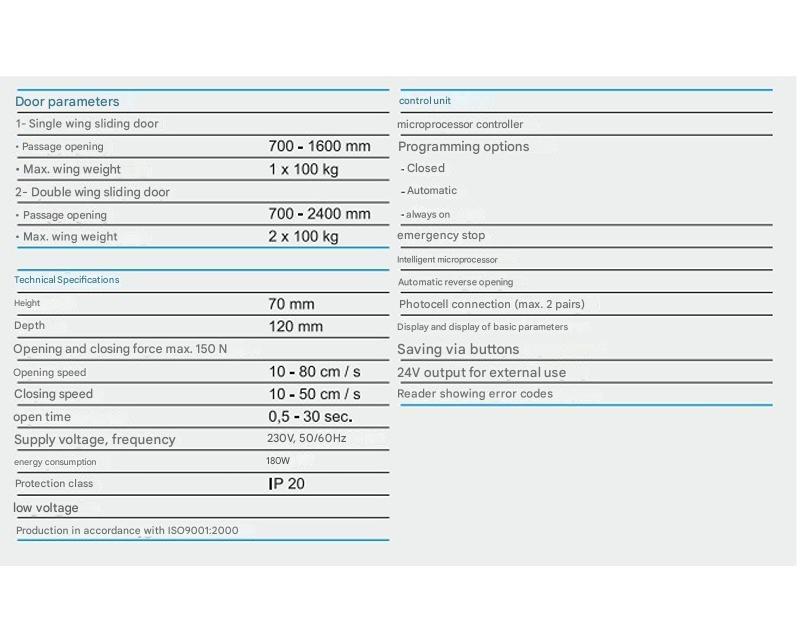

Door parameters:
Single wing sliding door
Passage opening:700-1600 mm
Max. wing weight:1 x 100 kg
Double wing sliding door:
Passage opening::700-2400 mm
Max wing weight:2 x 100 kg
Technical Specifications:
Height:70 mm
Depth:120 mm
Opening and closing force max:150 N
Opening speed:10-80 cm/s
Closing speed:10-50 cm/s
Open time:0,5 - 30 sec
Supply voltage, frequency:230 V, 50/60 Hz
energy consumption:180 W
Protection class:IP 20
Low voltage:
Production in accordance with ISO9001:2000
control unit
Microprocessor controller
Programming options
Closed
Automatic
always on
emergency stop
Intelligent microprocessor
Automatic reopening
Photocell connection (max. 2 pairs)
Display of basic parameters and saving via buttons
24V output for external use
Reader showing error codes
