TAB COREX CNC MACHINING CENTER
The manufacturing time for the machines is 3-4 months.
The machines come with a 2-year warranty.

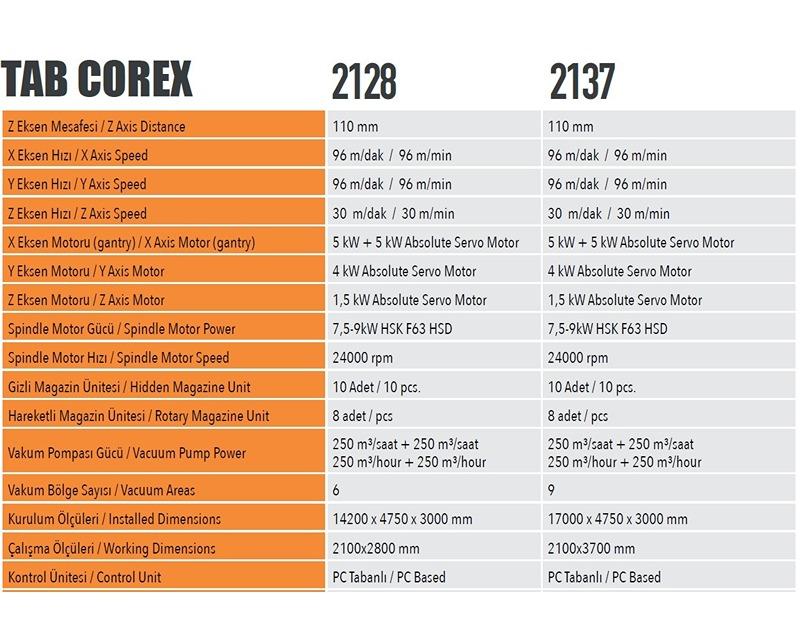

The dimensions of 2128 are 210*280, while those of 2137 are 210*370.

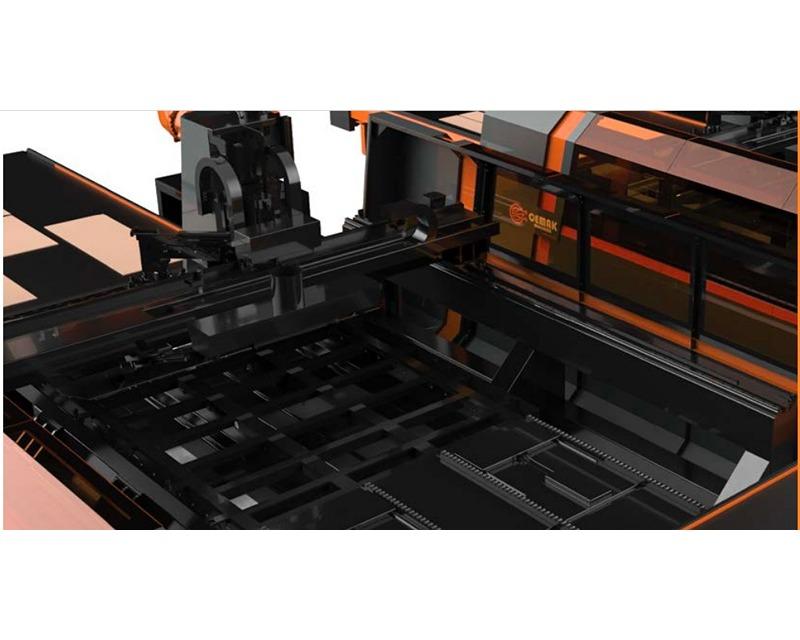

LOADING UNIT:The loading unit automatically carries the plates
from lift to the work table. It provides efficient and
fast production flow.
ROTATION UNIT:It is necessary for the processing of the other surface of the labeled materials coming out of the automatic labeling Unit.
UNLOADING & CLEANING UNIT:It cleans the table by removing the processed workpiece. It makes the unit ready for the next operation..

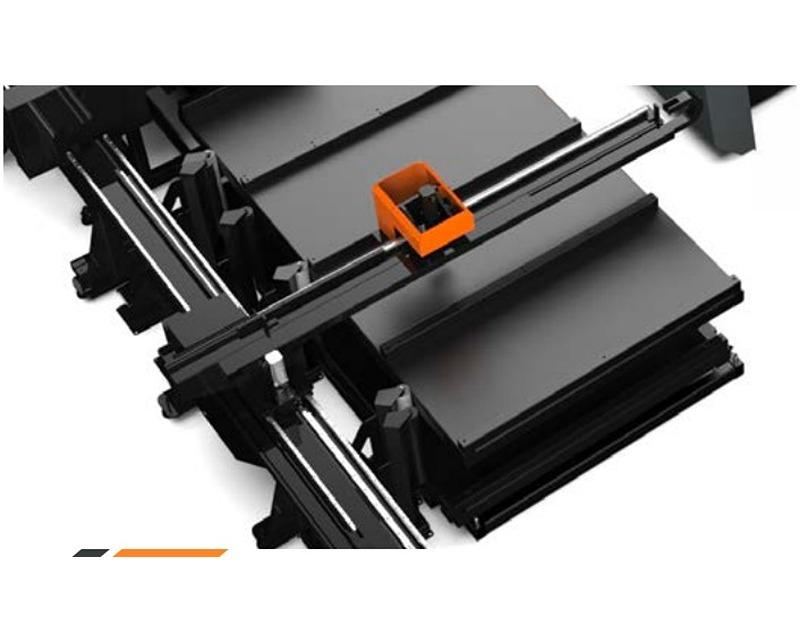

AUTOMATIC:The automatic labelling unit aligns and labels the plates loaded on the lift. This system is working integrated with machine and provides increased productivity and helps controlling the production proces

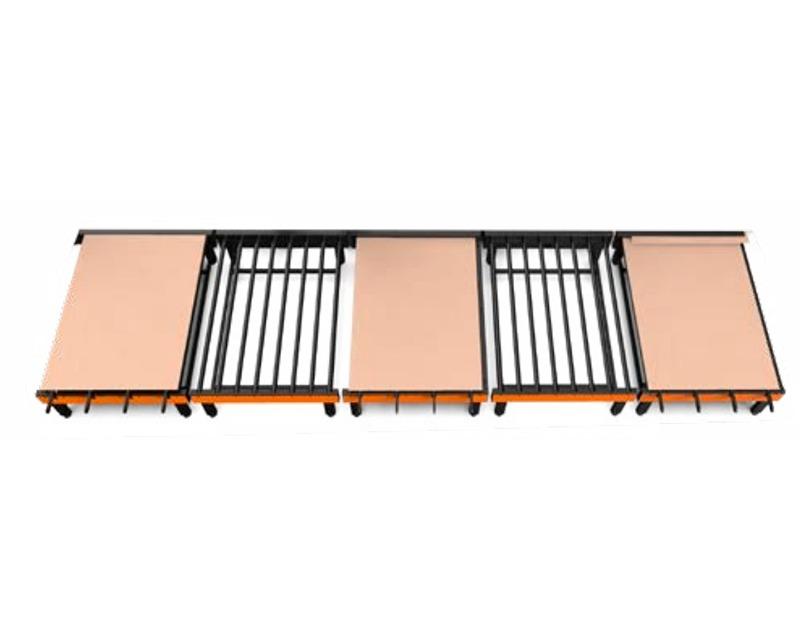

TRANSFER CONVEYORS:It is designed to make the production flow more efficient. It allows the part to wait in readiness for the next station

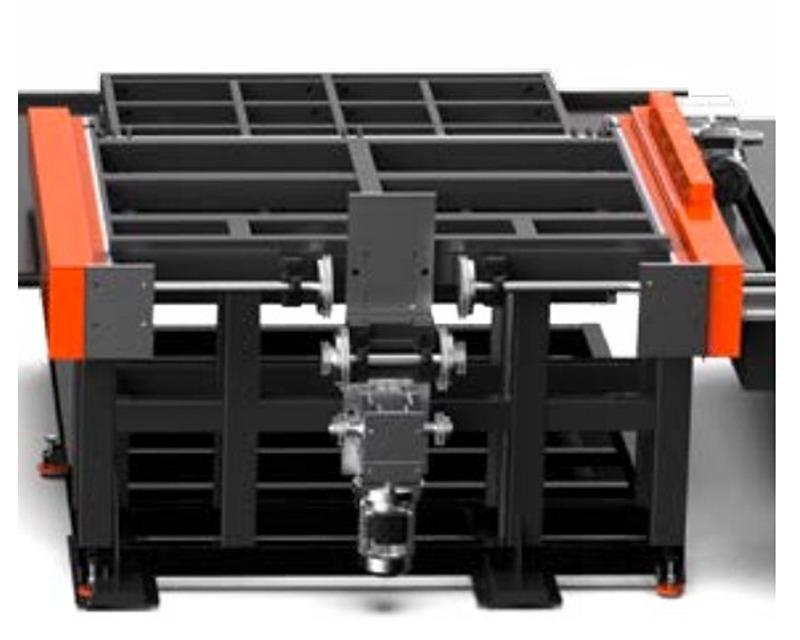

LIFTING:The lifting unit keeps the plates to be processed in a ready position. It allows loading up to 450mm height

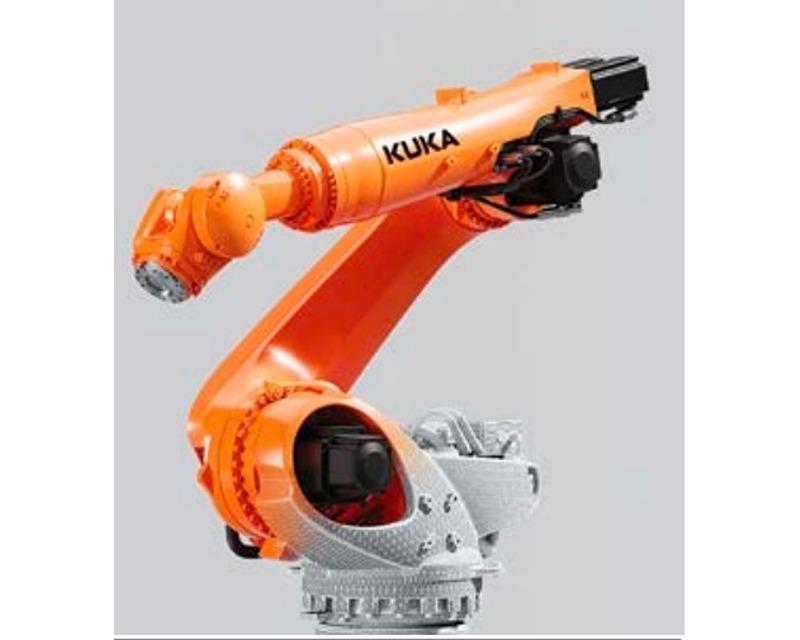

ROBOTIC AUTOMATION:To reduce the work force optional robotic integration

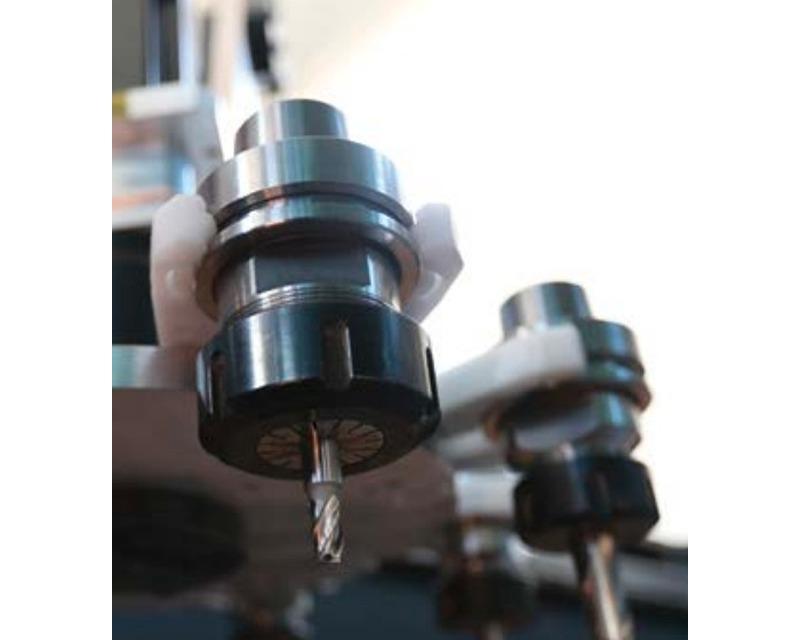

ROTARY:Save time with easy and fast tool changing with the 8 PCS tool capacity rotary magazine unit.

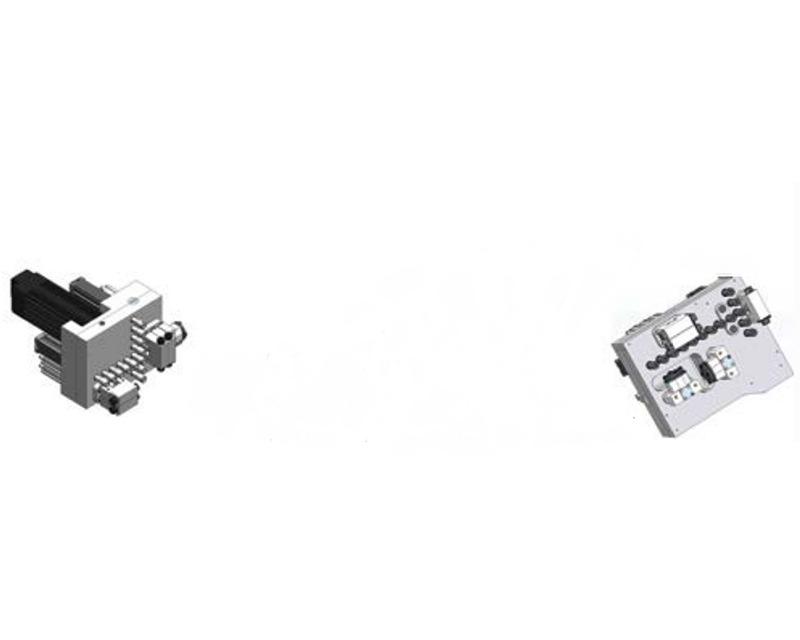

ADAPTABLE and HIGH PERFORMANCE BORING UNIT:Different hole unit options can be added to the machine according to customer’s needs and different type of projects.

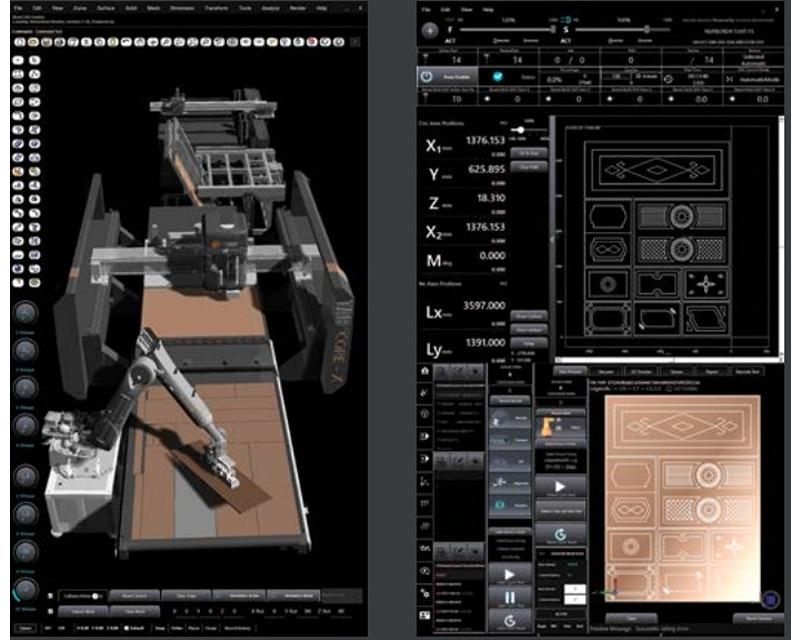

USER FRIENDLY INTERFACE:TAB Corex is controlled by a 100% Oemak-made interface and a new generation PC-based CNC control unit. Special functions that enable users to master the machine and use it efficiently receive full marks from the operators working with it. NumCAM 2D has written by OEMAK Engineers to provide support in entry-level jobs.
