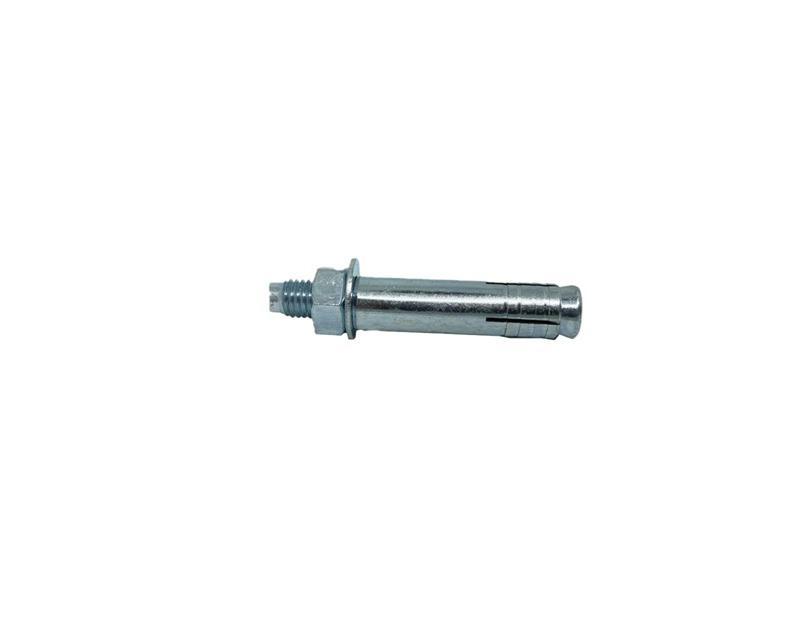

Bolted Pipe Dowel
230.9125
/Box/QTY: 650 Pcs
Available
It is preferred in places where the concrete quality is low, especially in elevator rail assembly.
It is a dowel whose sleeve is made in the pipe.
It is used for the places where the concrete quality is low. Especially ppe anchors are preferred n the elevator qude ral assembly.
Technical information is for C25 quality concrete.
Technical information for ths anchor s suitable for C25 concrete.
| Dimensions | Diameter | Box Quantity |
|---|---|---|
| M6X65 | 10 MM | 650 |
| M8X75 | 13 MM | 400 |
| M8X110 | 13 MM | - |
| M10X85 | 15 MM | 250 |
| M10X110 | 15 MM | 150 |
| M10X150 | 15 MM | 150 |
| M12X90 | 16 MM | 175 |
| M12X110 | 16 MM | 125 |
| M12X150 | 16 MM | 100 |
| M14X110 | 19 MM | 100 |
| M14X150 | 19 MM | - |
| M16X120 | 22 MM | 75 |
| M16X150 | 22 MM | 65 |
| M16X200 | 22 MM | - |
| M20X140 | 25 MM | - |
| M20X200 | 25 MM | - |
Bolted Pipe Dowel: It is the preferred type of dowel in places where concrete quality is low. The sleeve on it is made of pipe.
Bolted Pipe Dowel is a type of anchor dowel usually used for fixing to walls, concrete or other hard surfaces. This dowel has a metal body in the shape of a pipe and a screw mechanism inside the body. This screw ensures that the dowel remains firmly in place and also makes it easier to attach an object or material to the other end of the screw. The dowel is placed into the wall or concrete with a hammer or a suitable dowel gun. This dowel is ideal for carrying especially heavy loads and is often used for furniture, shelves, hangers, lamps and other home decorations.
It is used for the places which is the concrete quality low. Especially pipe anchors are preferred in the elevator quide rail assembling.
Technical information for this anchor is suitable for C25 concrete.
