SMT Gearless Elevator Motor Speed: 1.6 m/s | Suspension: 1:1
2082.85
/PcsAvailable
Product Info:
Car Speed = 1.6 m/s | 1:1 Suspension
Load: 300-320 kg.

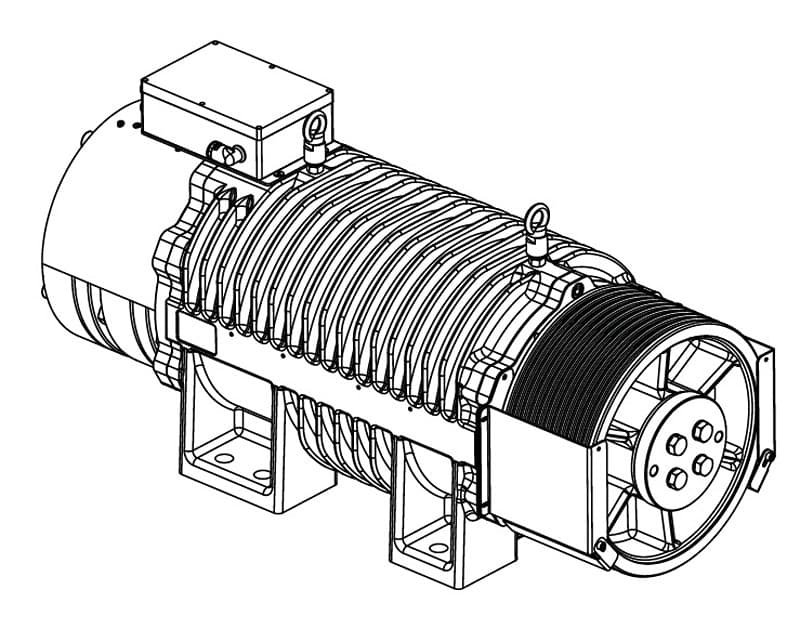

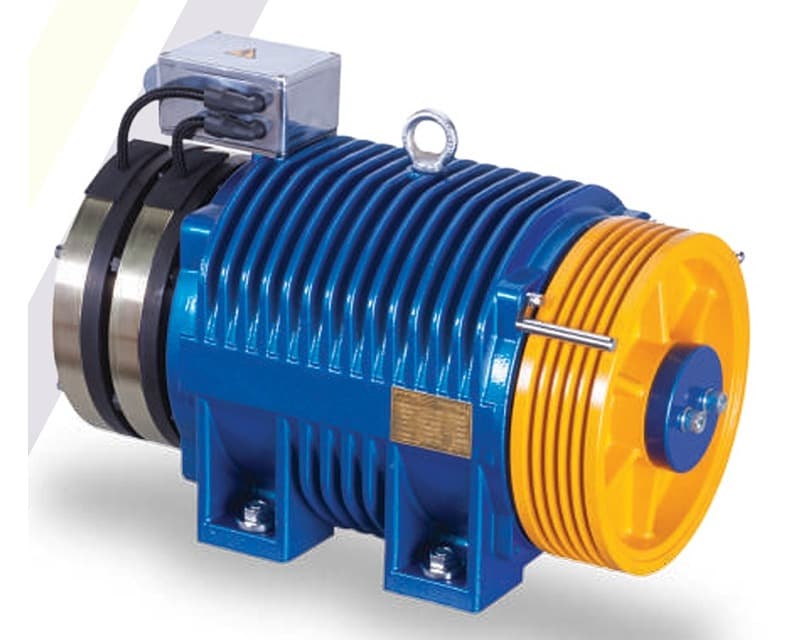

Motor Type:SMT 140AC-20
Pulley Diameter (mm): Ø240
No. of Ropes x Rope Diameter (mm): 6xØ6.5
Motor Power (kW): 4
Load Current (I-Ampere): 10
Maximum Static Load (kg): 2500 kg.
ADVANTAGES OF SMT 140AC
- Reaches the car speed of 1,6m/sec for 1:1 and 2:1 suspension.
- Compact design for both roomed and roomless applications of elevator systems.
- Maximum travelling comfort and minimum noise level in the cabin.
- 40% energy saving.
- Environment friendly since no oil is required.
AKAR® Electromagnetic Brake:
- Our brakes fulfill EN 81-20 and EN 81-50 Standards.
Brake Voltage: 198V DC
No of Poles: 16
Motor Voltage: 360V (Others Optional)
Frequency: 50Hz
