CDMX035N

Unit Dimensions

• IDU: Weight: 16 kg, Length: 57 cm, Width: 57 cm, Height: 26 cm
• ODU: Weight: 26.6 kg, Length: 76.5 cm, Width: 30.3 cm, Height: 55.5 cm

Packaging Dimensions

• IDU: Length: 66.2 cm, Width: 66.2 cm, Height: 31.7 cm, Cubic Meter: 0.32
• ODU: Length: 88.7 cm, Width: 33.7 cm, Height: 61 cm

CDMX050N

Unit Dimensions

• IDU: Weight: 16 kg, Length: 57 cm, Width: 57 cm, Height: 26 cm
• ODU: Weight: 32.5 kg, Length: 80.5 cm, Width: 33 cm, Height: 55.5 cm

Packaging Dimensions

• IDU: Length: 66.2 cm, Width: 66.2 cm, Height: 31.7 cm, Cubic Meter: 0.35
• ODU: Length: 91.5 cm, Width: 37 cm, Height: 61.5 cm

CDMX070N

Unit Dimensions

• IDU: Weight: 21.6 kg, Length: 83 cm, Width: 83 cm, Height: 20.5 cm
• ODU: Weight: 43.9 kg, Length: 89 cm, Width: 34.2 cm, Height: 67.3 cm

Packaging Dimensions

• IDU: Length: 91 cm, Width: 91 cm, Height: 25 cm, Cubic Meter: 0.50
• ODU: Length: 99.5 cm, Width: 39.8 cm, Height: 74 cm

CDMX140N

Unit Dimensions

• IDU: Weight: 29.3 kg, Length: 83 cm, Width: 83 cm, Height: 28.7 cm
• ODU: Weight: 103.7 kg, Length: 95.2 cm, Width: 41.5 cm, Height: 33.3 cm

Packaging Dimensions

• IDU: Length: 91 cm, Width: 33 cm, Height: 91 cm, Cubic Meter: 1.34
• ODU: Length: 109.5 cm, Width: 148 cm, Height: 49.5 cm

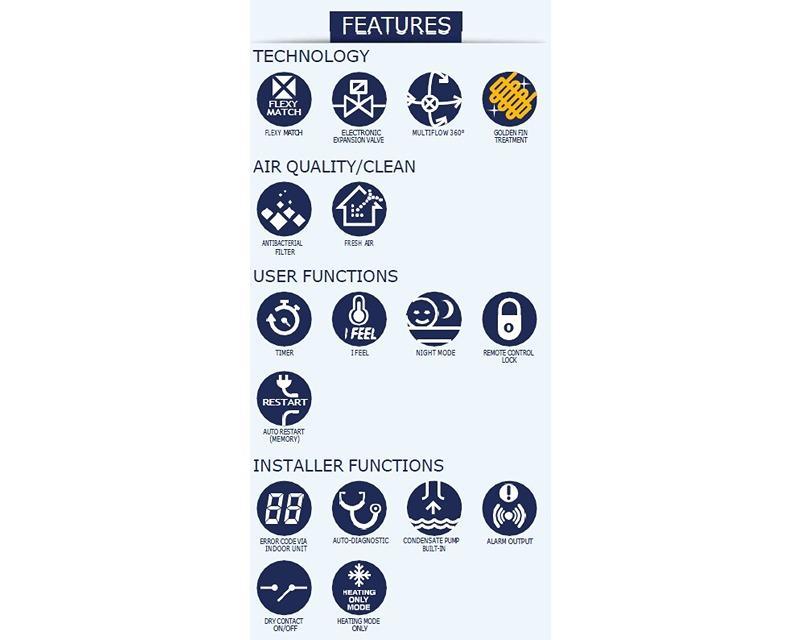

Product Features

Sustainable Development

• Energy label A++ in cooling mode and A+ in heating mode

User Comfort

• Front panel design for easy integration into false ceilings
• 360° air distribution for uniform temperature

Installer Features

• Compact size for low ceiling installations
• Parameter display on indoor unit
• Pre-drilled holes for fresh air supply or small room ventilation
• Long piping length (up to 75 m)

Technology

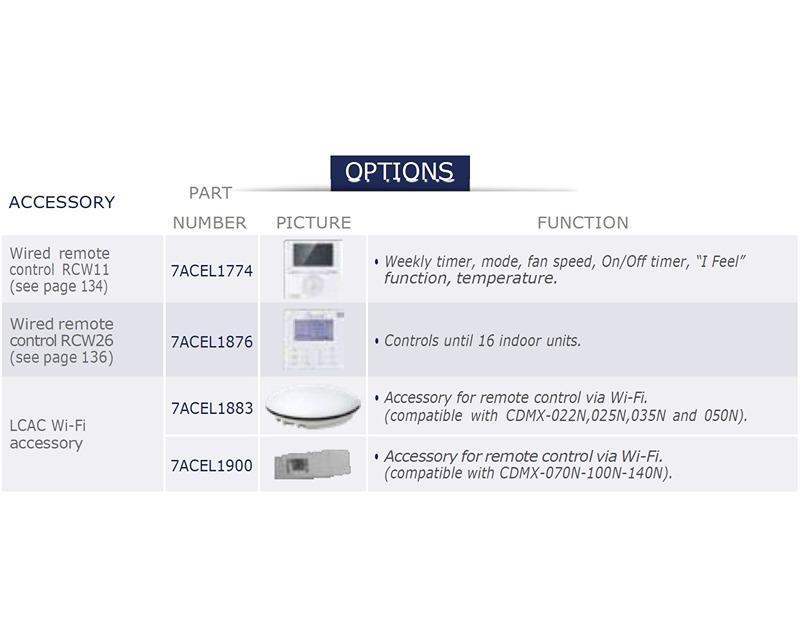

• On/Off contact for room card control (optional)
• Alarm contact (synthesis fault)
• Room sensor for "I Feel" mode (activated by pressing TURBO for 7 seconds)
• Condensate pump
• Electronic expansion valve
• Golden Fin treatment for corrosion protection
• Wide operating range (-15°C to 60°C cooling, -15°C to 24°C heating)

Included Components

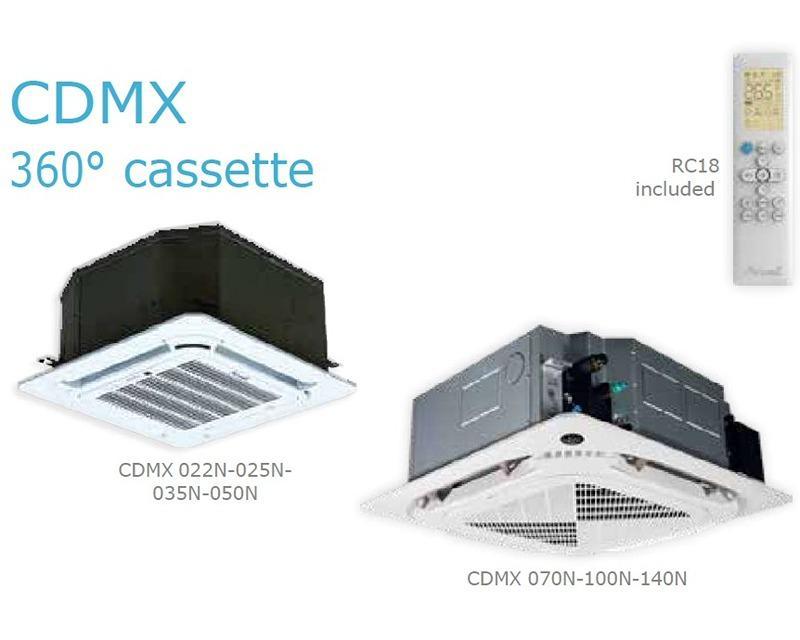

• RC18 remote control
• Compact design
• 360° airflow
