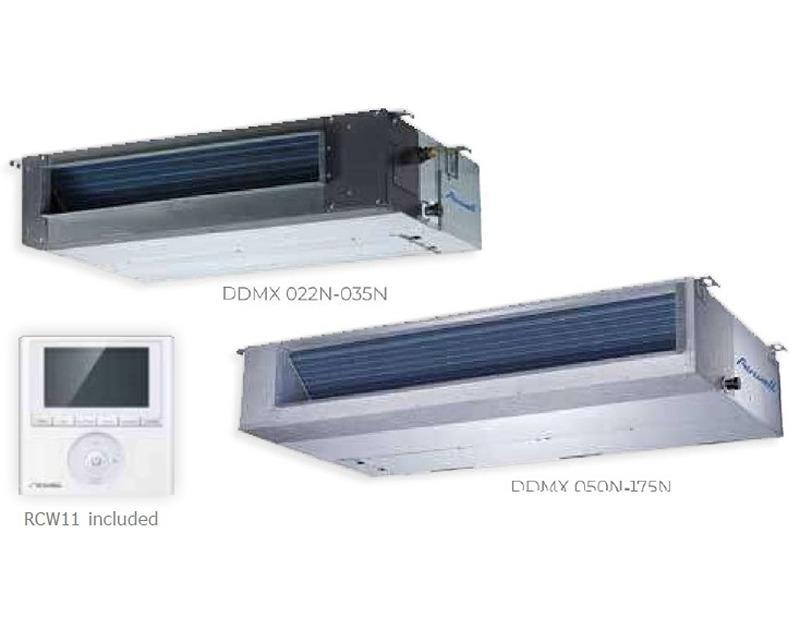

Air Conditioner DDMX Medium-Pressure Ducted (3PH)
2350
/PcsAvailable

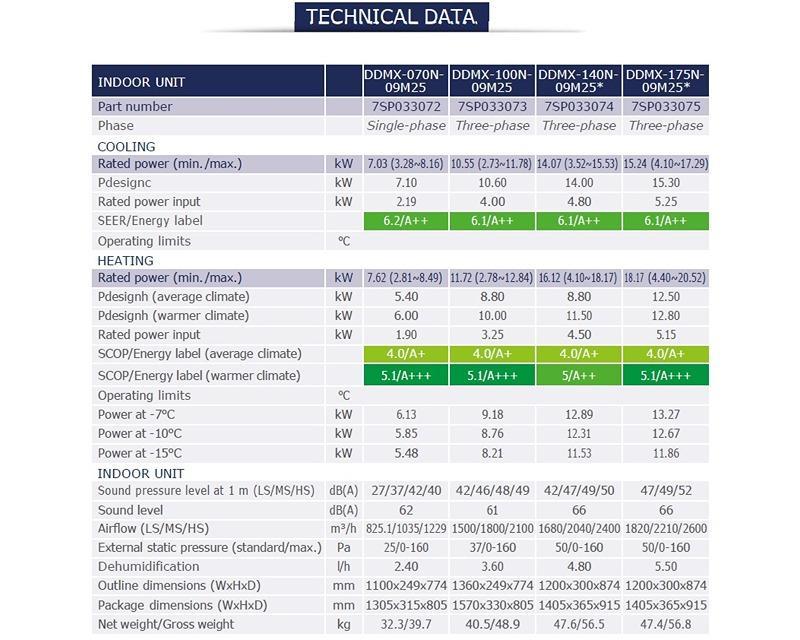

Air Conditioner DC Inverter R32 /T3
- 10.55 kW (3 Ton)
- 14.07 kW (4 Ton)
- 15.24 kW (4.4 Ton)
- Current Rating (on each phase):
- 4.5 A
- 5.5 A
- 6.5 A
- Warranty: 6 Years
DDMX-100N
Product Details:
- Unit Weight (kg):
- IDU: 40.5
- ODU: 75.5
- Unit Length (cm):
- IDU: 136
- ODU: 94.6
- Unit Width (cm):
- IDU: 77.4
- ODU: 41
- Unit Height (cm):
- IDU: 24.9
- ODU: 81
Packaging Details:
- Length (cm):
- IDU: 157
- ODU: 109
- Width (cm):
- IDU: 80.5
- ODU: 50
- Height (cm):
- IDU: 33
- ODU: 88.5
- Cubic Meter: 0.90
DDMX-140N
Product Details:
- Unit Weight (kg):
- IDU: 47.6
- ODU: 103.7
- Unit Length (cm):
- IDU: 120
- ODU: 95.2
- Unit Width (cm):
- IDU: 87.4
- ODU: 41.5
- Unit Height (cm):
- IDU: 30
- ODU: 133.2
Packaging Details:
- Length (cm):
- IDU: 140.5
- ODU: 109.5
- Width (cm):
- IDU: 91.5
- ODU: 49.5
- Height (cm):
- IDU: 36.5
- ODU: 148
- Cubic Meter: 1.28
DDMX-175N
Product Details:
- Unit Weight (kg):
- IDU: 47.6
- ODU: 107
- Unit Length (cm):
- IDU: 120
- ODU: 95.2
- Unit Width (cm):
- IDU: 87.4
- ODU: 41.5
- Unit Height (cm):
- IDU: 30
- ODU: 133.2
Packaging Details:
- Length (cm):
- IDU: 140.5
- ODU: 109.5
- Width (cm):
- IDU: 91.5
- ODU: 49.5
- Height (cm):
- IDU: 36.5
- ODU: 148
- Cubic Meter: 1.28
SUSTAINABLE DEVELOPMENT
- Energy label A++ in cooling mode and A+ in heating mode, guaranteeing energy savings.
USER
- Invisible solution that can adapt to all types of interiors.
- Wide range adapted to your needs.
- Quiet due to its installation in a false ceiling.
INSTALLER
- Compact design, ideal for tight spaces.
- Static pressure (160 Pa) suitable for long duct lengths.
- Unit with pre-drilled holes for fresh air supply to the room.
- Maximum piping length up to 75m adapted to complex and remote installations.

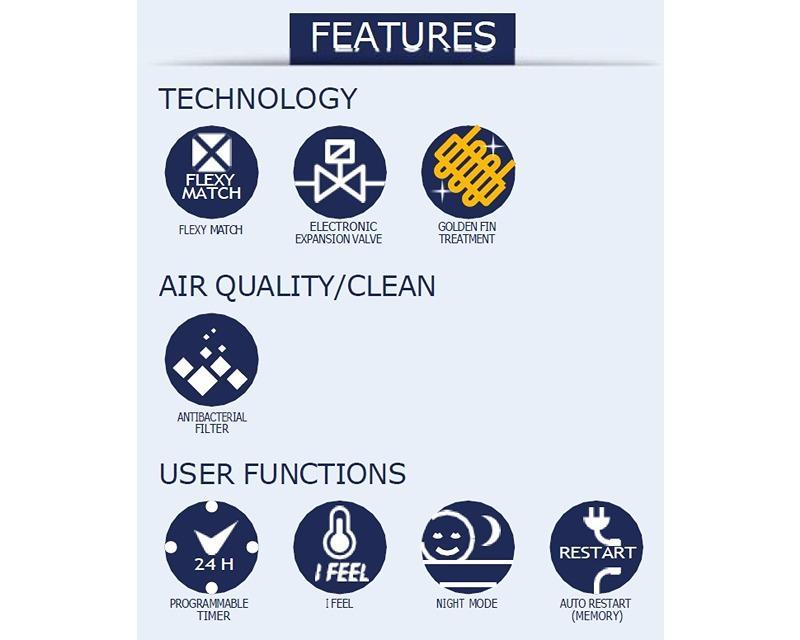

TECHNOLOGY
- On/Off contact included for better control and energy savings.
- Alarm contact (synthesis fault) included.
- Room sensor built into the remote control for better comfort ("I Feel" mode).
- Condensate pump included for automatic discharge.
- Golden Fin treatment on heat exchangers (external and internal) for corrosion protection.
- Wide operating range of -15°C to 60°C in cooling mode and -15°C to 24°C in heating mode.
PRODUCT

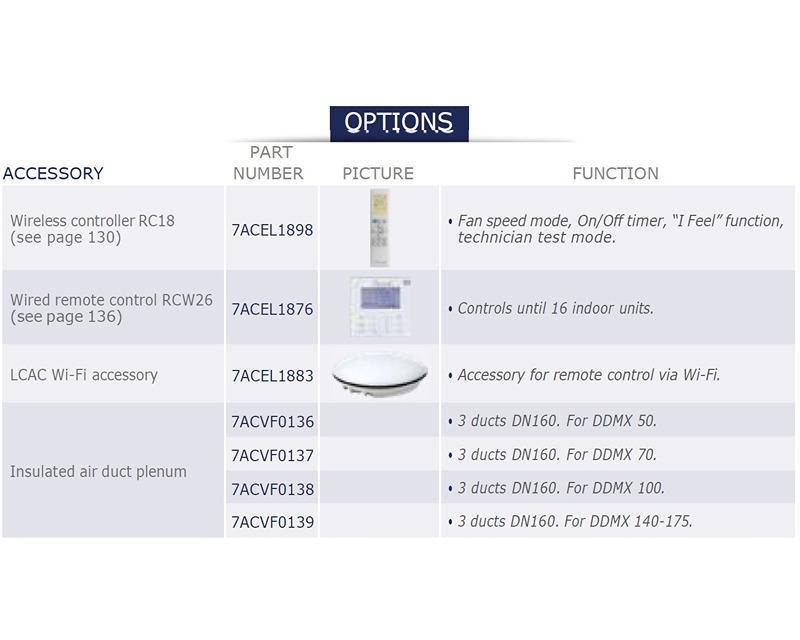

- RCW11 remote control included.
- Discreet, compact, and high performance.
- Airzone compatible.
