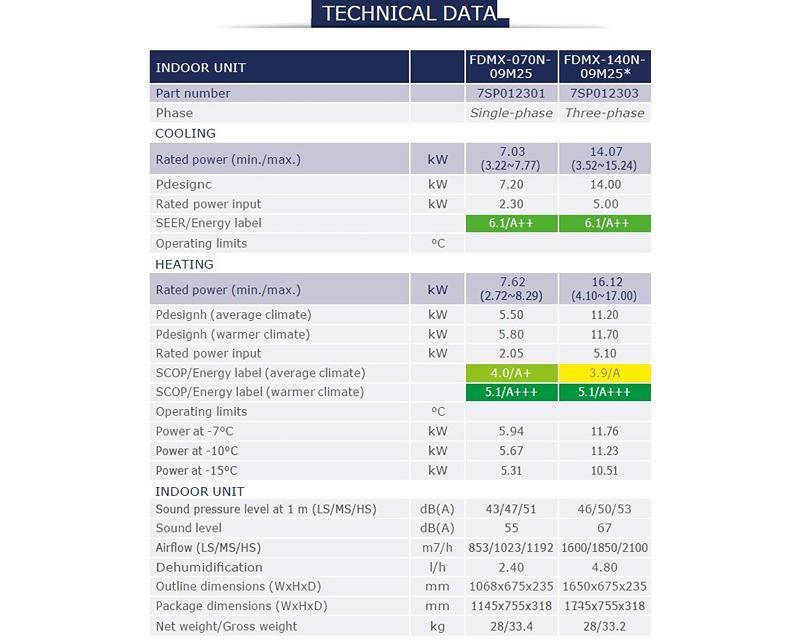

FMX070N

Unit Dimensions

• IDU: Weight: 28 kg, Length: 106.8 cm, Width: 23.5 cm, Height: 67.5 cm

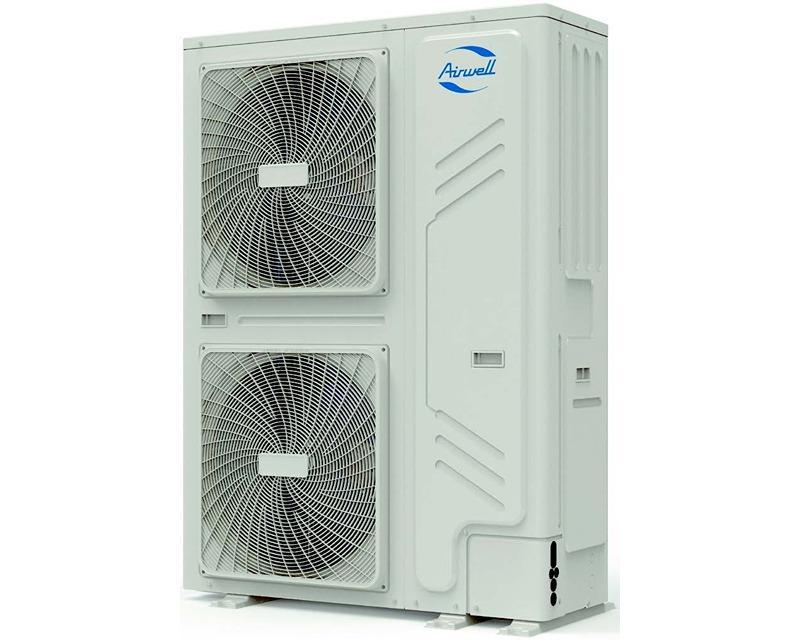

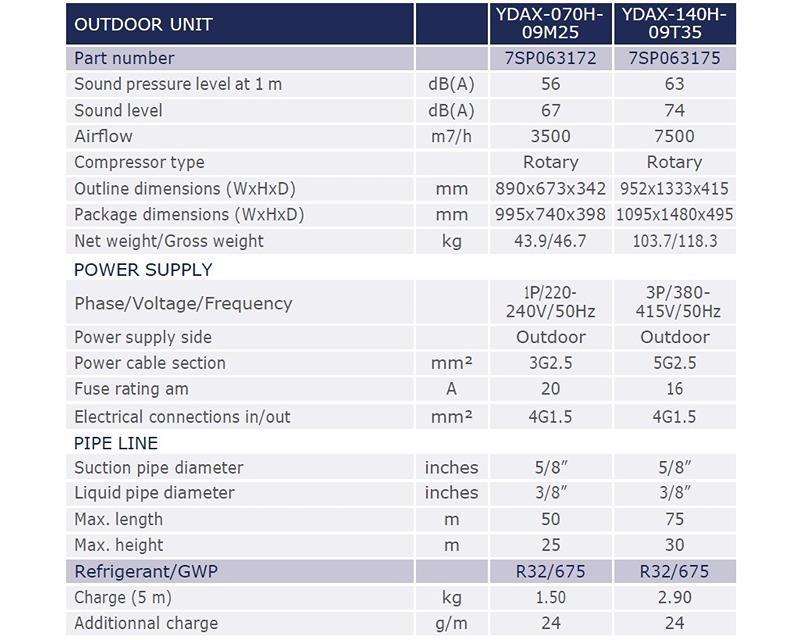

• ODU: Weight: 43.9 kg, Length: 89 cm, Width: 34.2 cm, Height: 67.3 cm

Packaging Dimensions

• IDU: Length: 114.5 cm, Width: 31.8 cm, Height: 75.5 cm, Cubic Meter: 0.56
• ODU: Length: 99.5 cm, Width: 39.8 cm, Height: 74 cm

FMX140N

Unit Dimensions

• IDU: Weight: 41.7 kg, Length: 165 cm, Width: 23.5 cm, Height: 67.5 cm
• ODU: Weight: 95.2 kg, Length: 95.2 cm, Width: 41.5 cm, Height: 133.3 cm

Packaging Dimensions

• IDU: Length: 172.5 cm, Width: 31.8 cm, Height: 75.5 cm, Cubic Meter: 1.2
• ODU: Length: 109.5 cm, Width: 49.5 cm, Height: 148 cm

Product Features

Sustainable Development

• Energy label A++ in cooling mode and A+ in heating mode (model-dependent)

User Comfort

• Discreet design (235 mm depth)

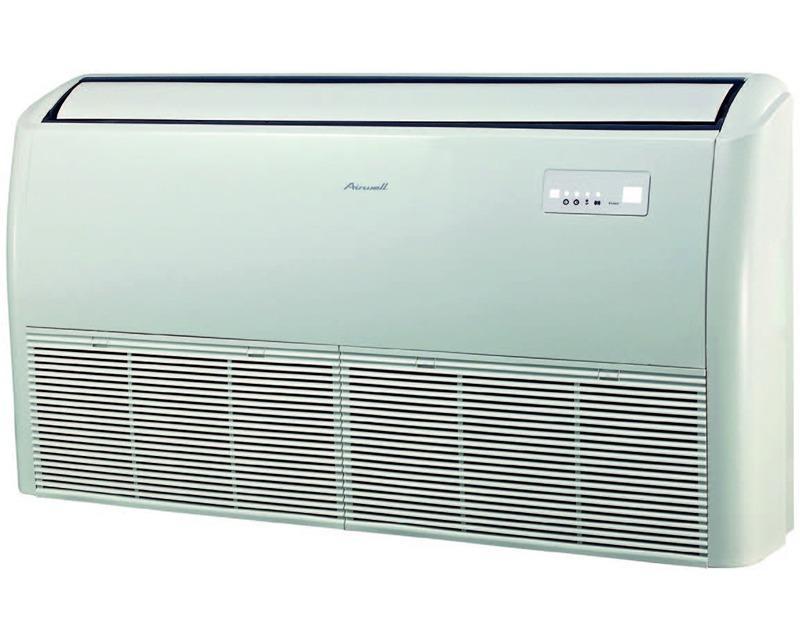

• Wall or ceiling installation

Installer Features

• Parameter reading
• Optimized air louvers (up to 11 m)
• Long piping length (up to 75 m)

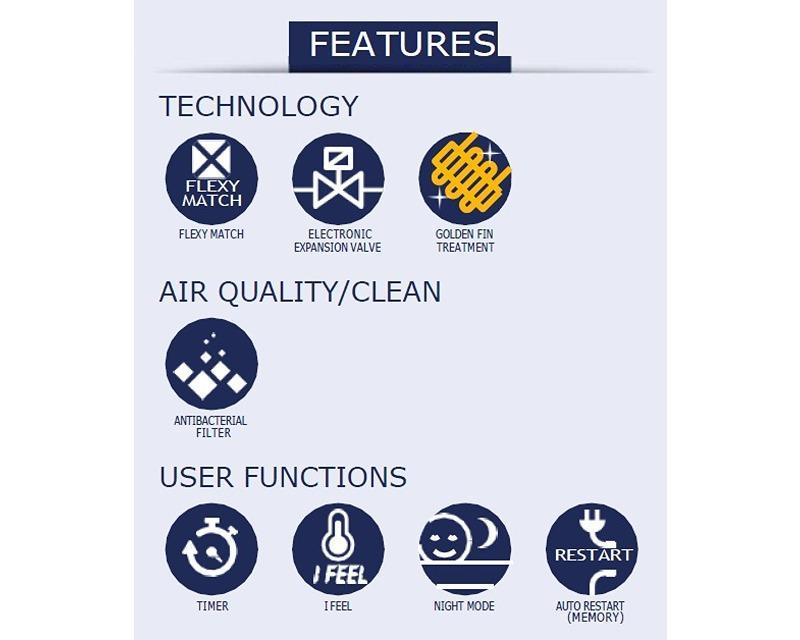

Technology

• Multi-directional air louvers
• Room sensor for "I Feel" mode (activated by pressing TURBO for 7 seconds)

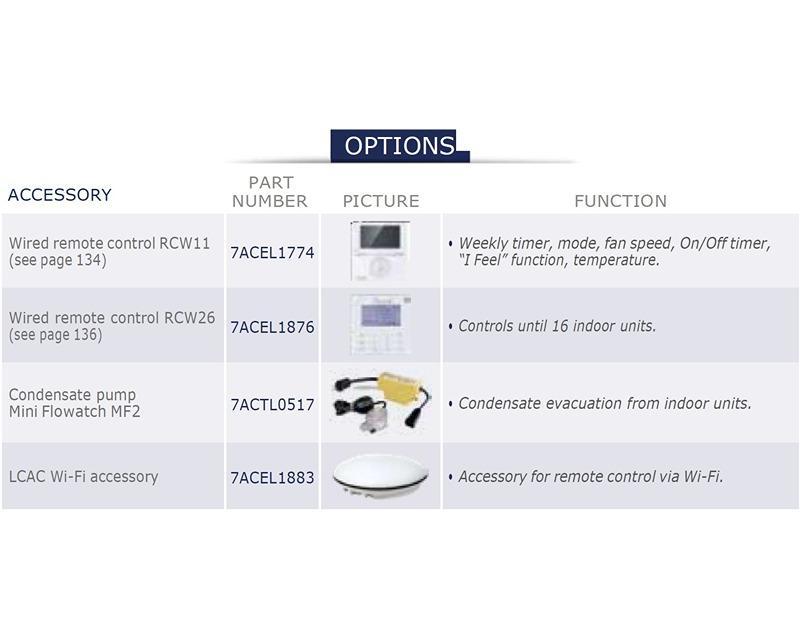

• On/Off contact for room card control (optional)
• Golden Fin treatment for corrosion protection
• Wide operating range (-15°C to 60°C cooling, -15°C to 24°C heating)

Included Components

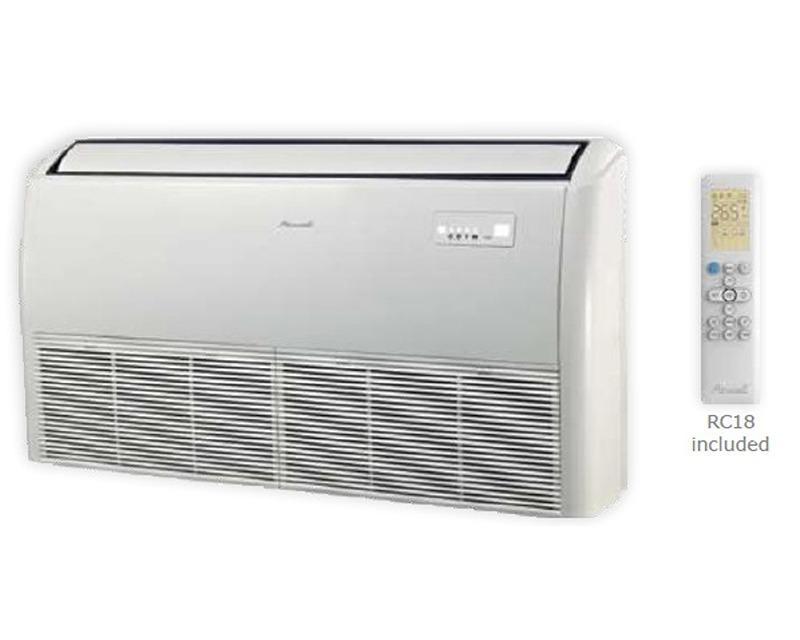

• RC18 remote control
• Floor or ceiling installation options
• Slim design
• Long distance air throw
