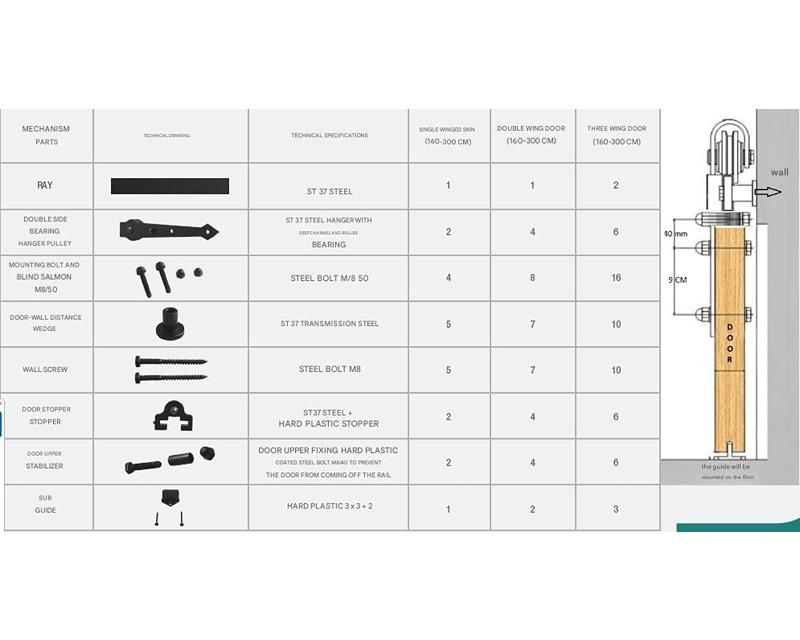

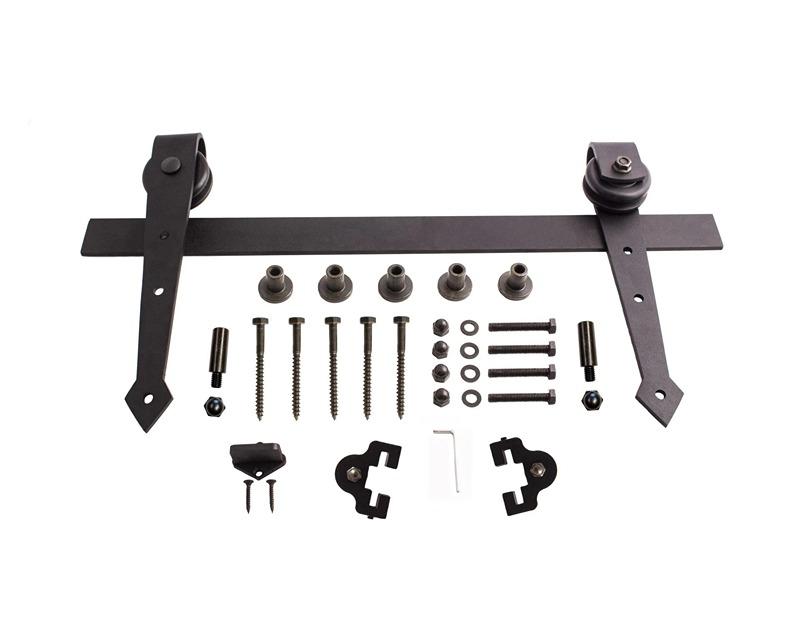

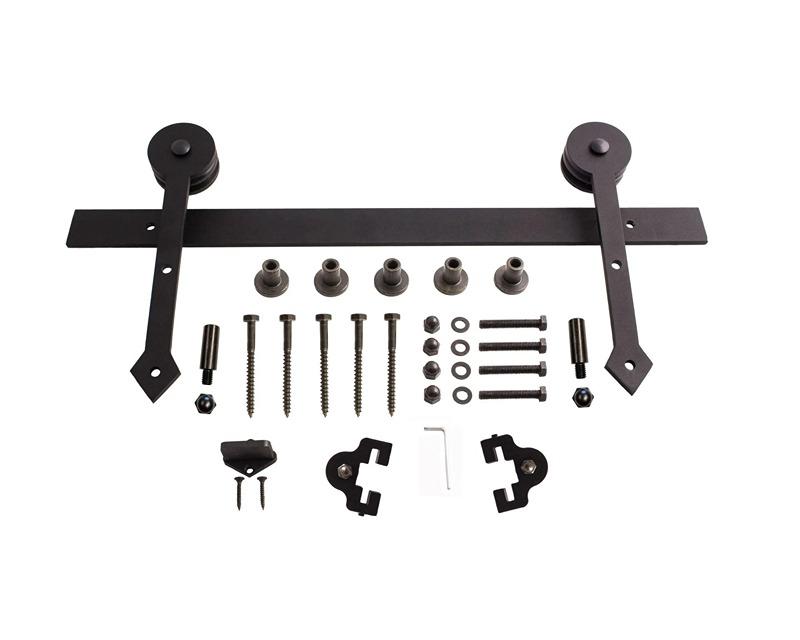

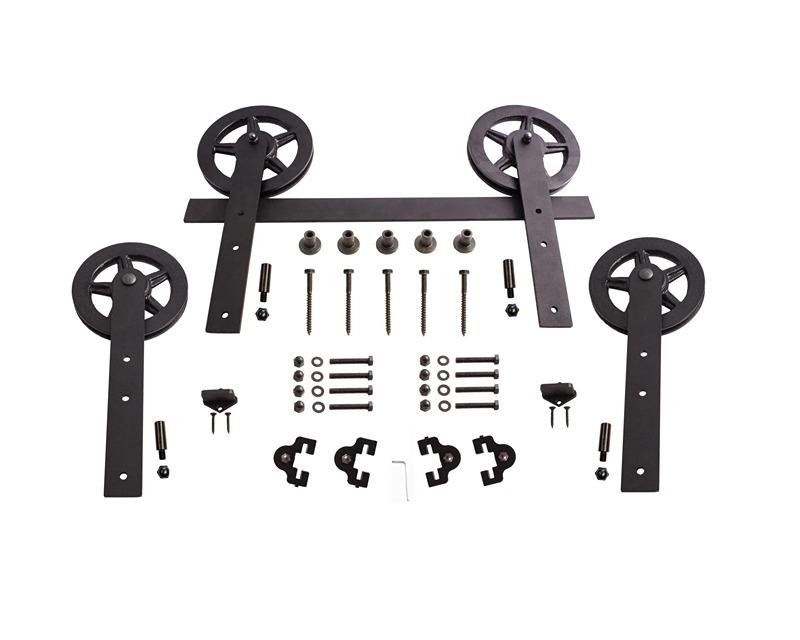

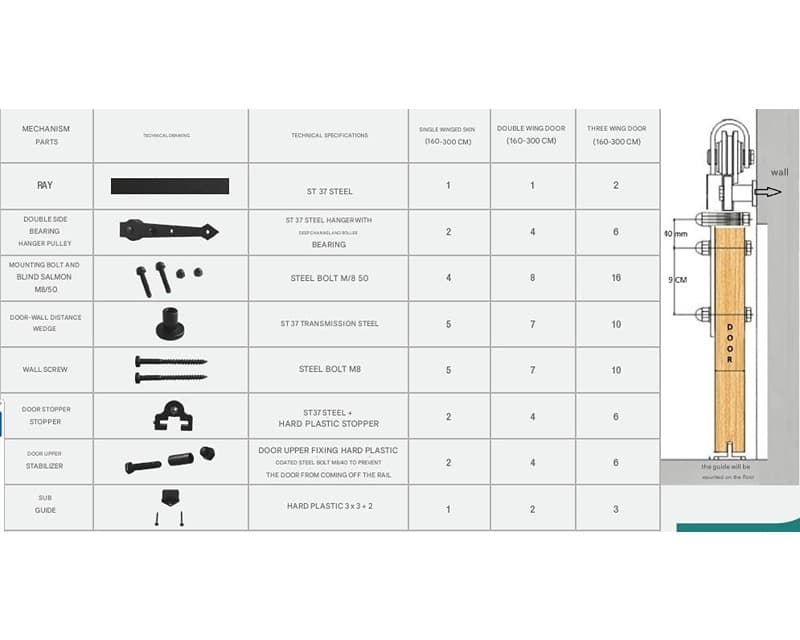

TECHNICAL SPECIFICATIONS OF THE MECHANISM Product Name: Barn Door Model Door/Cabinet Sliding System Model Name: Arrow Model Single Wing Sliding System Door Weight: Carrying capacity up to 0+500kg. Number of Wings: 1 Wing. Installation Method: By screwing. Wing Width: 80-150cm Length: 160-300 cm rail options available. Slowing Feature: None, can be installed if requested. Door Thickness (Minimum): 20mm+50mm. You can request connecting bolts according to the wing thickness. Mounting Location: Mounting can be done on wall, wood, metal area. Is There an Adjustment Possibility: It is possible to stop it at the desired location regardless of the right or left wing. COMPLEMENTARY PARTS OF THE MECHANISM *1 Piece of Wall Rail in Desired Size Between 160cm - 300cm *2 Pieces Arrow Model Door Hanger Pulley (steel + derlin + 2 pieces of bearing) *5 Pieces of Wall Rail Distance Wedges (high quality transmission shaft) *2 Pieces Door Side Stopper Stopper (10 mm steel + rubber head bolt + allen head bolt + allen key) *2 Pieces Door Top Lock (rubber head m8*40 bolt + crown nut) *1 Door Bottom Guide [hard plastic + 2 mounting screws + 2 plastic dowels (the channel to be opened under the door leaf must be width: 7mm, h: 20 mm in size for the door to be aligned.)] *4 Pieces m8*55mm Bolt + Crown Nut *5 Pieces M8*100mm Wall Mounting Trifon Screws + 5 Pieces Dowel All Steel Parts Are Coated Black Against Rust... NOTE 1: When you buy this product, you only buy the mechanism. The product does not include a door. We make doors on special orders. If you want to buy a door, you can look at the "Sliding Doors" category on our website . NOTE 2: As the number of wings in the mechanism increases, the content of the product changes. If you are considering purchasing this mechanism, please contact us . The technical information we will receive from you and the list of all parts that need to be purchased will be sent to you. IT IS NOT POSSIBLE TO COMPLETE THE ORDER WITHOUT SELECTING THE RAIL LENGTH. FOR THOSE WHO DON'T KNOW HOW TO SELECT; THERE MUST BE A SPACE AS MUCH AS THE WIDTH OF THE DOOR WHERE THE DOOR WILL OPEN. FOR EXAMPLE, IF YOUR DOOR IS 80 CM, 160 CM RAIL; IF YOUR DOOR IS 85 CM, 180 CM RAIL WILL BE ENOUGH. *EXTRA PRICE IS APPLIED FOR RAILS 220 CM AND ABOVE.* NOTE 3: When purchasing retarder stoppers, you should consider the following: For example, for a single door mechanism, when 1 piece is selected, you can complete your order depending on which direction of your door you want to use the retarder system - either when opening or closing; when 2 pieces are selected, you can create your order depending on whether you want to use it on both directions of your door - both for opening and closing.
