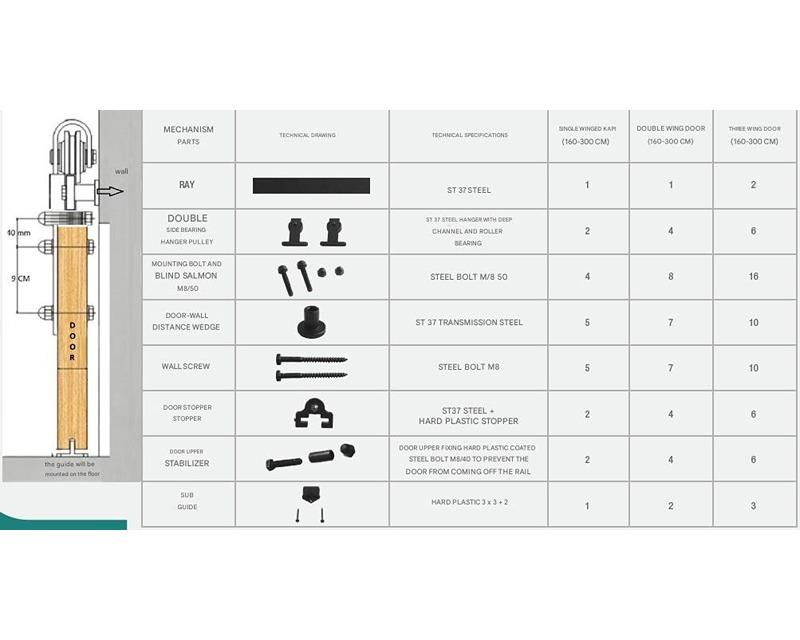

TECHNICAL SPECIFICATIONS OF THE MECHANISM Product Name: Barn Door Model Door/Cabinet Sliding System Model Name: Top Mounted Cane Model Double Wing Sliding System Door Weight: Carrying capacity up to 0+500kg. Number of Wings: 2 Wings. Installation Method: By screwing. Wing Width (Maximum): 75 cm Length: 160-300 cm rail options available. Slowing Feature: None, can be installed if requested. Door Thickness (Minimum): 20mm+50mm. You can request connecting bolts according to the wing thickness. Mounting Location: Mounting can be done on wall, wood, metal area. Is There an Adjustment Possibility: It is possible to stop it at the desired location regardless of the right or left wing. COMPLEMENTARY PARTS OF THE MECHANISM *1 Piece of Wall Rail in Desired Size Between 160cm - 300cm *4 Pieces of Top Mounted Cane Model Door Hanger Reels *8 Pieces of Mounting Screws *4 Pieces Door Side Stopper Stopper *4 Pieces of Door Upper Lock *2 Pieces of Door Bottom Guide [hard plastic + 4 pieces of mounting screws + 2 pieces of plastic dowels (the channel to be opened under the door leaf must be width: 7mm, h: 20 mm in size for the door to be aligned.)] *5 Pieces of Wall Rail Distance Wedge *5 Pieces M8*100mm Wall Mounting Trifon Screws + 5 Pieces Dowel All Steel Parts Are Coated Black Against Rust... NOTE 1: When you buy this product, you only buy the mechanism. The product does not include a door. We make doors on special orders. If you want to buy a door, you can look at the "Sliding Doors" category on our website . NOTE 2: As the number of wings in the mechanism increases, the content of the product changes. If you are considering purchasing this mechanism, please contact us . The technical information we will receive from you and the list of all parts that need to be purchased will be sent to you. *IT IS NOT POSSIBLE TO COMPLETE THE ORDER WITHOUT SELECTING THE RAIL LENGTH. FOR THOSE WHO DON'T KNOW HOW TO SELECT THE RAIL LENGTH; 4 TIMES THE WIDTH OF THE DOOR IS TAKEN AS A BASIS. FOR EXAMPLE, IF THE SINGLE WING WIDTH IS 60 CM, 240 CM RAIL; IF THE SINGLE WING WIDTH IS 75 CM, 30 0 CM RAIL WILL BE ENOUGH. IF THE DOOR WIDTH IS 80 CM AND ABOVE ; YOU NEED TO ORDER TWO PIECES OF THE SINGLE DOOR MODEL OF THE MODEL YOU LIKE. *EXTRA PRICE IS APPLIED FOR RAILS 220 CM AND ABOVE.* NOTE 3: When purchasing retarder stoppers, you should consider the following: For example, for a double door mechanism, when 2 pieces are selected, you can attach the retarder system to the areas where your door closes (in the middle of the rail) or to the areas where it opens (at both ends of the rail); when 4 pieces are selected, you can use it in both directions of your door - both in the opening and closing areas.
