Barn Door(TAMBUR) Model Door/Cabinet Sliding System
123.21249999999999
/SetAvailable
Warranty Period
24 Months
The manufacturing time for quantities exceeding 50 pieces is one month

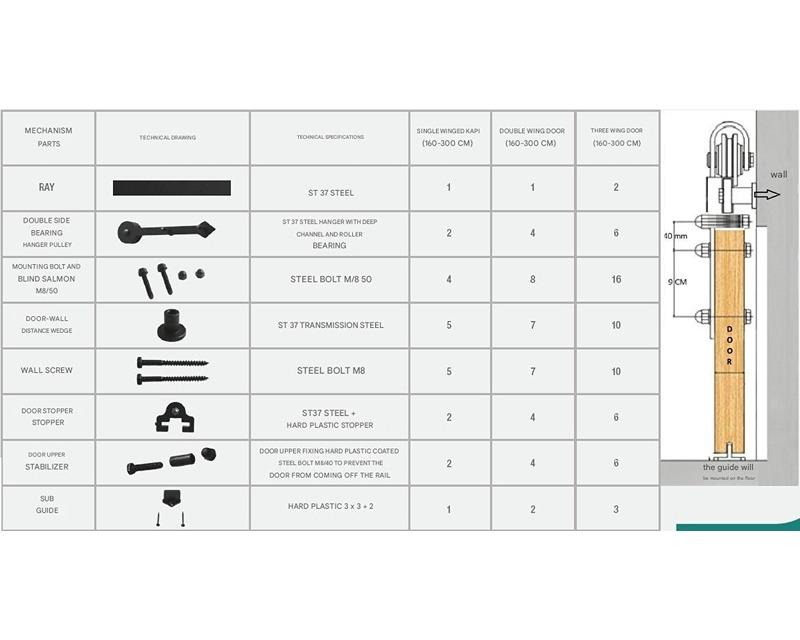

TECHNICAL SPECIFICATIONS OF THE MECHANISM Product Name: Barn Door Model Door/Cabinet Sliding System Model Name: Drum Model Single Wing Sliding System Door Weight: Carrying capacity up to 0+500kg. Number of Wings: 1 Wing. Installation Method: By screwing. Wing Width: 80-150cm Length: 160-300 cm rail options available. Slowing Feature: None, can be installed if requested. Door Thickness (Minimum): 20mm+50mm. You can request connecting bolts according to the wing thickness. Mounting Location: Mounting can be done on wall, wood, metal area. Is There an Adjustment Possibility: It is possible to stop it at the desired location regardless of the right or left wing. COMPLEMENTARY PARTS OF THE MECHANISM *1 Piece of Wall Rail in Desired Size Between 160cm - 300cm *2 Pieces Drum Model Door Hanger Roller *4 Pieces m8*55mm Bolt + Crown Nut *2 Pieces Door Side Stopper *2 Pieces of Door Upper Lock *1 Door Bottom Guide [hard plastic + 2 mounting screws + 2 plastic dowels (the channel to be opened under the door leaf must be width: 7mm, h: 20 mm in size for the door to be aligned.)] *5 Wall Rail Distance Wedges *5 Pieces M8*100mm Wall Mounting Trifon Screws + 5 Pieces Dowel All Steel Parts Are Coated Black Against Rust... NOTE 1: When you buy this product, you only buy the mechanism. The product does not include a door. We make doors on special orders. NOTE 2: As the number of wings in the mechanism increases, the content of the product changes. IT IS NOT POSSIBLE TO COMPLETE THE ORDER WITHOUT SELECTING THE RAIL LENGTH. FOR THOSE WHO DON'T KNOW HOW TO SELECT; THERE MUST BE A SPACE AS MUCH AS THE WIDTH OF THE DOOR WHERE THE DOOR WILL OPEN. FOR EXAMPLE, IF YOUR DOOR IS 80 CM, 160 CM RAIL; IF YOUR DOOR IS 85 CM, 180 CM RAIL WILL BE ENOUGH.
TECHNICAL SPECIFICATIONS OF THE MECHANISM Product Name: Barn Door Model Door/Cabinet Sliding System Model Name: Drum Model Single Wing Sliding System Door Weight: Carrying capacity up to 0+500kg. Number of Wings: 1 Wing. Installation Method: By screwing. Wing Width: 80-150cm Length: 160-300 cm rail options available. Slowing Feature: None, can be installed if requested. Door Thickness (Minimum): 20mm+50mm. You can request connecting bolts according to the wing thickness. Mounting Location: Mounting can be done on wall, wood, metal area. Is There an Adjustment Possibility: It is possible to stop it at the desired location regardless of the right or left wing. COMPLEMENTARY PARTS OF THE MECHANISM *1 Piece of Wall Rail in Desired Size Between 160cm - 300cm *2 Pieces Drum Model Door Hanger Roller *4 Pieces m8*55mm Bolt + Crown Nut *2 Pieces Door Side Stopper *2 Pieces of Door Upper Lock *1 Door Bottom Guide [hard plastic + 2 mounting screws + 2 plastic dowels (the channel to be opened under the door leaf must be width: 7mm, h: 20 mm in size for the door to be aligned.)] *5 Wall Rail Distance Wedges *5 Pieces M8*100mm Wall Mounting Trifon Screws + 5 Pieces Dowel All Steel Parts Are Coated Black Against Rust... NOTE 1: When you buy this product, you only buy the mechanism. The product does not include a door. We make doors on special orders. NOTE 2: As the number of wings in the mechanism increases, the content of the product changes. IT IS NOT POSSIBLE TO COMPLETE THE ORDER WITHOUT SELECTING THE RAIL LENGTH. FOR THOSE WHO DON'T KNOW HOW TO SELECT; THERE MUST BE A SPACE AS MUCH AS THE WIDTH OF THE DOOR WHERE THE DOOR WILL OPEN. FOR EXAMPLE, IF YOUR DOOR IS 80 CM, 160 CM RAIL; IF YOUR DOOR IS 85 CM, 180 CM RAIL WILL BE ENOUGH.
