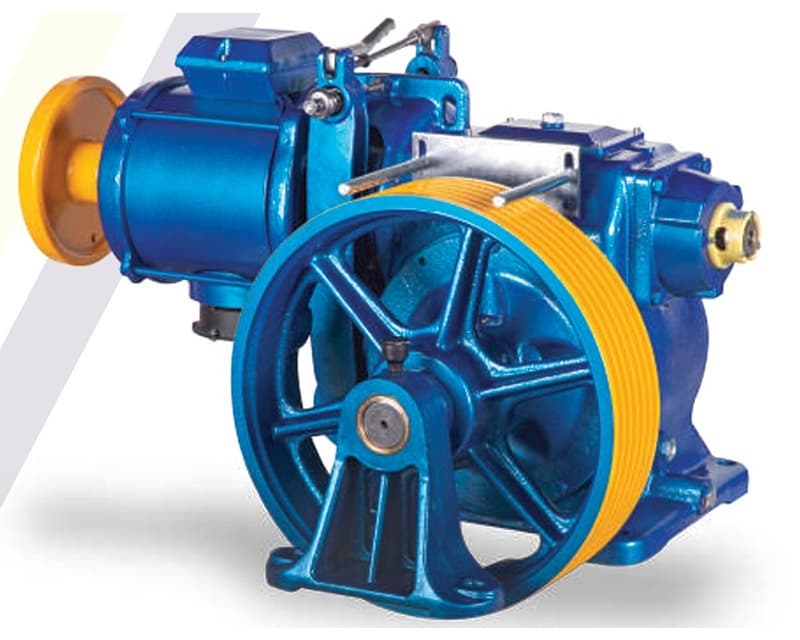

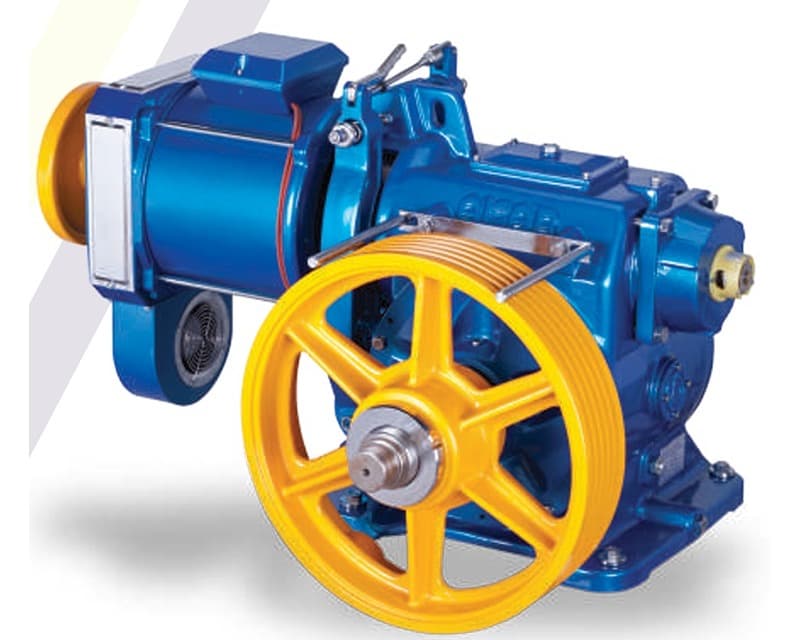

DAK Traction Elevator Machine 3VF | Speed: 1 m/s | Suspension: 1:2
1736.35
/PcsAvailable
Product Info:
Motor Driving Type: 3VF
Car Speed = 1 m/s | 1:2 Suspension
Load: 600-630 kg
Motor Type:DAK 170
Pulley Diameter (mm): Ø560
No. of Ropes x Rope Diameter (mm): 4xØ10
Motor Power (kW): 7.5
Load Current (I-Ampere): 17
Maximum Static Load (kg): 3300*
Machine Oil Capacity: 4,5 lt
ADVANTAGES OF DAK 170
- Ease of montage.
- Noise level is under 50 dB and vibration value is 0,7mm/sec which are both lower than the standard values.
- Energy saver due to its high efficiency.
DAK 170 elevator machine and motors have TSEK (Certificate of Conformance to Criteria) from TSE - Turkish Standards Institution.
Brake Voltage: 198V DC (Others Optional)
Motor Voltage: 380V (Others Optional)
Frequency: 50Hz (Others Optional)
Efficiency (η): 0,68 - 0,80
