DAK Traction Elevator Machine AC1 | Speed: 0.25 m/s | Suspension: 1:1
919.1875
/PcsAvailable
Product Info:
Motor Driving Type: AC1 With Traction Sheave
Car Speed = 0.25 m/s | 1:1 Suspension
Travel Distance(m): 15
Load: 100 kg
Motor Type:DAK 80
Pulley Diameter (mm): Ø260
No. of Ropes x Rope Diameter (mm): 2xØ8
Motor Power (kW): 0.55
Load Current (I-Ampere): 1.7
Maximum Static Load (kg): 750
Machine Oil Capacity: 1,25 lt

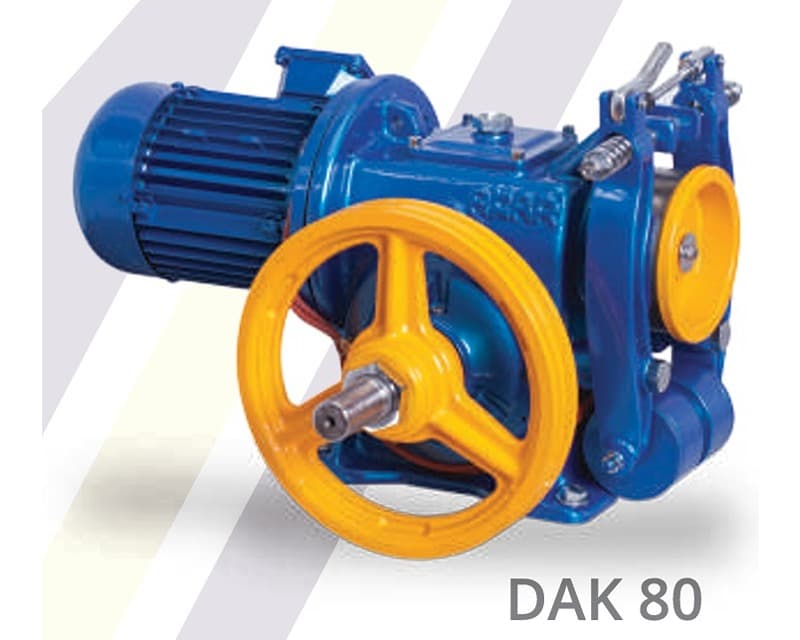

ADVANTAGES OF DAK 80 / DAK 80 T
- Light and powerful.
- Ease of montage due to its small dimension.
- Does not require counter weight due to its model with winding drum (DAK 80 T).
- Noise level is under 50 dB and vibration value is 0,7mm/sec which are both lower than the standard values.
- Energy saver due to its high efficiency.
Brake Voltage: 48V DC
Motor Voltage: 380V (Others Optional)
Frequency: 50Hz (Others Optional)
Efficiency (η): 0,60 - 0,63
