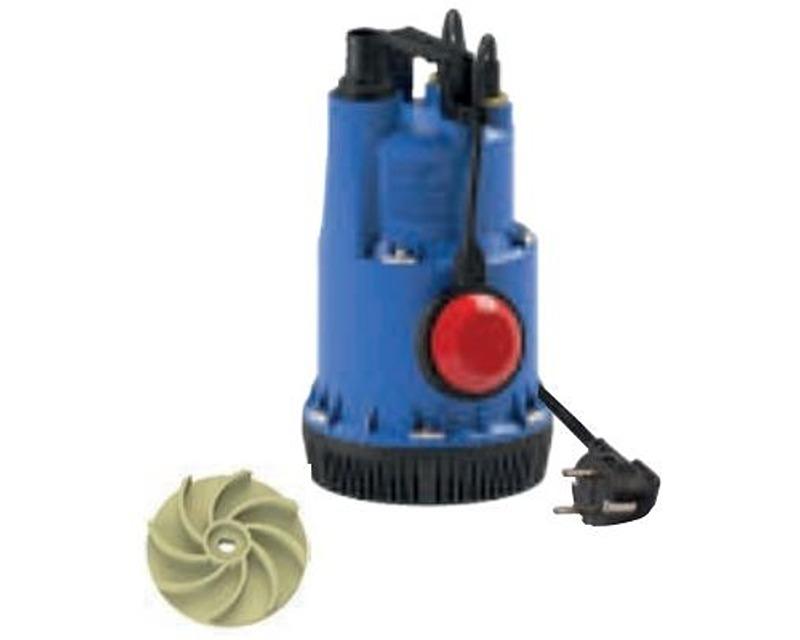

Drainage Submersible Pumps SDF13
Drainage pumps with single-phase electric, easy-to-install, self-running, floatered submersible drainage pumps.
It is manufactured at frequencies of 50 Hz and 60 Hz.
These pumps with a Techno Polymer body are easily portable, easy to install
and automatically operating (with floater) pumps. Designed for use in the
drainage of clear or few dirty water.
It has
COOLING JACKET, stainless engine body, internal thermal protection and automatic reset.
These pumps are used in residential areas, basement water and elevator shafts, industrial facilities, waterfalls, basement water, ornamental pools, standing water, and for discharge of water containing maximum 3 mm particles.

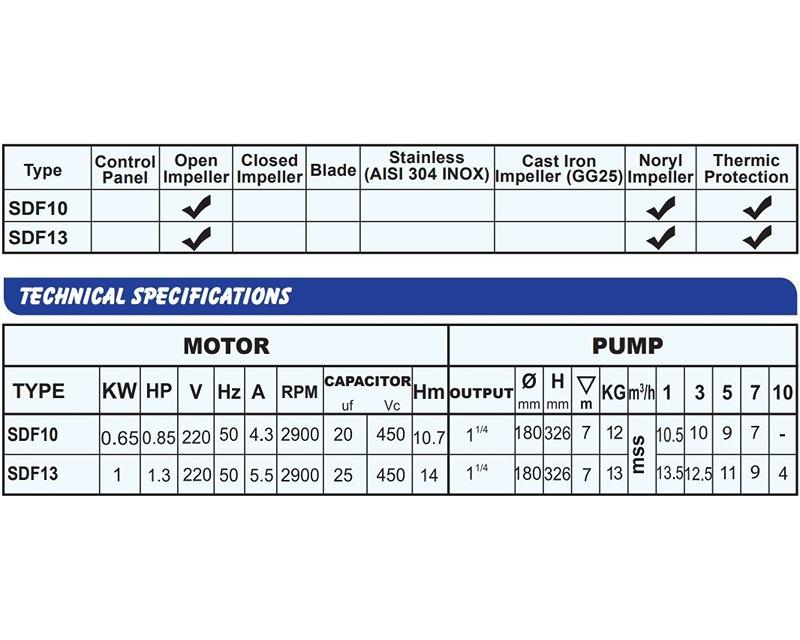

Pump Body:PPH
Impeller:Noryl
Shaft:Aisi 304 Inox

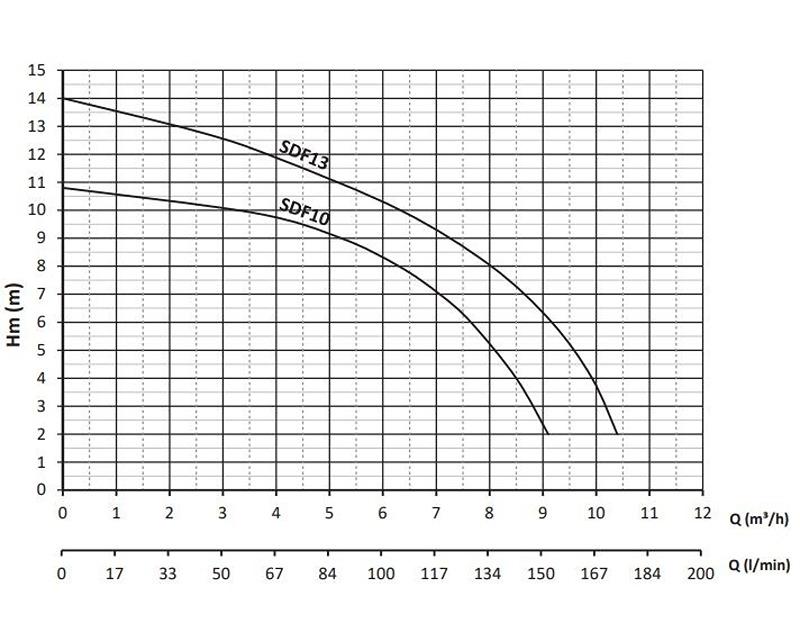

Flow Rate (max.):10.5 m³/hour
Total Head (max.):14m
Liquid Temperature:0-30°C
Protection Class:IP 68
Insulation:CI.F
Cable Length:10 m
Mechanical Seal:SIC / SIC
Pump Durability Pressure (Pmax):3 bar
