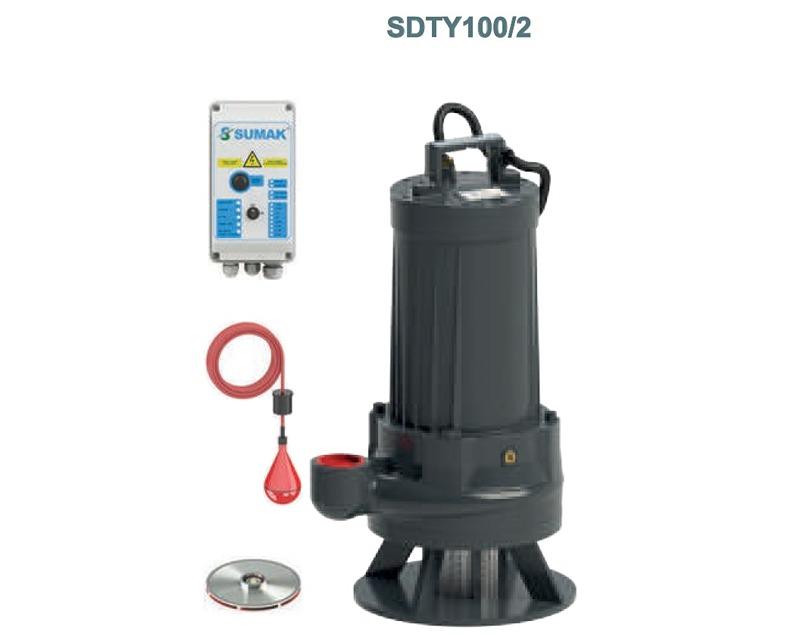

Few Dirty Water Submersible Pumps SDTY100/2
These high altitude pumps with cast iron body are automatic operation (with floaters) pumps.
It is designed for use in the drainage of clean or few dirty water.
It has a long life and provides quiet operation due to its oil cooled engine design.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
These pumps are used in residential areas, industrial facilities, tunnels, mines and quarries, construction foundation pits that require vertical discharge, and for the discharge of water containing max. 3 mm particles.

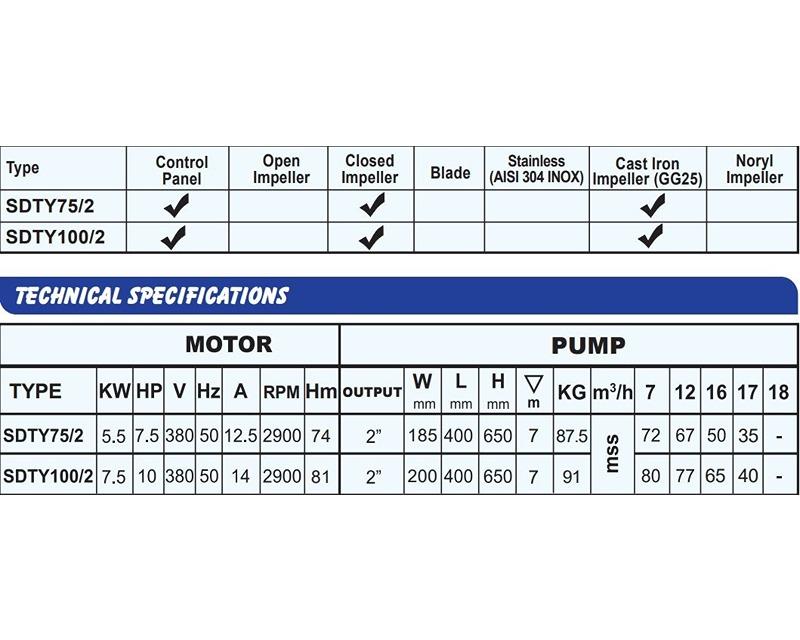

PUMP BODY:GG25 CAST IRON
Impeller:GG25 CAST IRON
SHAFT:AISI 304 INOX

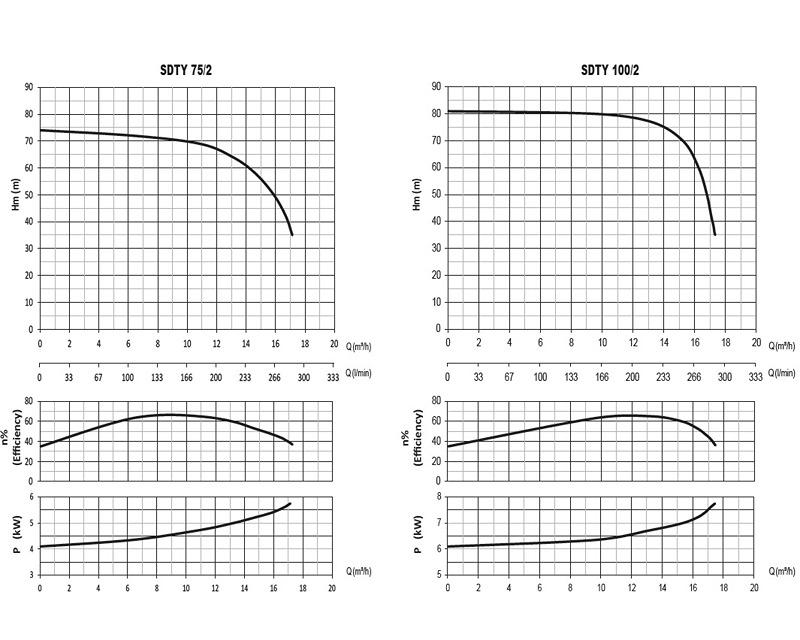

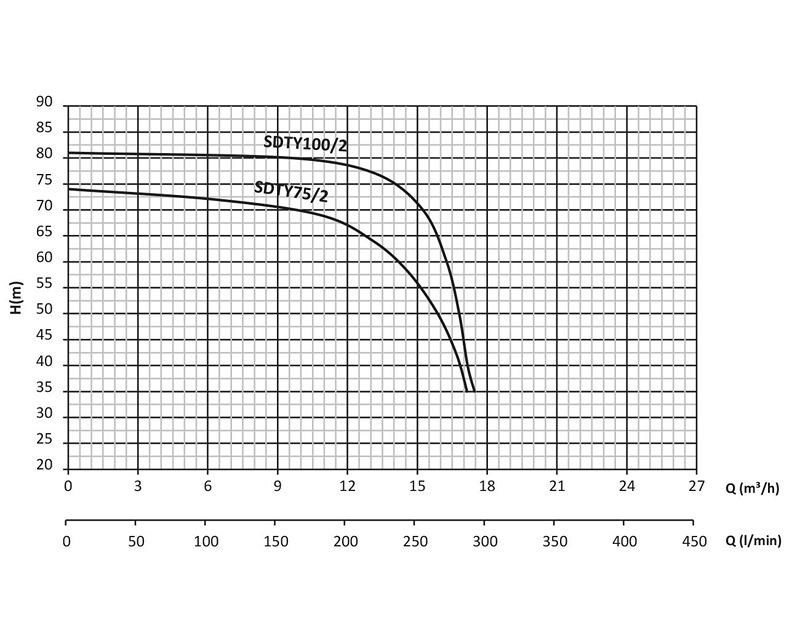

FLOW RATE ( max. ):18 m³/hour
Total Head ( max. ):81 m
LIQUID TEMPERATURE:0-30 °C
PROTECTION CLASS:IP 68
INSULATION:CI.F
CABLE LENGHT:10 m
MECHANICAL SEAL:SIC / SIC
PUMP DURABILITY PRESSURE (Pmax):12 bar
PUMP BODY:GG25 CAST IRON
Impeller:GG25 CAST IRON
SHAFT:AISI 304 INOX
FLOW RATE ( max. ):18 m³/hour
Total Head ( max. ):81 m
LIQUID TEMPERATURE:0-30 °C
PROTECTION CLASS:IP 68
INSULATION:CI.F
CABLE LENGHT:10 m
MECHANICAL SEAL:SIC / SIC
PUMP DURABILITY PRESSURE (Pmax):12 bar
