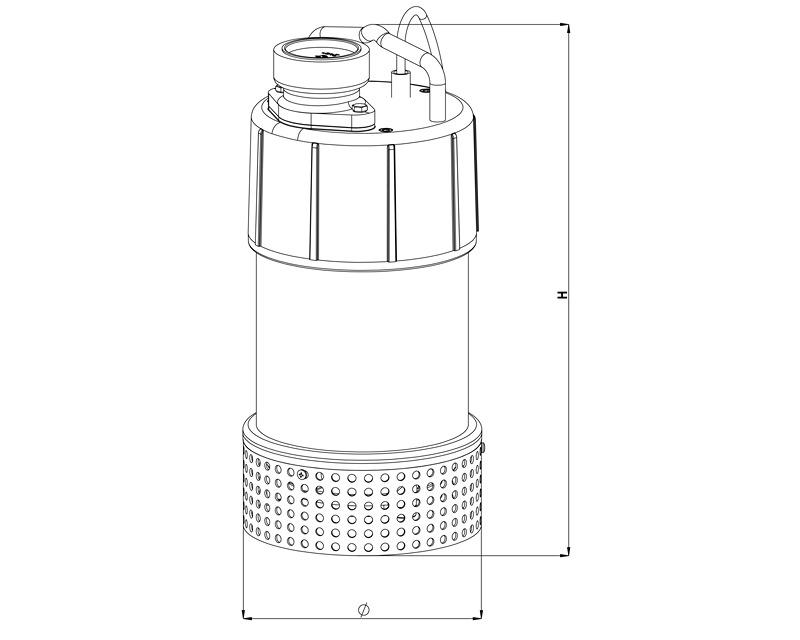

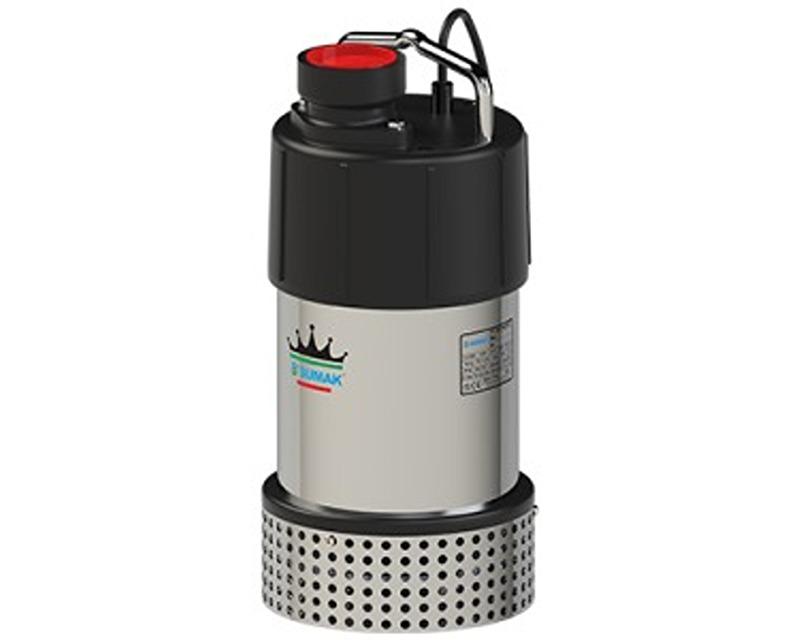

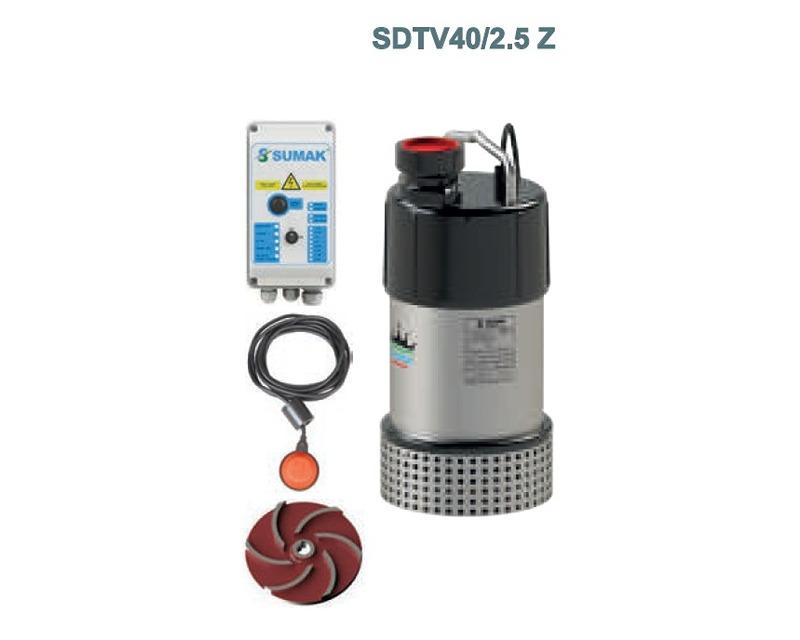

Waste Water Drainage Submersible Pumps With Cooling Jacket SDTV40/2.5Z
These pumps have cast iron body, cooling jacket and vortex impeller.
It is designed for use in the drainage of few dirty water.
It is suitable for long term operation due to the cooling jacket.
The pump body can cool itself without being completely in water.
Having a suction filter provides an advantage against clogging risks.
It has a long life and provides quiet operation due to its oil cooled engine design.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.
These pumps are used in residential areas, industrial facilities, tunnels, mines and quarries, construction foundation pits that require vertical discharge, and for the discharge of water containing max. 8 mm particles.
PUMP BODY:GG25 CAST IRON
Impeller:GG25 CAST IRON
COOLING JACKET:AISI 304 INOX
SUCTION FILTER:AISI 304 INOX
SHAFT:AISI 304 INOX

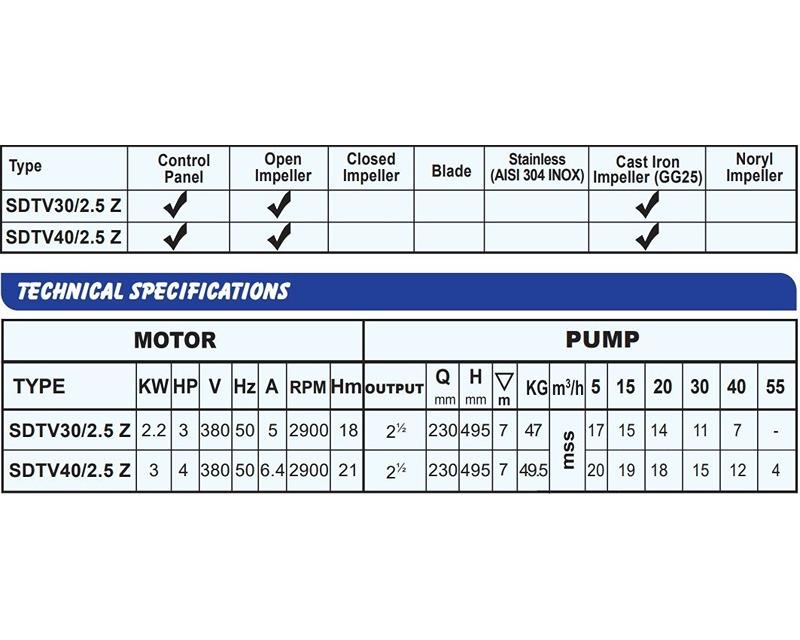

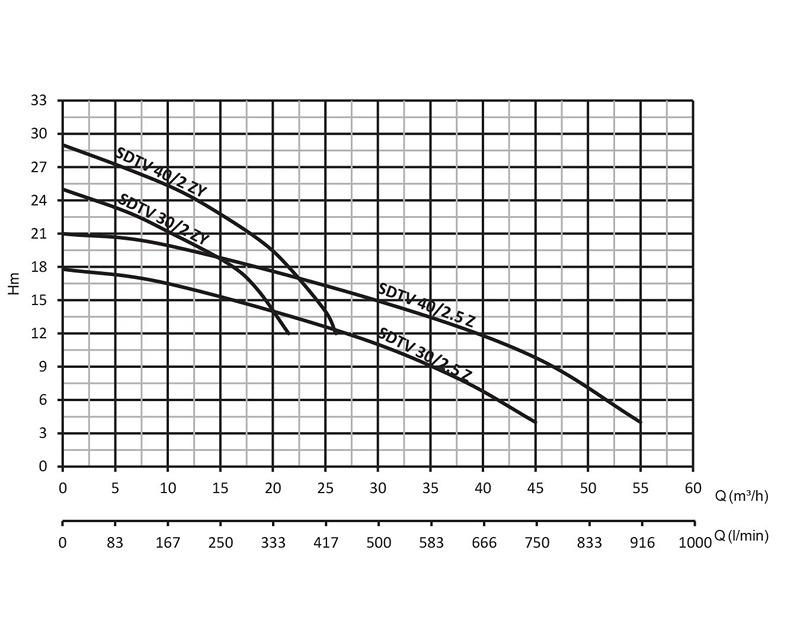

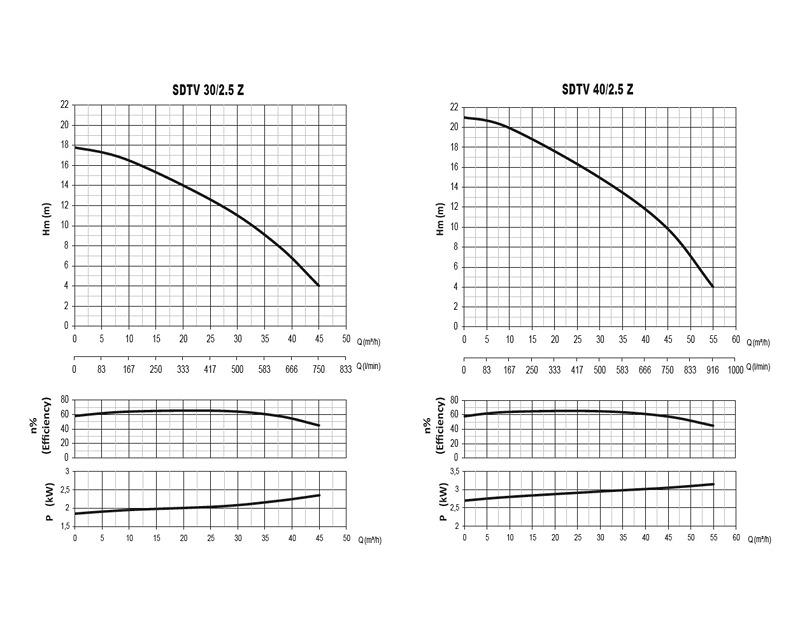

FLOW RATE ( max. ):55 m³/hour
Total Head ( max. ):21 m
LIQUID TEMPERATURE:0-30 °C
PROTECTION CLASS:IP 68
INSULATION:CI.F
CABLE LENGHT:10 m
MECHANICAL SEAL:SIC / SIC
PUMP DURABILITY PRESSURE (Pmax):6 bar
*Optionally, the impeller and input flange can be manufactured as AISI 430.
