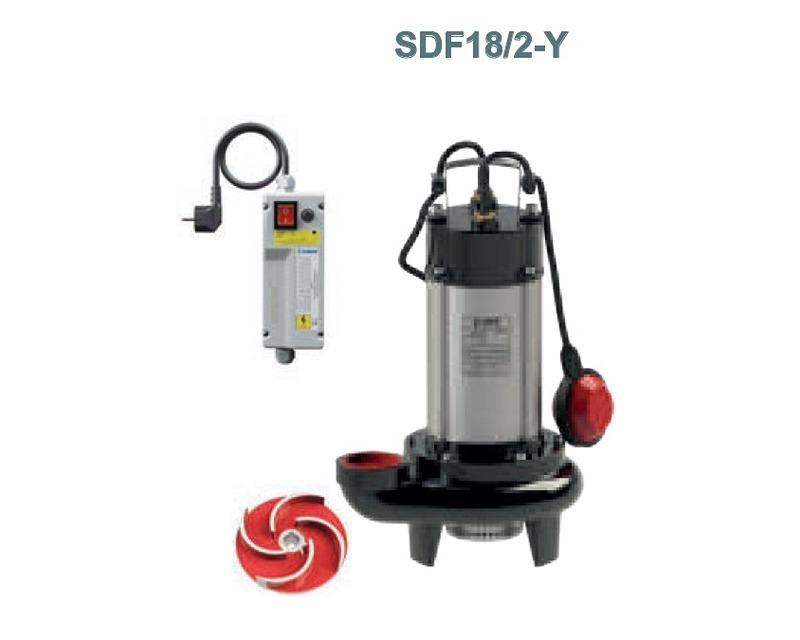

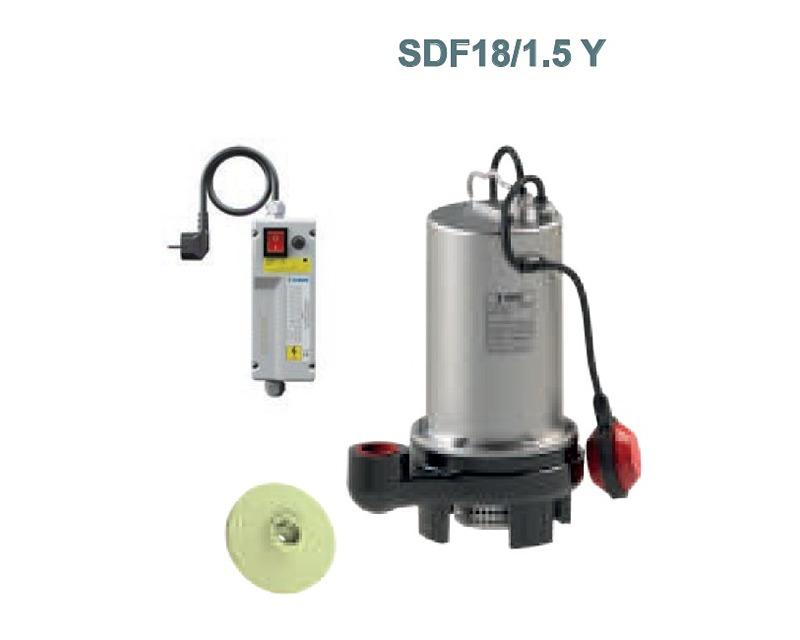

Few Dirty Water Submersible Pumps SDF18/1.5Y-SDF18/2-Y
Dirty water pump work with single-phase electric, easy-to-install, stainless body, self-running, floatered submersible drainage pumps.
This type dirty water pumps manufactured at frequencies of 50 Hz and 60 Hz.
These high altitude pumps with a stainless body are easily portable, easy to
install and automatically operating (with floaters). It is designed for use in
the drainage of clean or few dirty water.
Having a suction filter provides an advantage against clogging risks.
It has a long life and provides quiet operation due to its oil cooled engine
design.
This type pumps using at, waterfall up to a maximum height of 20 m, basement, ornamental pond, building, drainage pit and puddles, and discharges particles not exceeding 36mm.

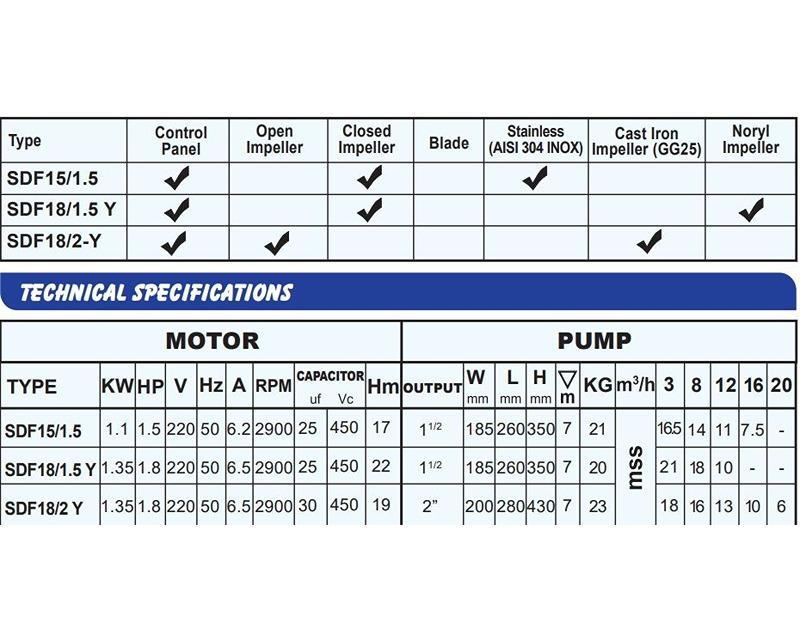

PUMP BODY :AISI 304 INOX
Impeller:AISI 304 INOX (SDF15/1.5) - GG25 CAST IRON(SDF18/2 Y) - NORYL(SDF18/1.5 Y)
SHAFT:AISI 304 INOX

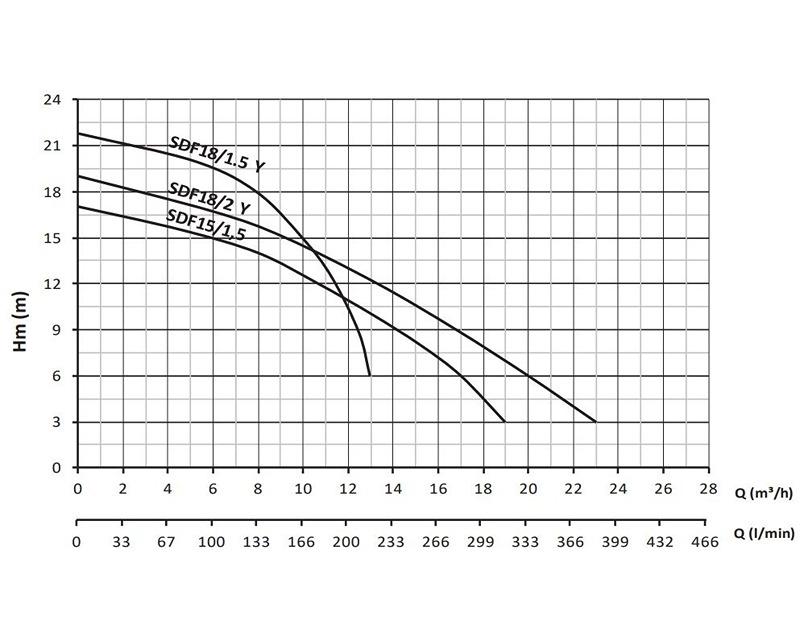

FLOW RATE ( max. ):23 m³/hour
Total Head ( max. ):22 m
LIQUID TEMPERATURE:0-30 °C
PROTECTION CLASS:IP 68
INSULATION:CI.F
CABLE LENGHT:10 m
MECHANICAL SEAL:SIC / SIC
PUMP DURABILITY PRESSURE (Pmax):4 bar
