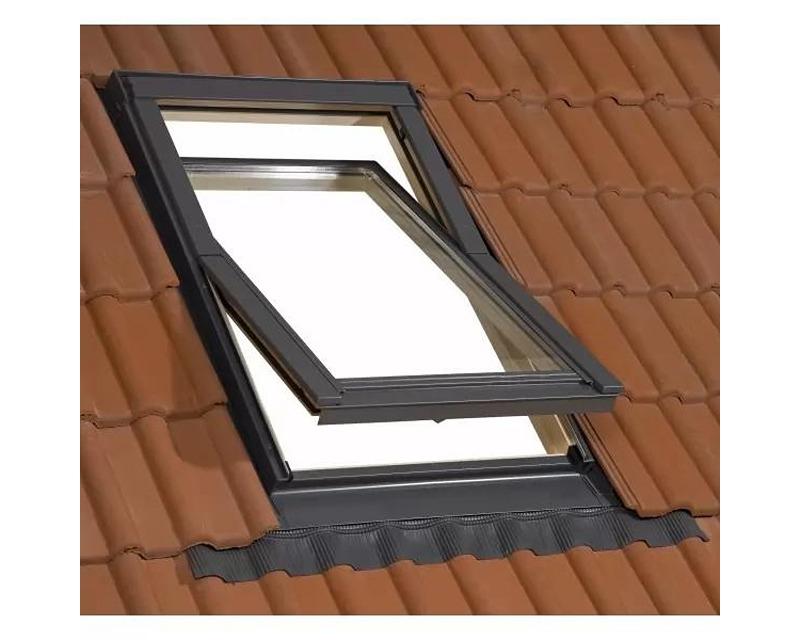

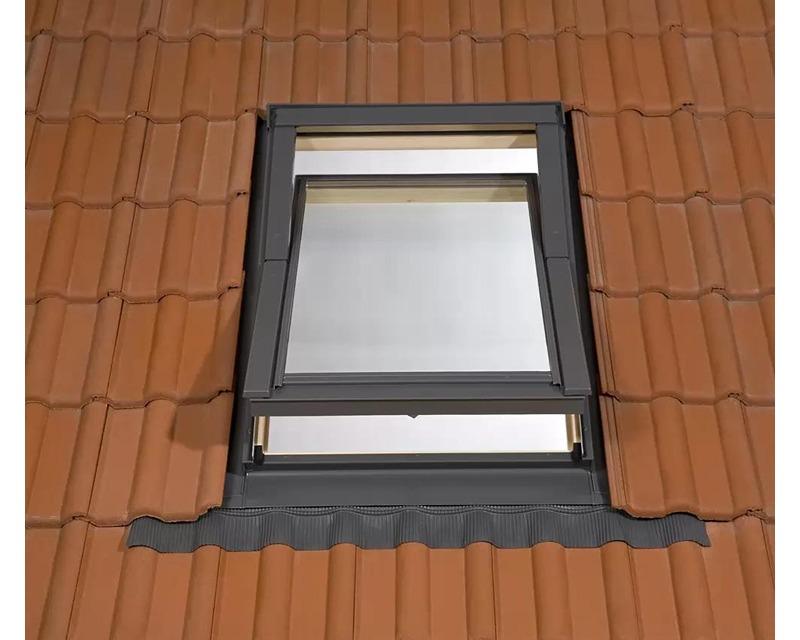

The roof window with the highest price/quality ratio in Europe is now in Turkey. Balio Roof Window provides you with only the products you need. You don't need to pay for more than you need. This product appeals to everyone who has a small budget and is looking for a very good roof window. It can only be used on roofs with a slope of more than 15° or 28%.

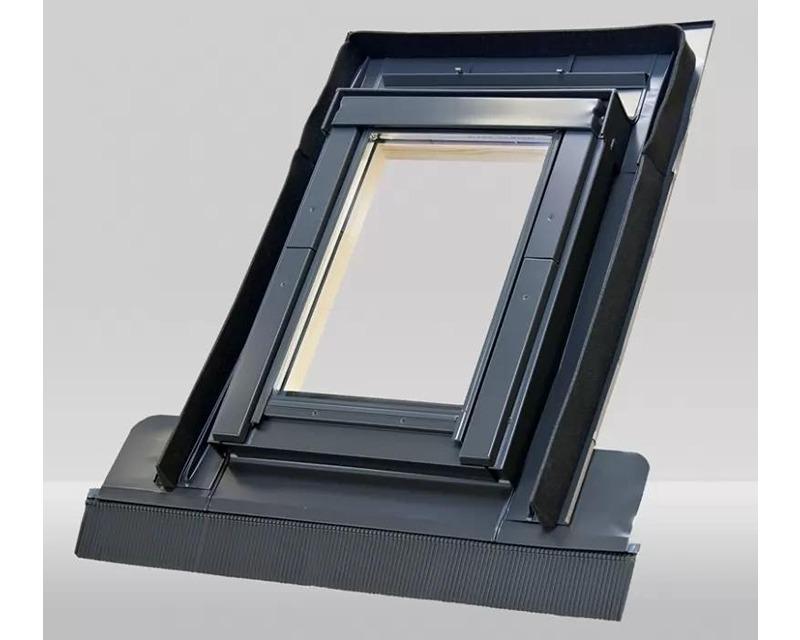

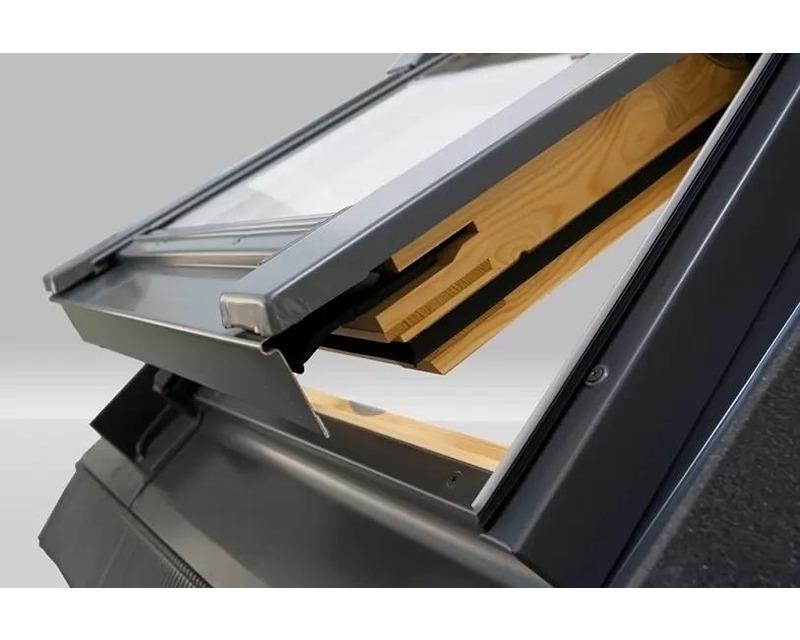

Since it is completely covered with an aluminum skirt, the wooden parts are protected against external factors. The side skirts act as a gutter. In this way, it does not leak water inside.

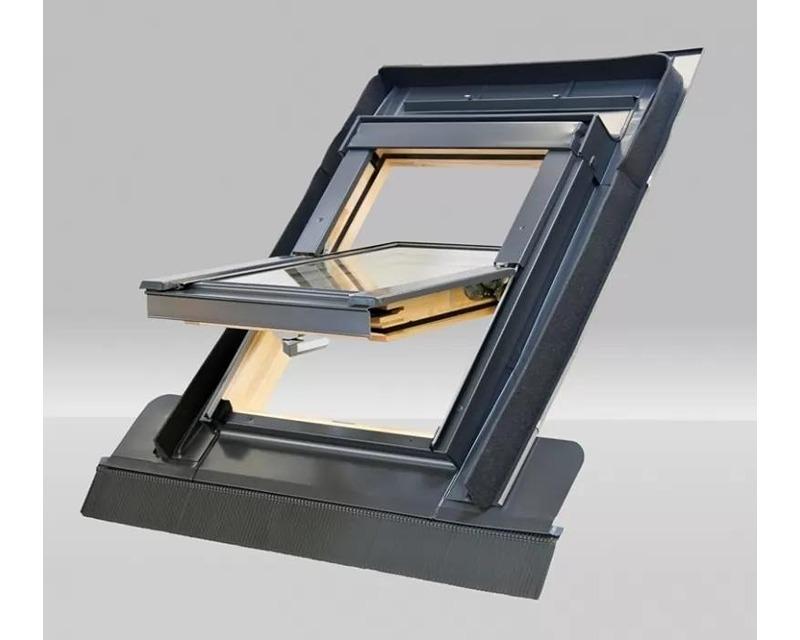

Thanks to the cast zinc arm placed at the bottom, even high-mounted windows can be easily opened.In addition, the sash, which is parallel to the ground, prevents water from flowing in during rainy weather.

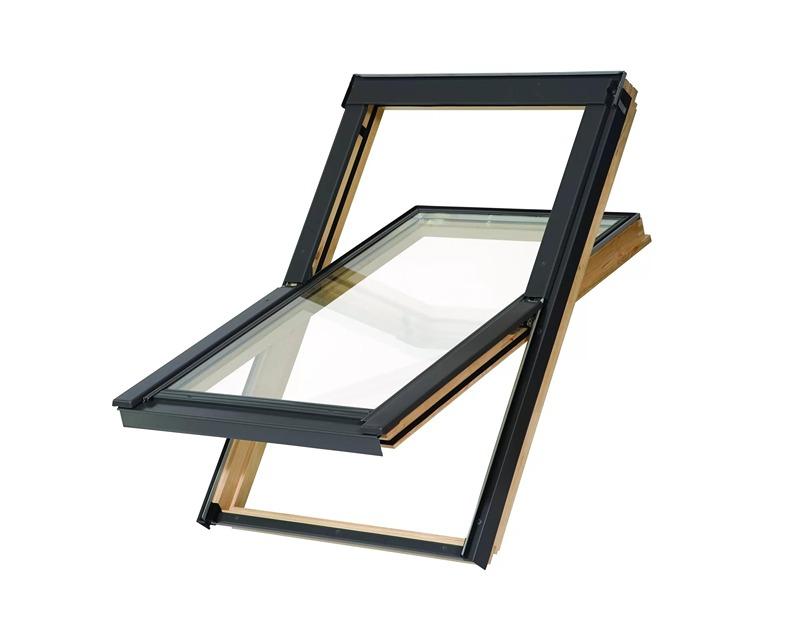

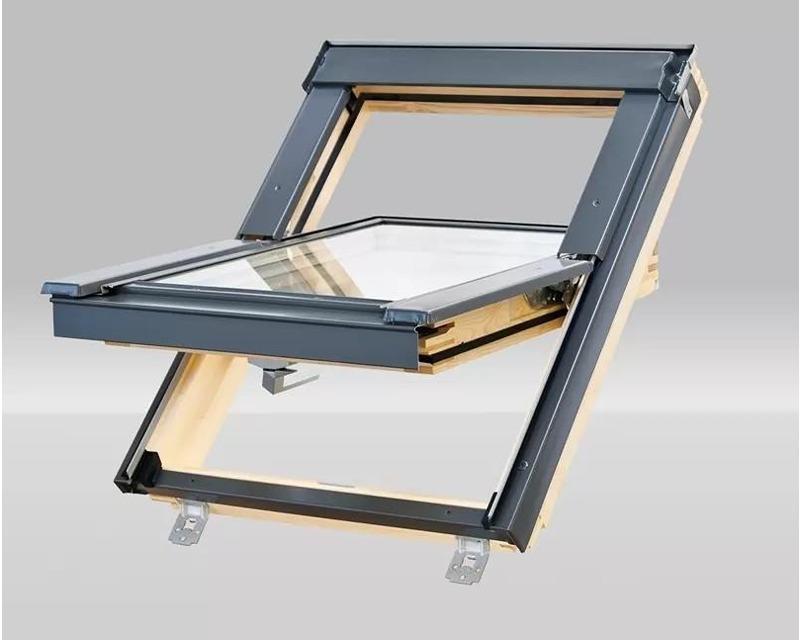

Thanks to its 165° rotating wing, the outer glass turns inward and can be easily cleaned from the inside.In addition, the opening and closing movement can be done with one hand and without moving from your place.

• Easy access with the opening and closing handle placed at the bottom
• Tempered and heat insulated glass (4H+16+4mm)
• Impregnated solid Scandinavian glass body and wing

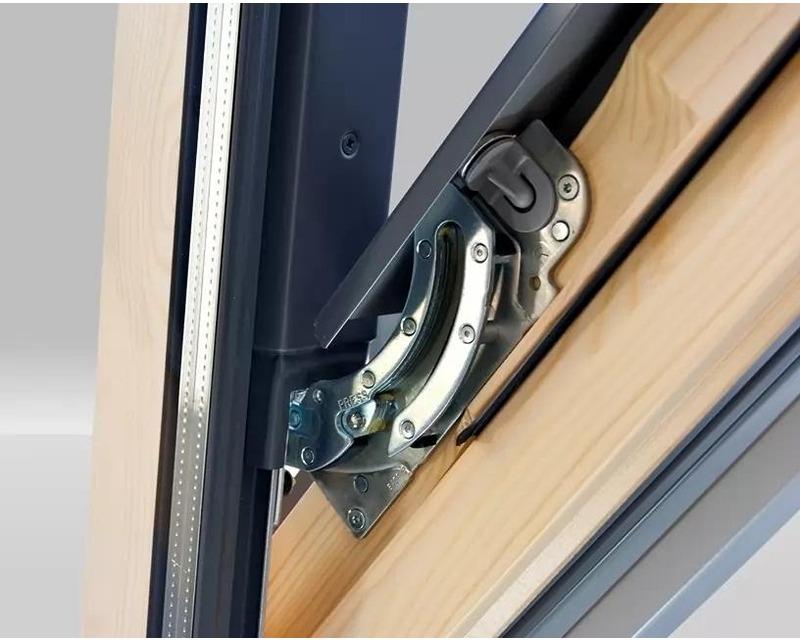

• Guaranteed hinge providing pivot opening
• Knot-free inner surface

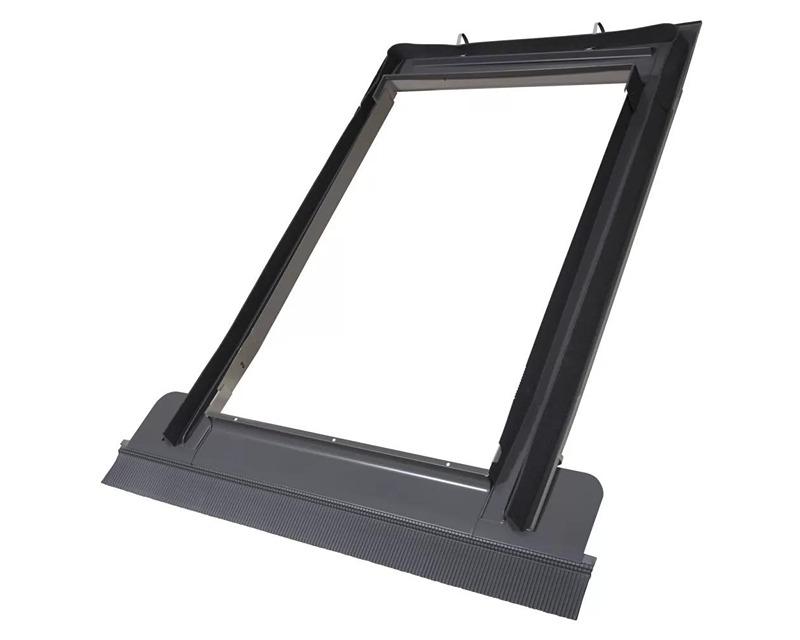

• Stainless aluminum skirts are a gift
• Skirt system suitable for all roof covering materials

Balio Roof Window Dimensions

C2R	C4R	M4R	M6R	M8R	S6R
width × length	width × length	width × length	width × length	width × length	width × length
55×72	55×98	78×92	78×112	78×134	114×112
0,20 m²	0,30 m²	0,44 m²	0,56 m²	0,69 m²	0,90 m²



LACQUERED ROOF WINDOWS (FOL-FCL SERIES)

• Maintenance free
• Two coats of primer, two coats of lacquer
• Acrylic coated finish
• Unlimited color options

FAVORITE FINISHING COLORS

• White
• Anthracite
• Walnut
• Golden Oak

GLASS OPTIONS

1- STANDARD TEMPERED GLASS (FO-FOL SERIES)
It is the standard glass of all Balio roof windows, with a 4 mm reinforced exterior and a 16 mm argon gas filled interior. It cuts heat by 55%.

2- KONFOR LAMINATED GLASS (FCF-FCL)
The outer glass is 6 mm and tempered, and is also covered with Isıcam Konfor® K series. The inner glass consists of 2 laminated glasses of 4+4 mm. It provides 86% heat insulation



ROOF WINDOW ACCESSORIES

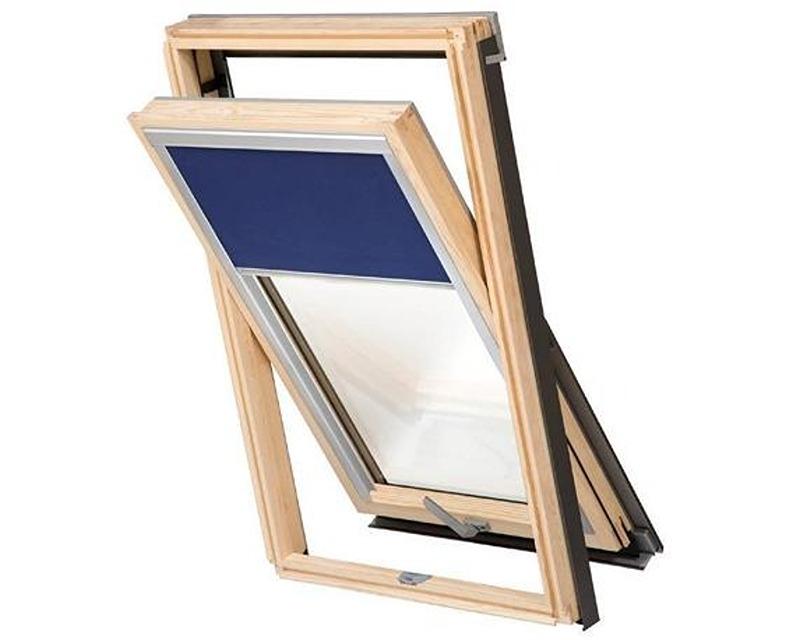

1- Light Control
Since Balio roof windows look directly at the sky, they let in a lot of light. Especially in bedrooms, siesta roller blinds with rails that do not leak light are preferred for comfortable sleeping. They can also be fixed at any desired point.

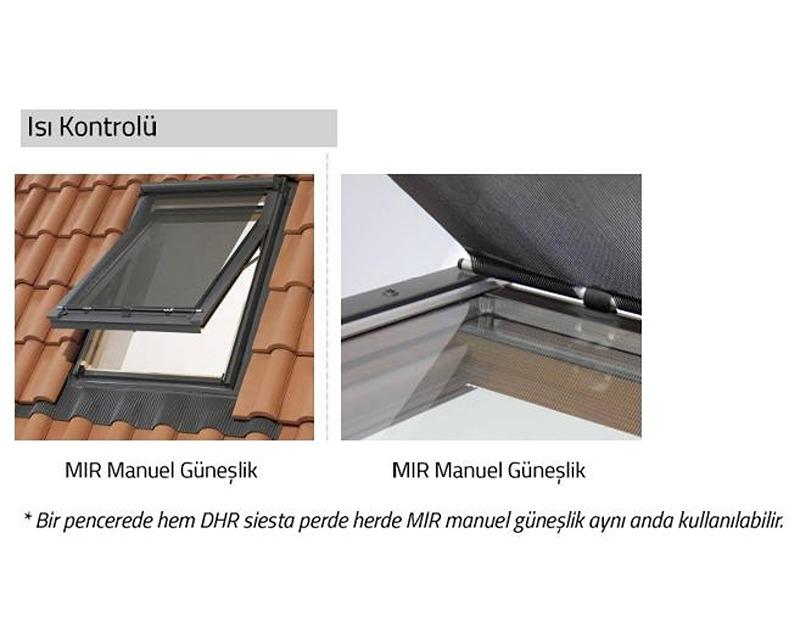

2- Heat Control
It is a mesh glass protection that prevents the outer glass from heating. It is used in the summer months. It is protected in its metal chamber in the winter. It is controlled from the inside. It is used as a semi-permeable curtain in offices because it refracts the light inside.

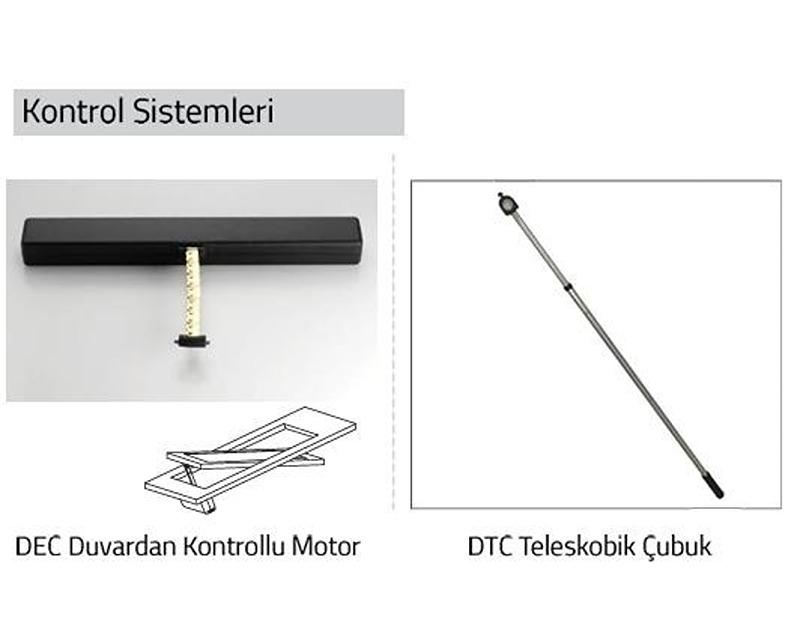

3- Control Systems
A wall-controlled motor and a telescopic extension rod that can reach a length of 2 meters when opened can be used to control Balio roof windows positioned at high altitudes.

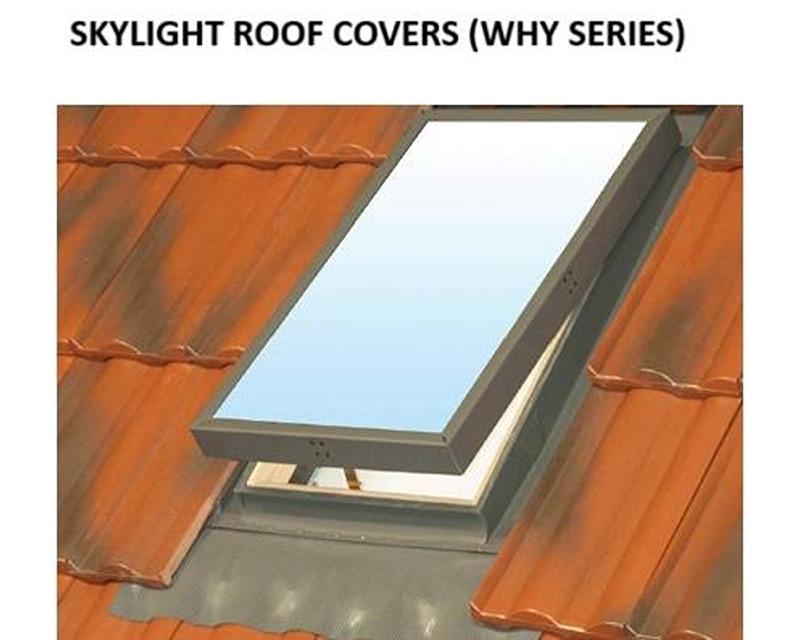

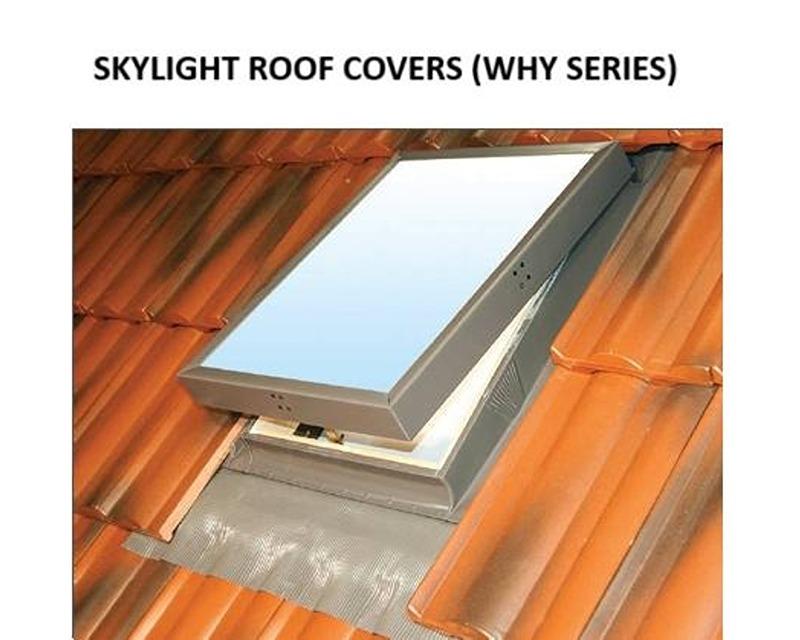

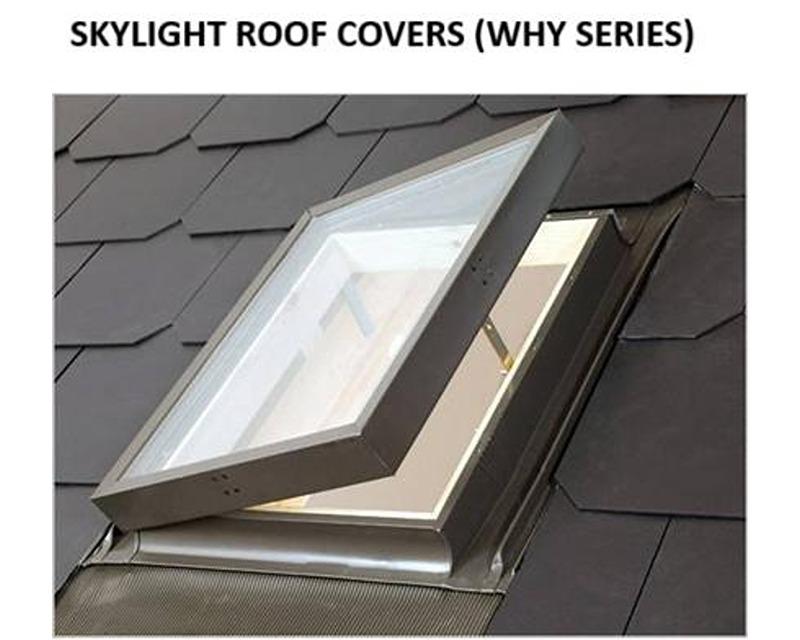

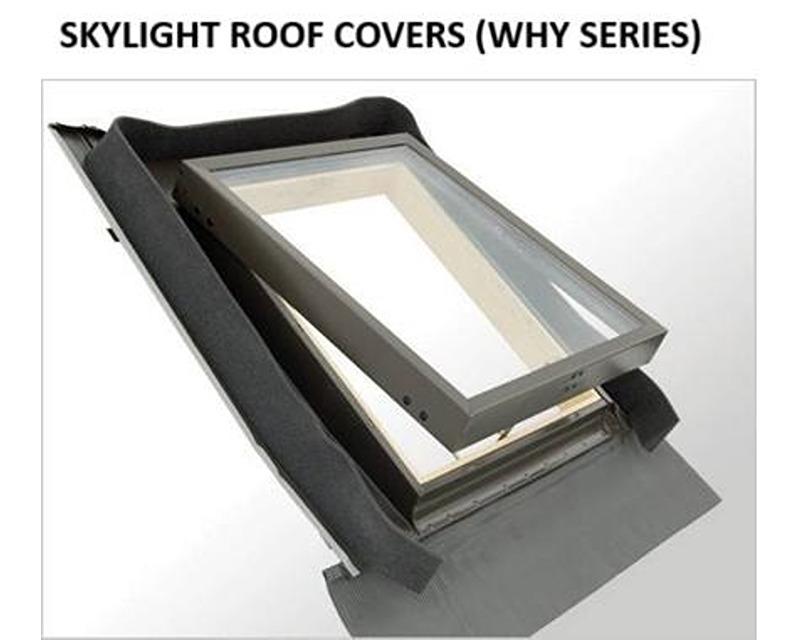

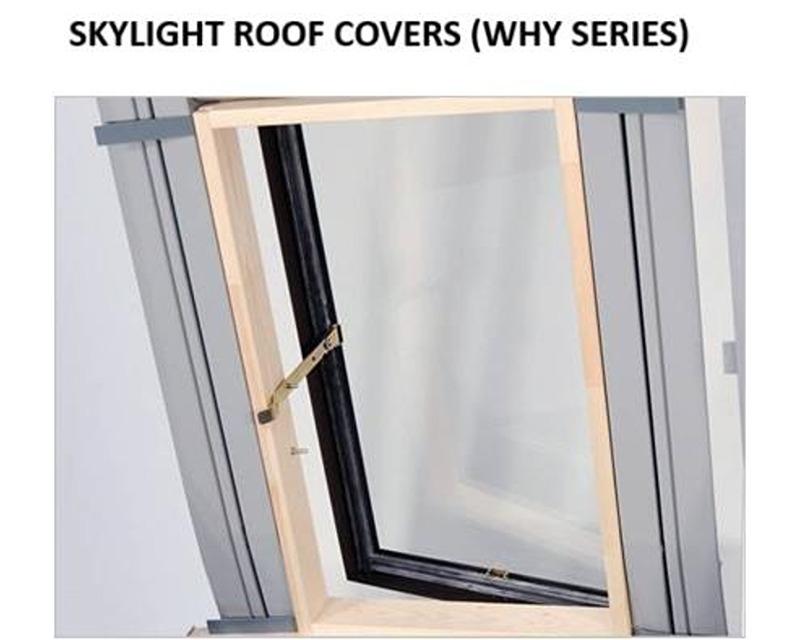

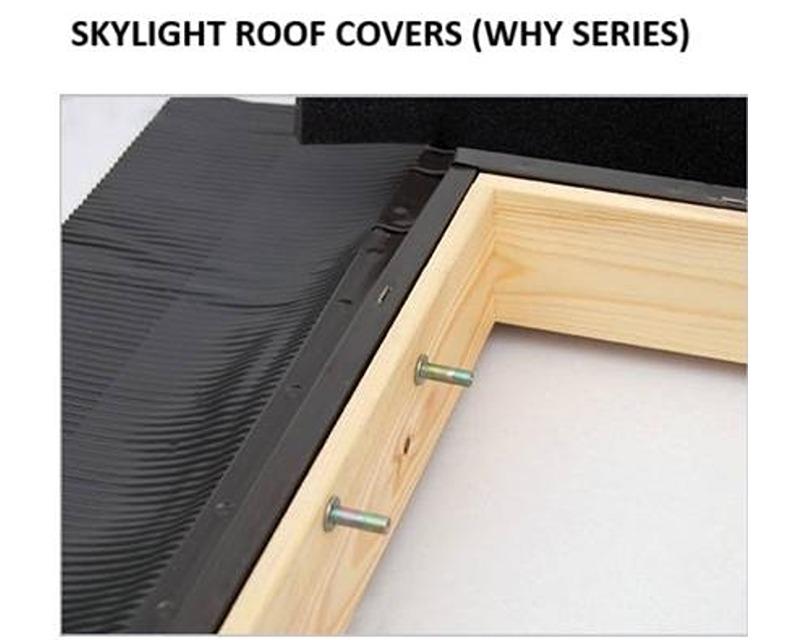

SKYLIGHT ROOF COVERS (WHY SERIES)

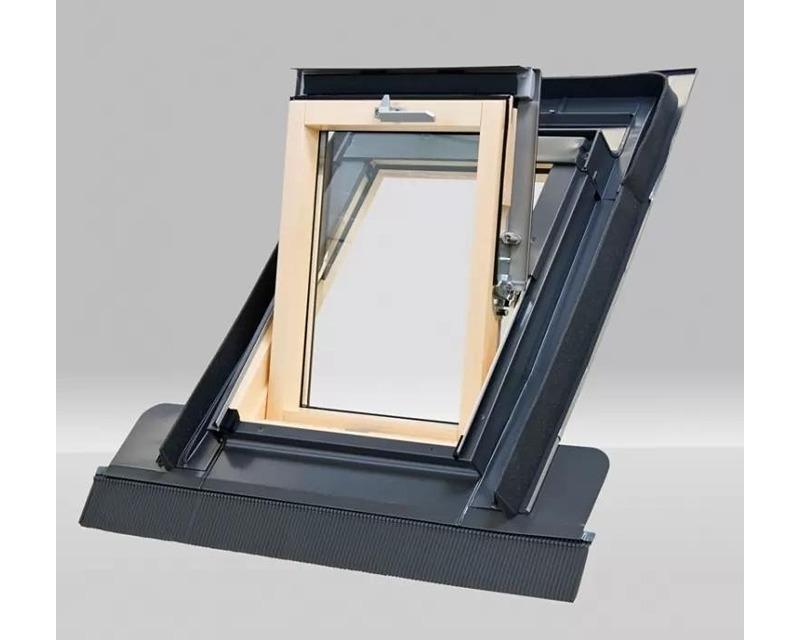

SKYLIGHT, Monolithic Skirting, Double Glazed Roof Cover

•

  Natural daylight illumination between the ceiling with 3 mm double glass

• Bottom opening and two-stage locking feature

•  Two different sizes as 45 cm * 55 cm and 45 cm * 73 cm

• Sponge produced for tile material that prevents air from entering the roof

• Usable with all types of roof covering materials

• Opening-closing direction can be changed thanks to the interchangeable hinge system

• Factory production that eliminates craftsman errors

• Usable on roofs with a slope of 15° and above

Window Dimensions

width x length	width x length
45×55	45×73



FOF - B700 ROOF WINDOW TECHNICAL SPECIFICATIONS

FOF ROOF WINDOW
Application	Ücoating	Glass
MODEL		B 700
Home and Workplaces	Aluminum, Lacquer, RAL 7043	Formation	4-16-4H
Heated, living in areas	Opening Handle	Tempered External Glass	Yes
Slope 15°-90° roofs between	Polished, ergonomically designed	24 mm heat glass	Yes
All heights between 0 and 120 mm	cast zinc arm.	Low Emission	Yes
Suitable for three roof covering materials.	Hinge	Gas (argon)	Yes
Features	Patented pivot hinge	Color
Center pivot		Solid Scandinavian glass	Yes
Narrowed case
Elegant opening positioned at the bottom handle
2 passive ventilation thanks to the opening handle
Easy assembly
10 years manufacturer warranty
Material | Wood and finish
Kiln-dried laminated
Scandinavian pine
FSC certified wood usage
Knots on visible surfaces: No
Against fungus protected.
Two layers of transparent varnish.



DIMENSIONS
