Rooflite - PVC Terrace Roof windows
Flat Terrace

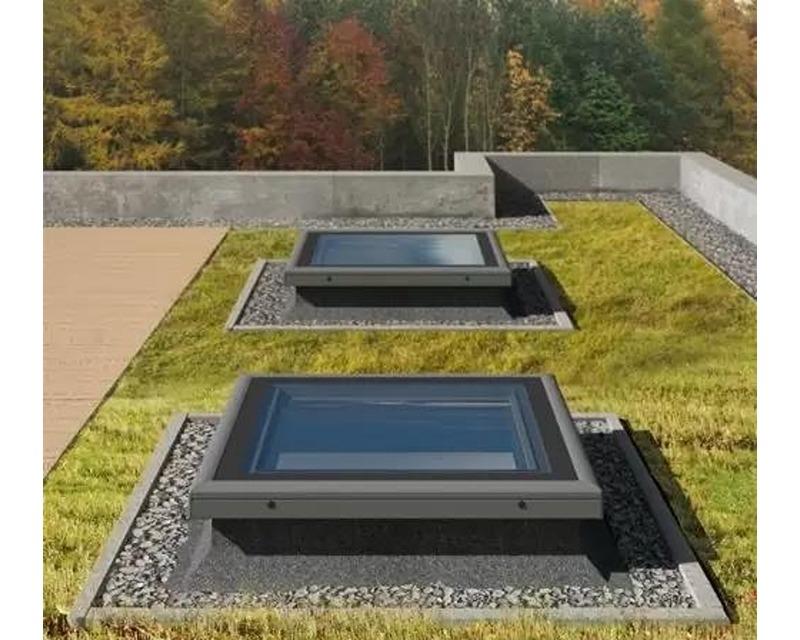

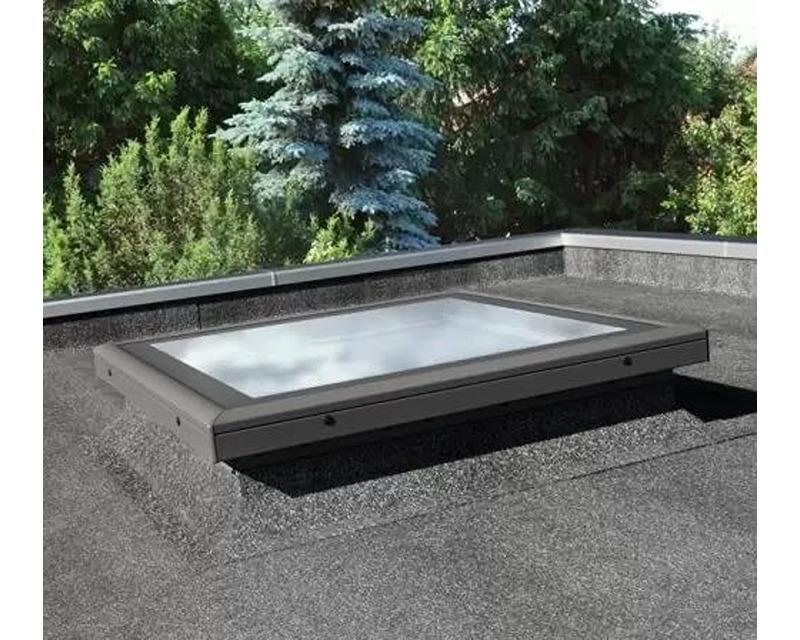

PVC terrace roof windows used on flat roofs without slope
Rooflite Terrace Roof Windows, used on terrace surfaces with a roof slope between 2-15°, are in Türkiye with their special sensor and electrical solutions, affordable prices, Danish manufacturer's warranty and Dorset Yapı assurance.
FLAT ROOF WINDOW - PRODUCT PROGRAM
Options:
- FIXED FLAT ROOF WINDOW (FRF)
- ELECTRICALLY VENTED FLAT ROOF WINDOW (FRE)
WIDE SIZE RANGE
Flat roof windows are available in the most common sizes:
- 60×60 cm
- 60×90 cm
- 80×80 cm
- 90×90 cm
- 90×120 cm
- 100×100 cm
- 100×150 cm
- 120×120 cm

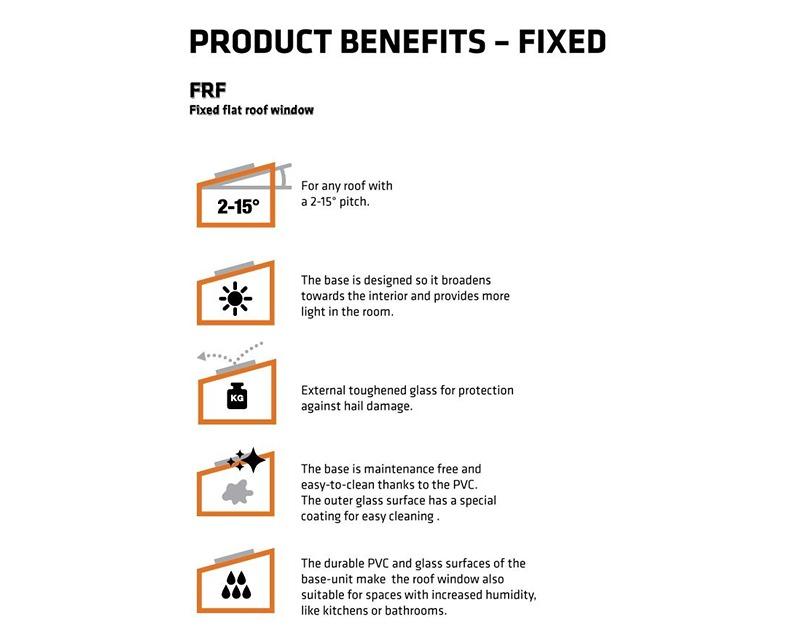

PRODUCT BENEFITS
Fixed flat roof window (FRF)
- For any roof with a 2-15° pitch.
- The base is designed so it broadens towards the interior and provides more light in the room.
- External toughened glass for protection against hail damage.
- The base is maintenance free and easy-to-clean thanks to the PVC.
The outer glass surface has a special coating for easy cleaning . - The durable PVC and glass surfaces of the base-unit make the roof window also suitable for spaces with increased humidity, like kitchens or bathrooms.

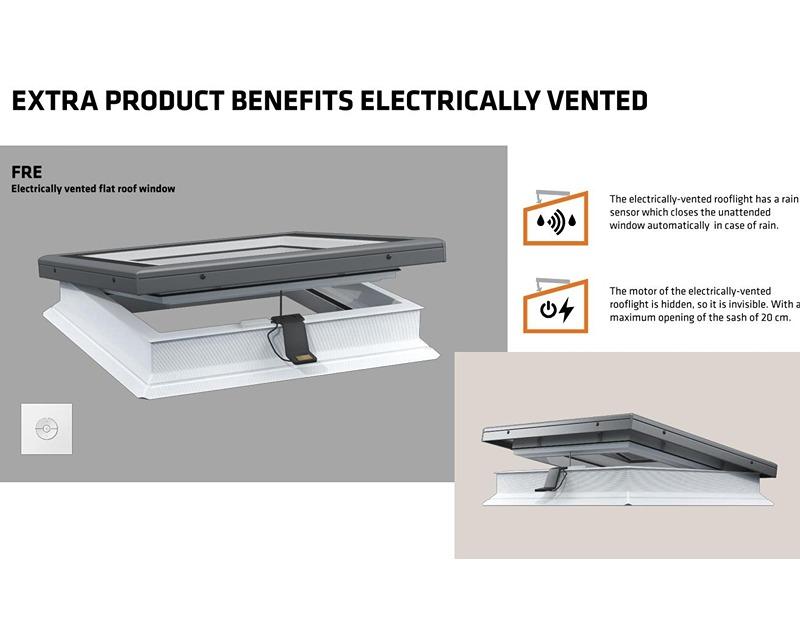

EXTRA PRODUCT BENEFITS ELECTRICALLY VENTED
Electrically vented flat roof window (FRE)

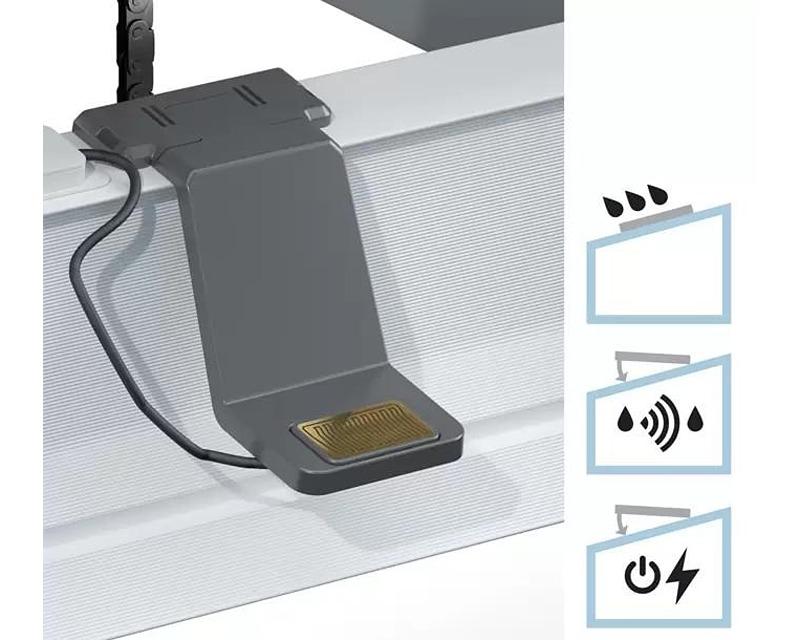

- The electrically-vented rooflight has a rain sensor which closes the unattended window automatically in case of rain.

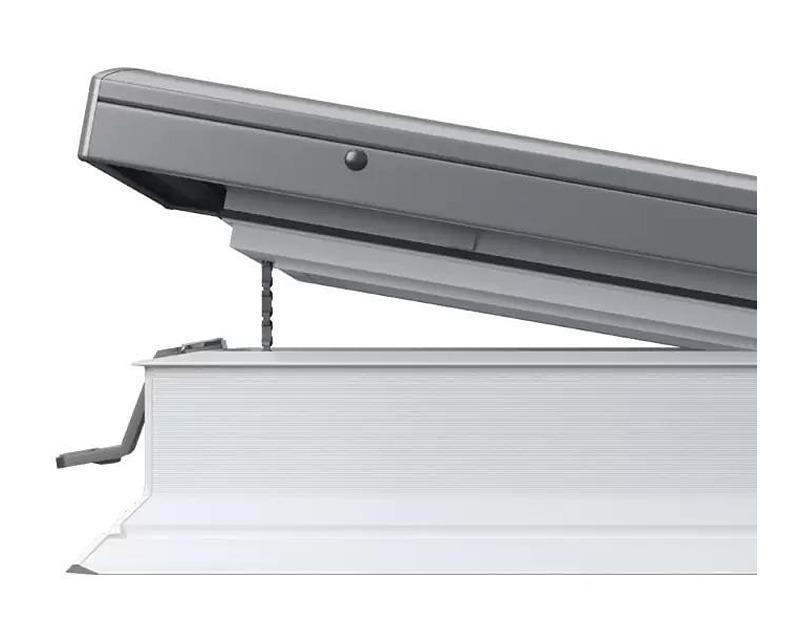

- The motor of the electrically-vented rooflight is hidden, so it is invisible. With maximum opening of the sash of 20 cm.

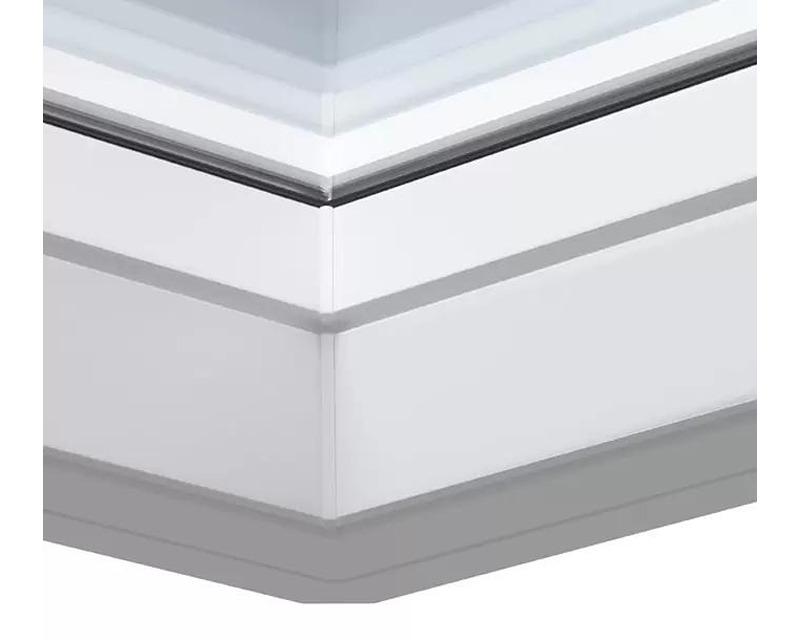

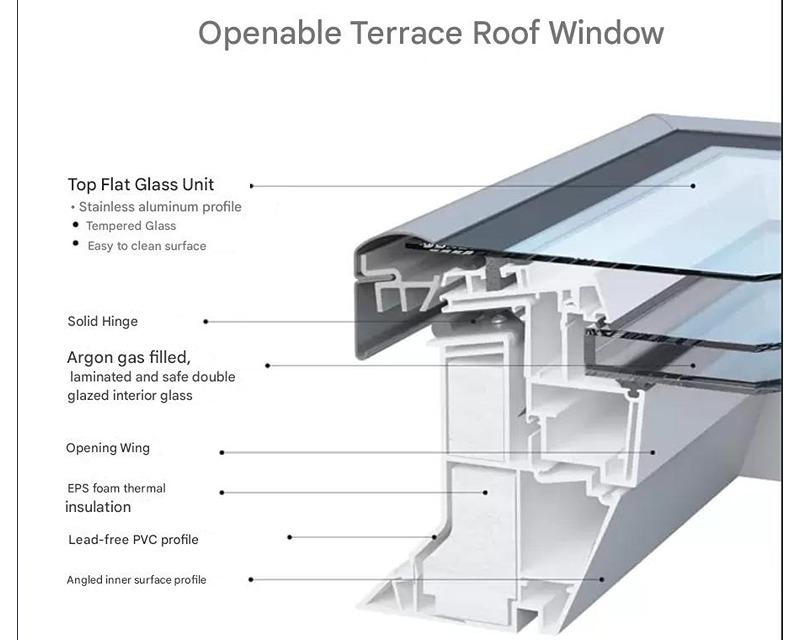

Construction
The PVC base unit is designed to improve energy savings and noise reduction to the maximum. The special construction of the fixed base unit consist of a multilayer glazing and combined with the insulated PVC base, it ensures efficient noise reduction of both impact noise and environmental noise. The internal glass is laminated to ensure safety in case of accidental glass breakage.
Additional extra's

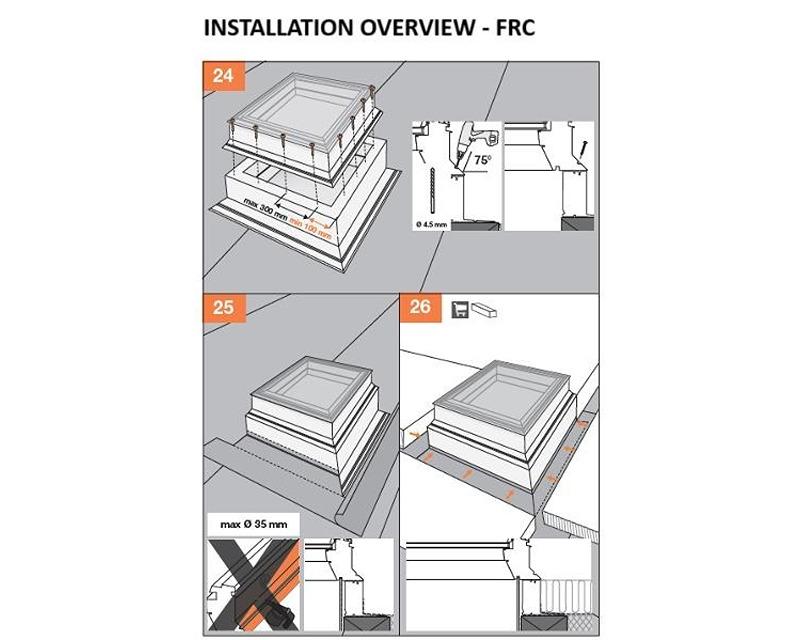

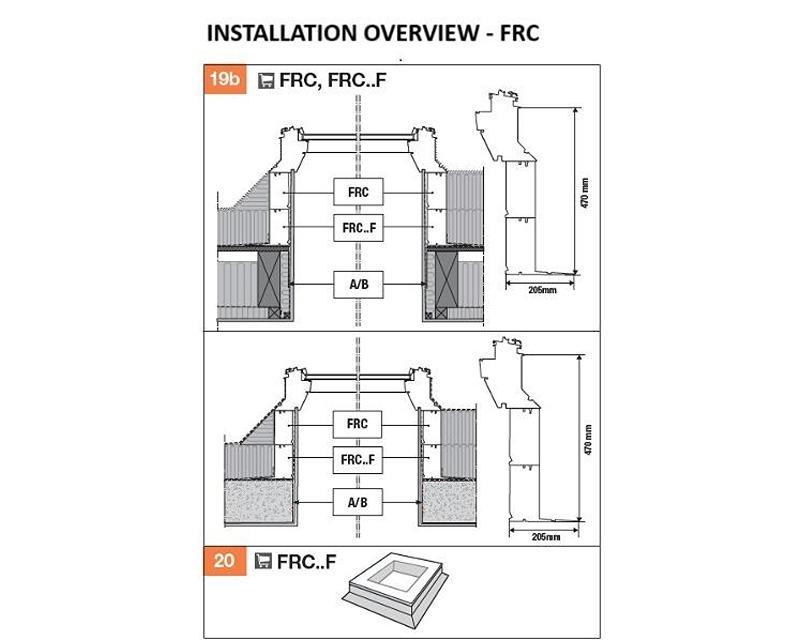

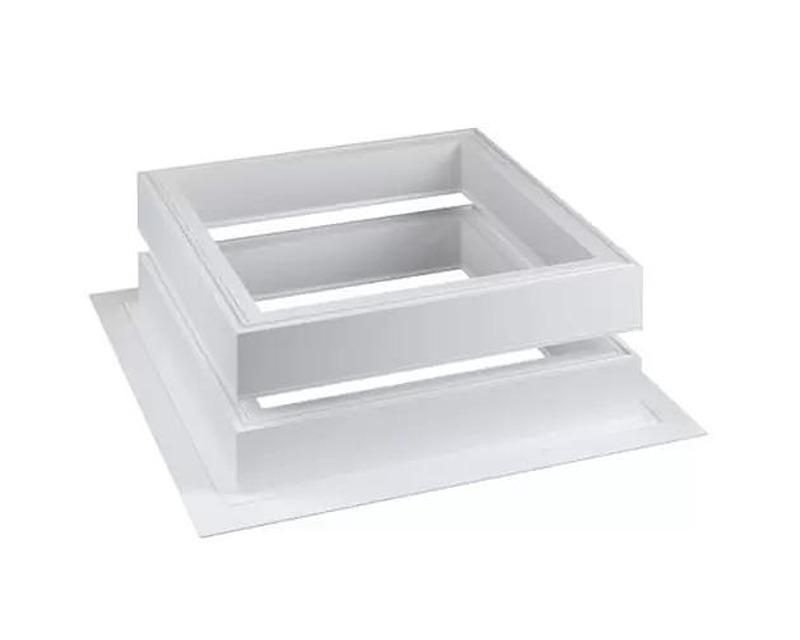

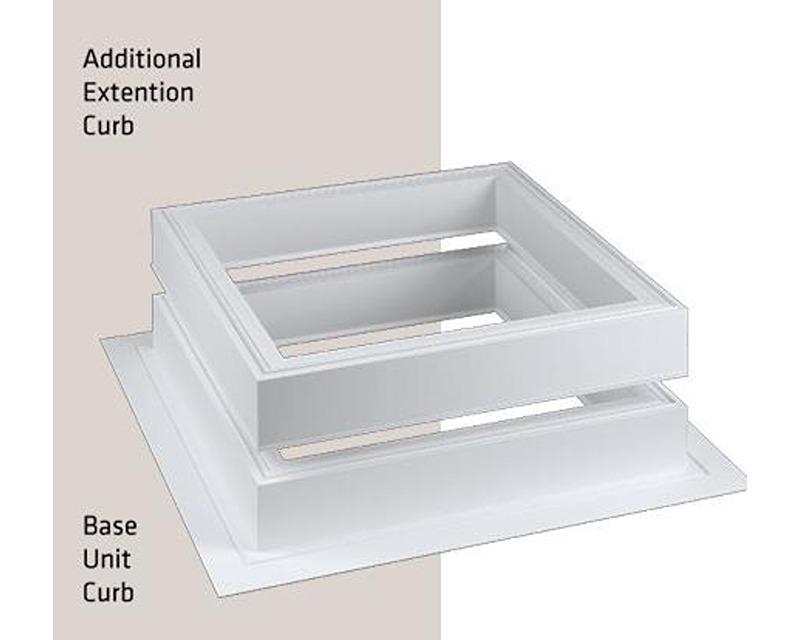

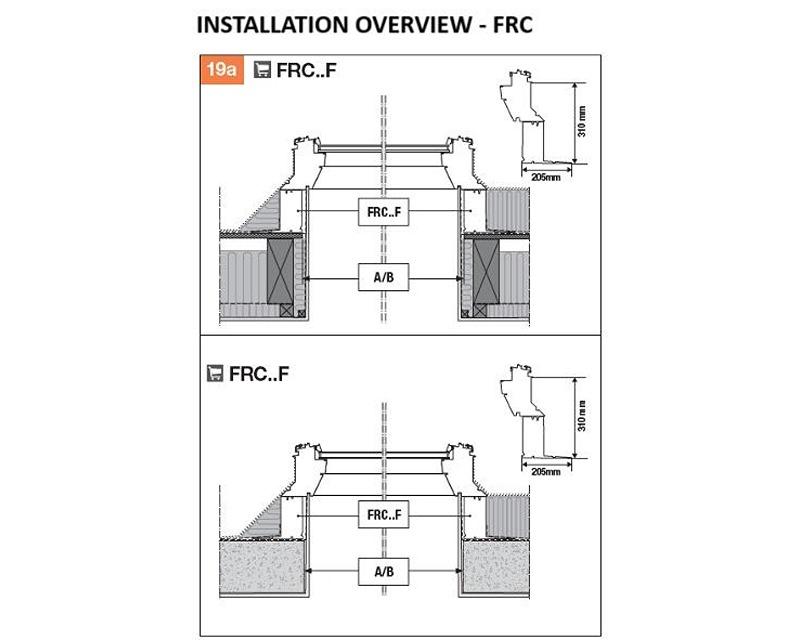

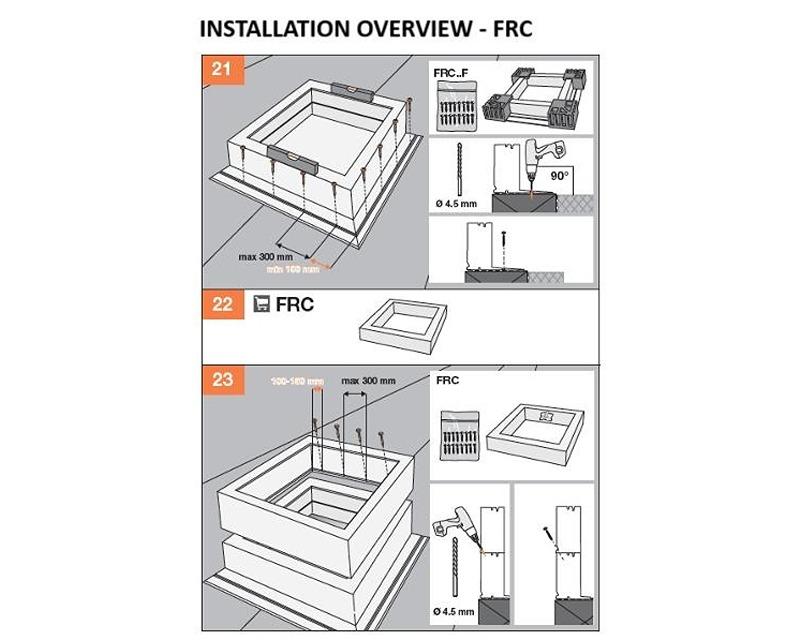

The base unit can be extended in height by additional extension curbs (FRC and FRC .. F) for special roofing systems where higher installation level is required.
Technical Parameters
| FRF - fixed flat roof window | FRE - electrically vented flat roof window | |
| Thermal transmittance of glass - Ug [W/m2K] | 0,9 (EN14351-1, vertical position) 1,3 (EN1873 horizontal position) |
0,9 (EN14351-1, vertical position) 1,3 (EN1873 horizontal position) |
| Thermal transmittance of window - Uw [W/m2K] | 1,4 (EN14351-1) (method of pitched RWs) Urc,ref300: 0,87 (EN1873) |
1,4 (EN14351-1) (method of pitched RWs) Urc,ref300: 0,87 (EN1873) |
| Glass construction (internal - cavity - external) | 33.2-15-4+ 4H | 33.2-15-4+4H |
| Gas filling | Argon | Argon |
| Laminated internal pane | Yes | Yes |
| Resistance to wind load | Class C3 | Class C3 |
| Reaction to fire | Class B-s1, do | Class B-s1, d0 |
| Watertightness | Class 9A | Class 9A |
| Acoustic performance [dB] | 36 (-1 ;- 4) | 31 (-1 ;- 3) |
| Air permeability | Class 3 | Class 3 |
| Solar factor | 0,54 | 0,54 |
| Light transmittance | 0,72 | 0,72 |
| Roof pitch | 2-15 | 2-15 |
| Remote control | No | One channel |
| Rain sensor | No | Yes |
| Guarantee | 10 years | 10 years |
| Available sizes | 8 | 8 |
