Metal Accordion Roof Ladders
EasyStep®, Türkiye's roof ladder brand with the widest variety, size and stock, is manufactured in Europe with superior technology. It is meticulously selected from Scandinavian pine, knotless wood and impregnated (the process of extracting the sap of the tree by baking) to become a ladder that will be used for many years. No varnish or other lubricating materials are used to prevent slipping. There are also metal or aluminum models available.
Its assembly is extremely simple. It comes with all screws attached. In addition, it includes an illustrated assembly guide and Turkish explanations explaining the assembly. All roofers or carpenters can easily install these ladders.
When setting the location before assembly, 1 cm more than AxB lengths should be left clearly. For example, for a 120x60 cm staircase, 121x61 cm space is left. EasyStep staircases have clear dimensions. In other words, they come in exactly the dimensions they are written.
It should not be forgotten that these products are standard sizes, the gap is adjusted according to the staircase, not the staircase according to the gap. Since the gap left on the floor is usually left randomly, sometimes problems occur. The job of widening the floor is extremely difficult, so the narrowing process is usually preferred.
The most important thing to consider when narrowing is to use 40x80 cm steel profiles, starting at least 1 cm above the bottom level of the floor. This is the healthiest method.
| Stair Type | Metal Accordion |
|---|---|
| Dimensions ( W x W ) | 70×60cm |

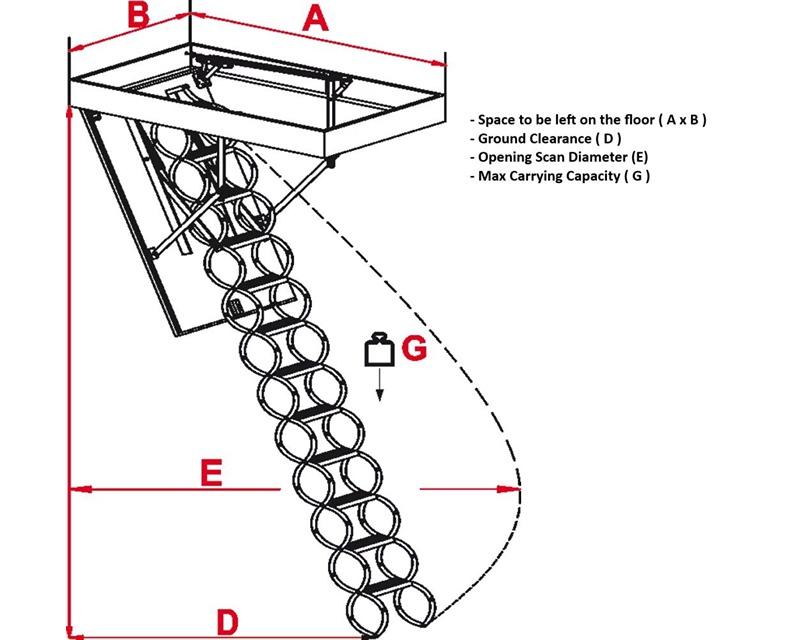

| Space to be left on the floor ( A x B ) | 71×61 cm (square) |
| Floor to ceiling height ( C ) | 290cm |
| Adding additional steps (Maximum 410 cm) | Provides 30 cm height. Maximum 4 pieces can be used. |
| Ground Clearance ( D ) | 145-204cm |
| Opening Scan Diameter (E) | 234 cm |
| Number of Steps | 10 |
| Body Type | Metal sliding down |
| Case Thickness | 21mm |
| Case Height | 135mm |
| Cover Thickness ( K ) | 26mm |
| Cover Bottom Color | White HDF |
| Max Carrying Capacity ( G ) | 160 kg |
| Thermal Insulation Coefficient | 1.29 W/m2 °K |
| Air Permeability | ————- |
| Guarantee | 2 years |

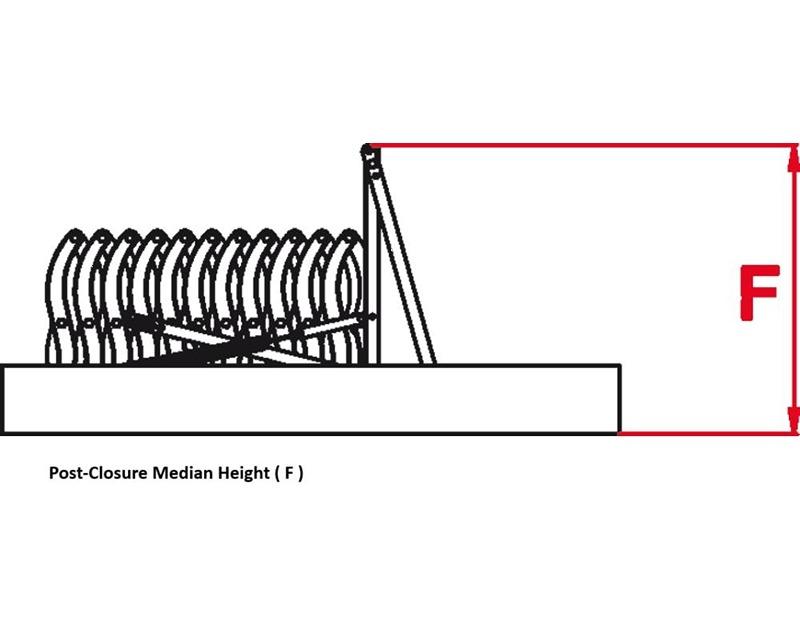

| Post-Closure Median Height ( F ) | 57cm |
| Accessories | Plastic molding is not included. |
STAIR DIMENSIONS (AxB)
- 70x60
- 80x60
- 90x60
- 100x60
- 70x70
- 80x70
- 90x70
- 100×70
