Wood Roof Ladders
EasyStep®, Türkiye's roof ladder brand with the widest variety, size and stock, is manufactured in Europe with superior technology. It is meticulously selected from Scandinavian pine, knotless wood and impregnated (the process of extracting the sap of the tree by baking) to become a ladder that will be used for many years. No varnish or other lubricating materials are used to prevent slipping. There are also metal or aluminum models available.
Its assembly is extremely simple. It comes with all screws attached. In addition, it includes an illustrated assembly guide and Turkish explanations explaining the assembly. All roofers or carpenters can easily install these ladders.
When setting the location before assembly, 1 cm more than AxB lengths should be left clearly. For example, for a 120x60 cm staircase, 121x61 cm space is left. EasyStep staircases have clear dimensions. In other words, they come in exactly the dimensions they are written.
It should not be forgotten that these products are standard sizes, the gap is adjusted according to the staircase, not the staircase according to the gap. Since the gap left on the floor is usually left randomly, sometimes problems occur. The job of widening the floor is extremely difficult, so the narrowing process is usually preferred.
The most important thing to consider when narrowing is to use 40x80 cm steel profiles, starting at least 1 cm above the bottom level of the floor. This is the healthiest method.

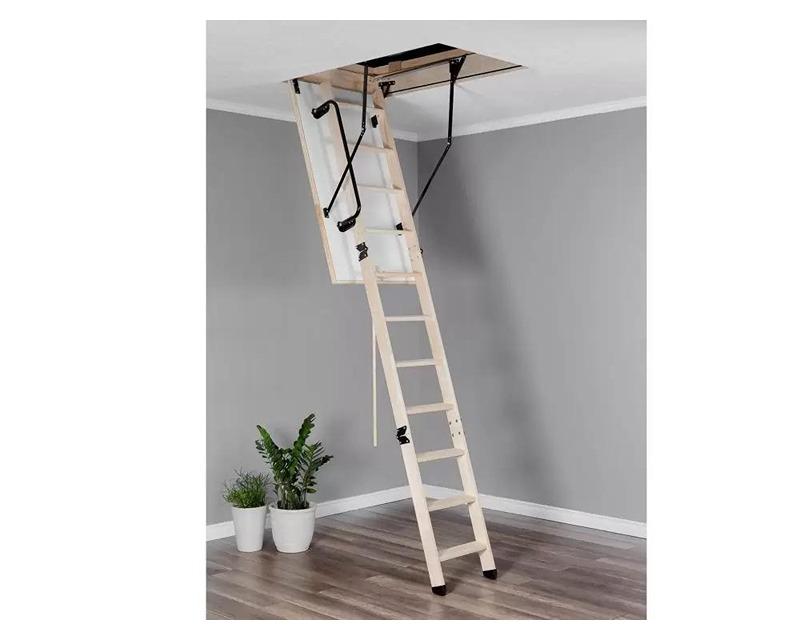

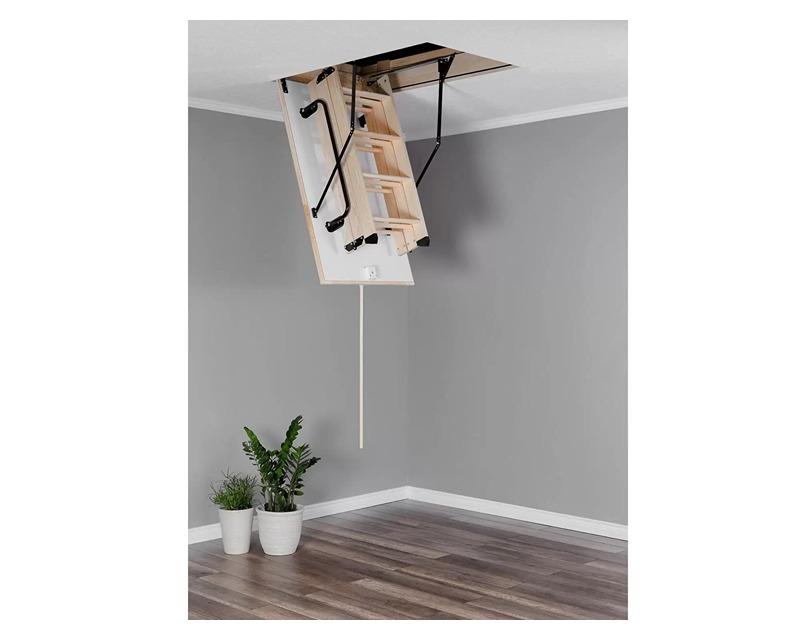

| Stair Type | 3 Folding Wooden Loft Ladder |
|---|---|

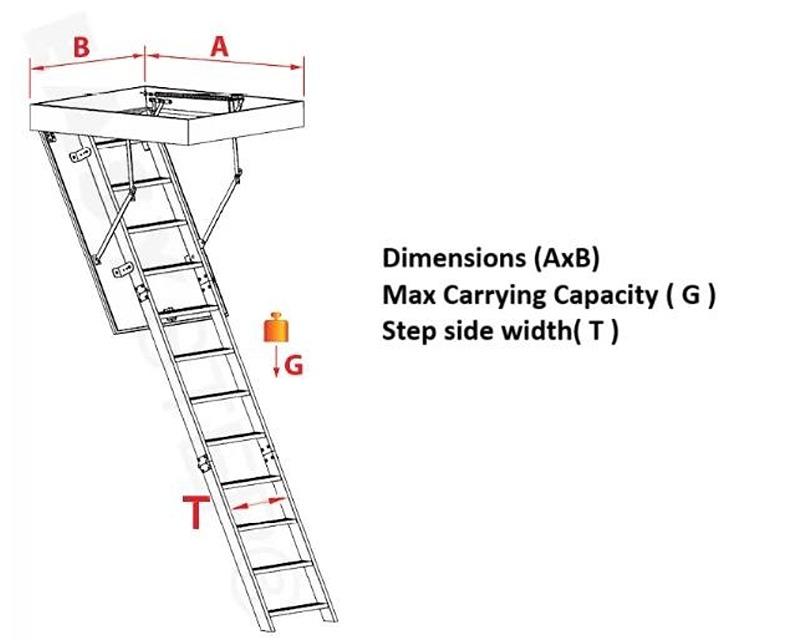

| Dimensions ( A x B ) | 110×60 cm (net) |
| Space to be left on the floor | 111×61 cm (square) |

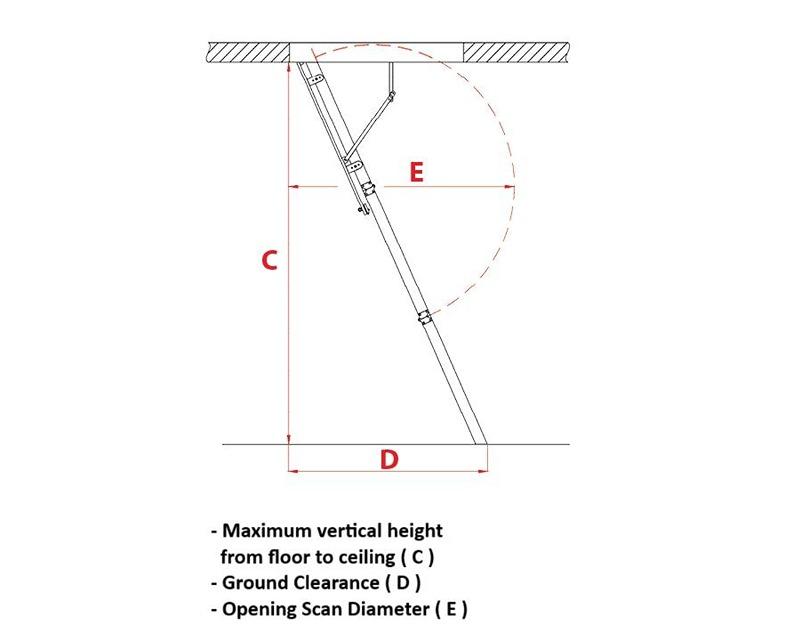

| Maximum vertical height from floor to ceiling ( C ) | 280cm |
| Adding additional digits | It can be extended up to 80 cm with its additional folding part. |
| Ground Clearance ( D ) | 135cm |
| Opening Scan Diameter ( E ) | 155cm |

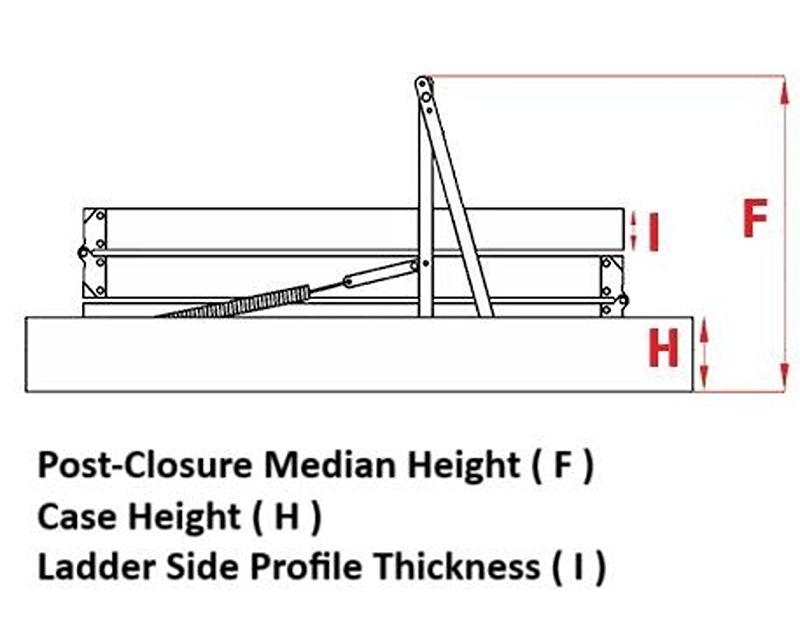

| Post-Closure Median Height ( F ) | 57cm |
| Case Thickness | 21mm |
| Number of Steps | 12 |
| Wood Type | Scandinavian Pine (impregnated, knot-free and varnish-free) |
| Case Height ( H ) | 135mm |
| Ladder Side Profile Thickness ( I ) | 75mm |

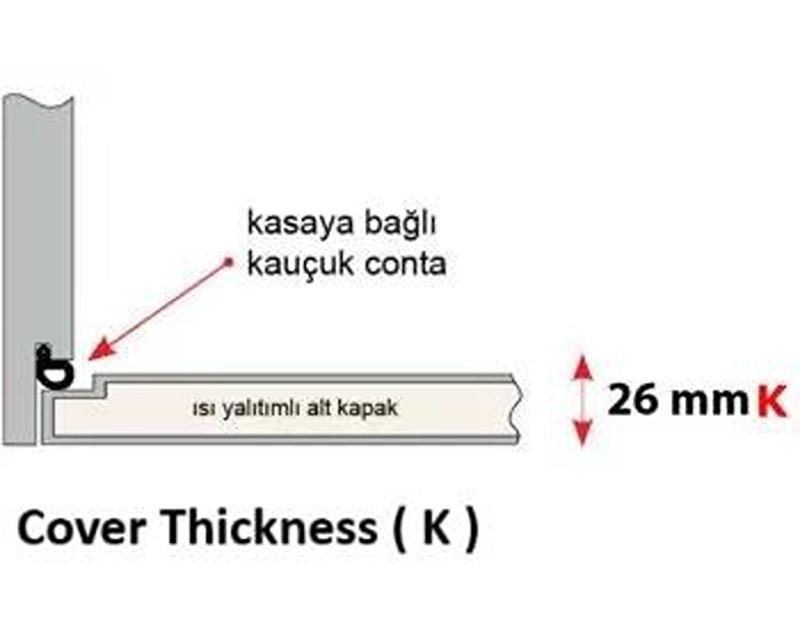

| Cover Thickness ( K ) | 26mm |
| Step side width( T ) | 37.5cm |
| Step vertical length (foot step distance) | 8cm |
| Cover Bottom Color | White HDF |
| Max Carrying Capacity ( G ) | 160 kg |
| Thermal Insulation Coefficient | 1.29 W/m2 °K |
| Air Permeability | ———— |
| Guarantee | 2 years |
| Accessories | It comes with plastic feet and metal railings. Plastic moldings can be purchased upon request, but are not included in the price. |
STAIR DIMENSIONS (AxB)
- 110×60
- 110×70
- 120×60
- 120×70
- 130×60
- 130×70
