IFLOOR HPE-Underfloor Insulation
1.0625
/m²Available
0
SKU: EWA-TR-INN-74-2| Product Description | Density | Thickness | Width | Length | Sold as/in | Unit |
|---|---|---|---|---|---|---|
| İFLOOR HPE | 90 kg/m³ | 2.5 mm | 1.5 m | 50 m | Roll | m² |
| İFLOOR HPE | 90 kg/m³ | 5 mm | 1.5 m | 50 m | Roll | m² |
| İFLOOR HPE | 90 kg/m³ | 8 mm | 1.5 m | 50 m | Roll | m² |
| İFLOOR HPE | 90 kg/m³ | 10 mm | 1.5 m | 50 m | Roll | m² |
|

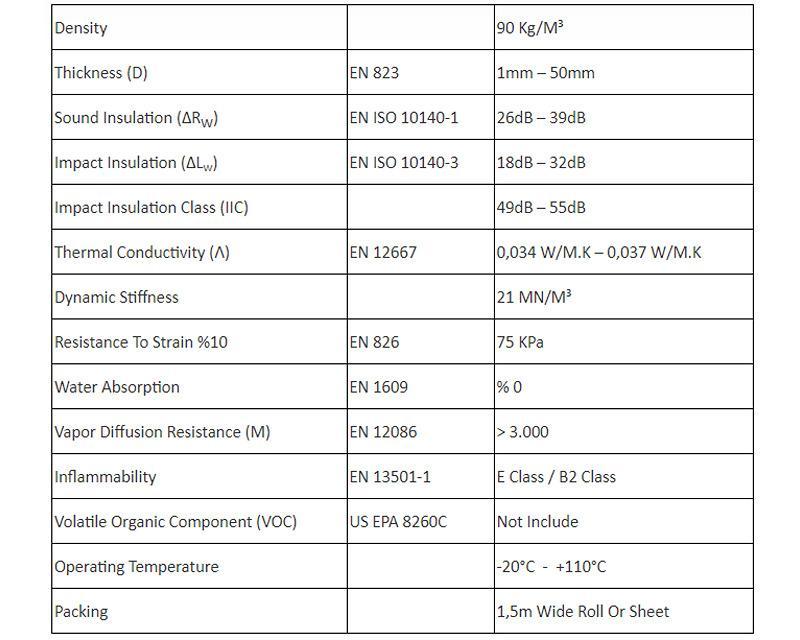

Density |
|
90 Kg/M³ |
|
Thickness (D) |
EN 823 |
1mm – 50mm |
|
Sound Insulation (ΔRw) |
EN ISO 10140-1 |
26dB – 39dB |
|
Impact Insulation (ΔLw) |
EN ISO 10140-3 |
18dB – 32dB |
|
Impact Insulation Class (IIC) |
|
49dB – 55dB |
|
Thermal Conductivity (Λ) |
EN 12667 |
0,034 W/M.K – 0,037 W/M.K |
|
Dynamic Stiffness |
|
21 MN/M³ |
|
Resistance To Strain %10 |
EN 826 |
75 KPa |
|
Water Absorption |
EN 1609 |
% 0 |
|
Vapor Diffusion Resistance (Μ) |
EN 12086 |
> 3.000 |
|
Inflammability |
EN 13501-1 |
E Class / B2 Class |
|
Volatile Organic Component (VOC) |
US EPA 8260C |
Not Include |
|
Operating Temperature |
|
-20°C - +110°C |
|
Packing |
|
1,5m Wide Roll Or Sheet |
Ifloor ® hpe series has a high density, cross-linked and amorphous cell structure. It is produced in the form of rubber and provides high performance compared to standard type pe and conventional cross-linked pe products.
The ifloor ® hpe series is able to satisfy both airborne sound insulation and impact sound insulation with a single product between the floors. Ifloor ® hpe series product range provides sound / impact insulation and heat insulation in pe / rubber products.

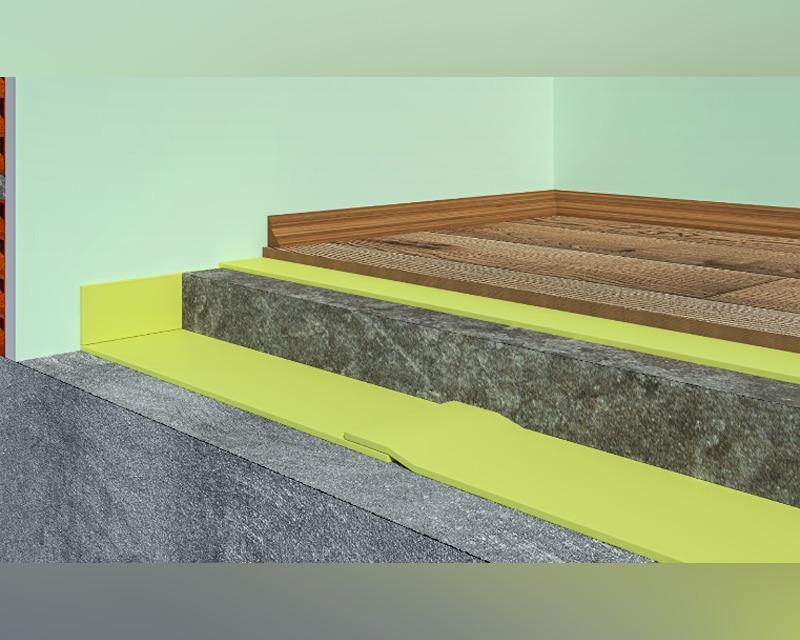

Thanks to its compressive deformation resistance and dynamic load resistance, it can be used safely under the floor details without collapsing. It is not affected by water and moisture, and its time deformation values (10 years) are around 2%.
It meets all sound-impact and thermal insulation needs in the vertical details of the structures that generate noise mainly in the 350hz - 1250hz frequency range such as residential, office, hotel, hospitality buildings, commercial areas, school.
Ifloor ® hpe products are produced from qualified recycled pe and rubber raw materials, have low carbon emission values and are environmentally friendly. Easy to apply, saves labor and time. No need to use consumables in the application.
