SKU: EWA-TR-INN-74-22Product Description | Density | Thickness | Width | Length | Sold as/in | Unit |
---|---|---|---|---|---|---|

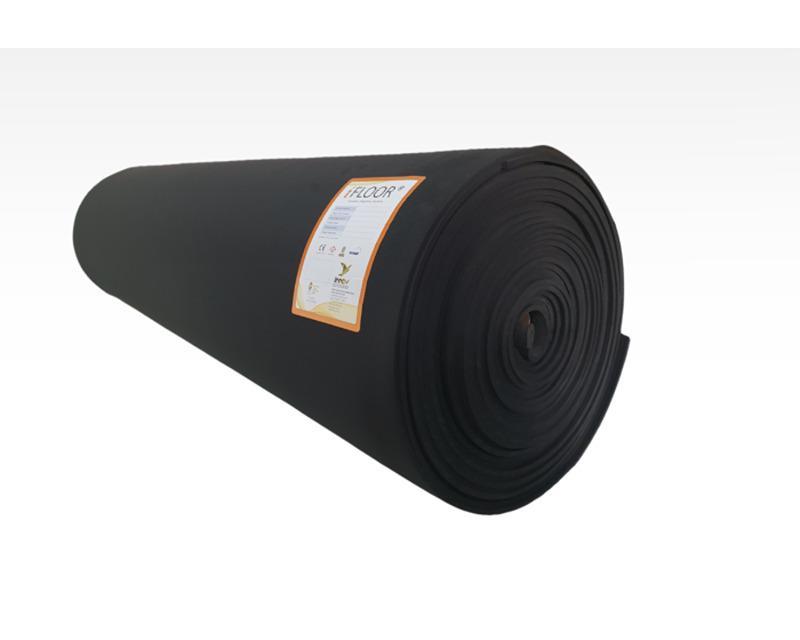

İFLOOR PERFOR-M22 | 90 kg/m³ | 2.2 mm | 1.5 m | 50 m | Roll | m² |
İFLOOR PERFOR-M40 | 90 kg/m³ | 4 mm | 1.5 m | 50 m | Roll | m² |

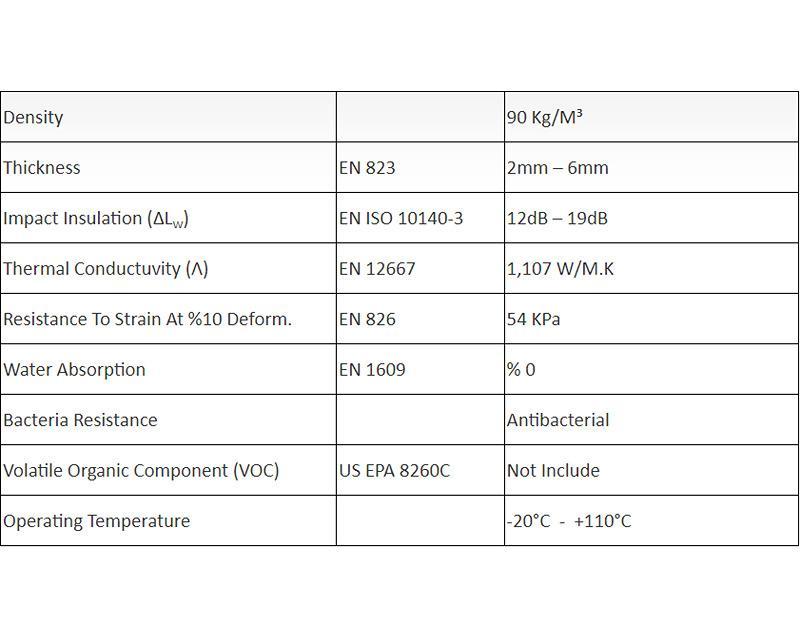

Density |
|
90 Kg/M³ |
Thickness |
EN 823 |
2mm – 6mm |
Impact Insulation (ΔLw) |
EN ISO 10140-3 |
12dB – 19dB |
Thermal Conductuvity (Λ) |
EN 12667 |
1,107 W/M.K |
Resistance To Strain At %10 Deform. |
EN 826 |
54 KPa |
Water Absorption |
EN 1609 |
% 0 |
Bacteria Resistance |
|
Antibacterial |
Volatile Organic Component (VOC) |
US EPA 8260C |
Not Include |
Operating Temperature |
|
-20°C - +110°C |

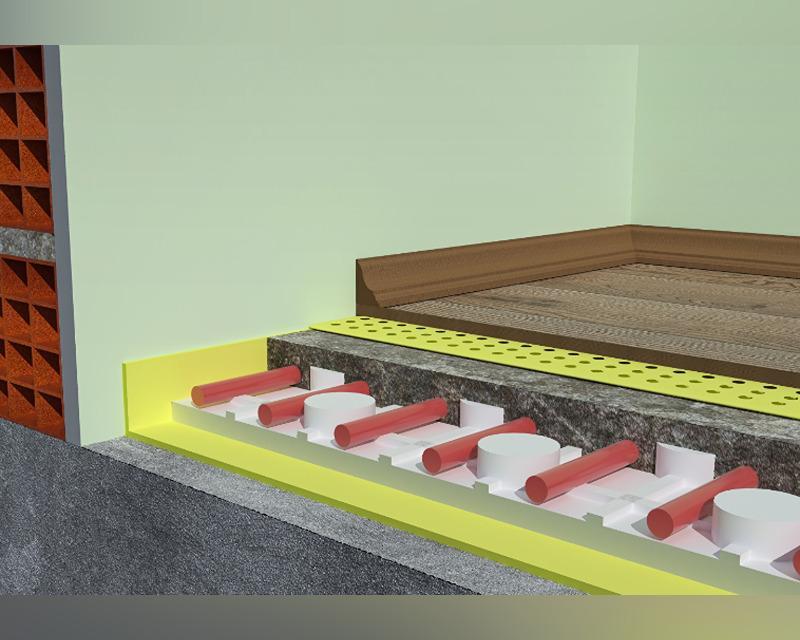

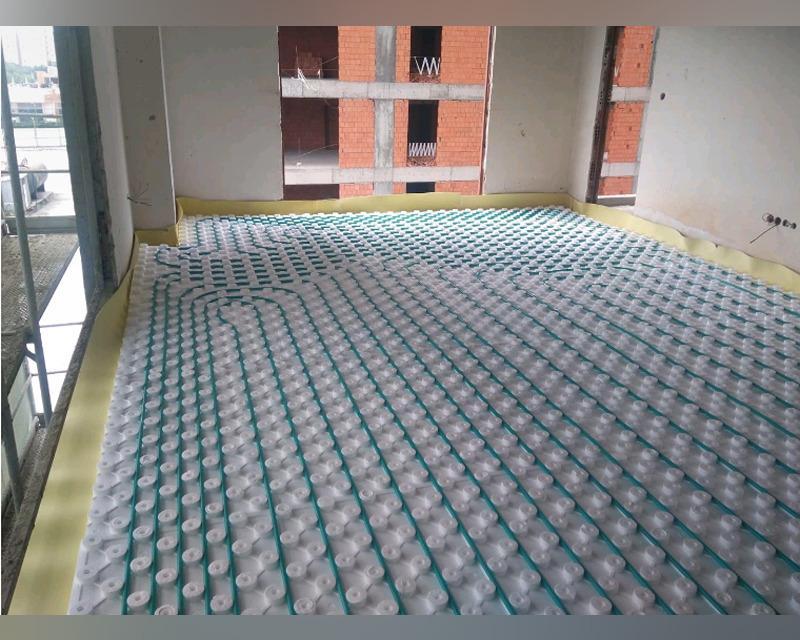

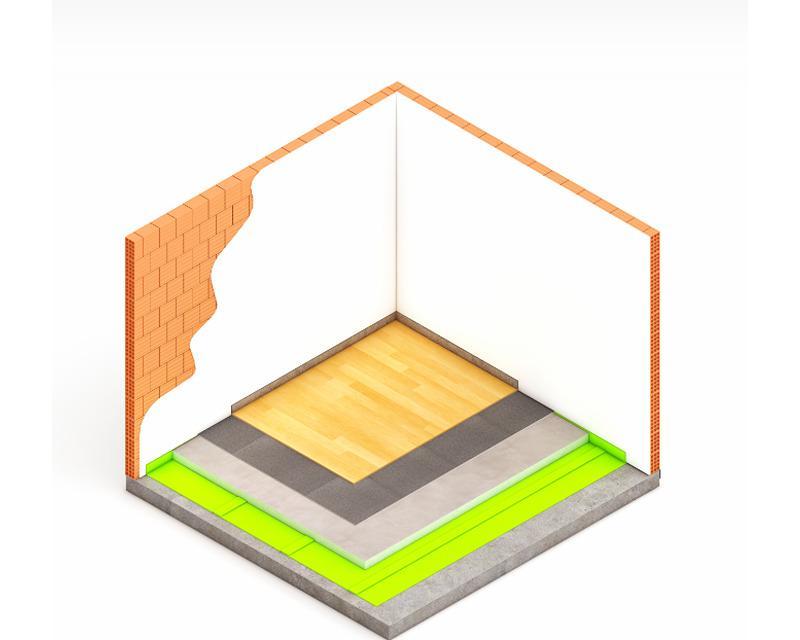

In floor heating floorings, when the finishing layer is parquet or carpet, serious performance and energy losses occur due to the partial thermal insulation properties of interlayer products such as mattresses and felts used under the coating surface.

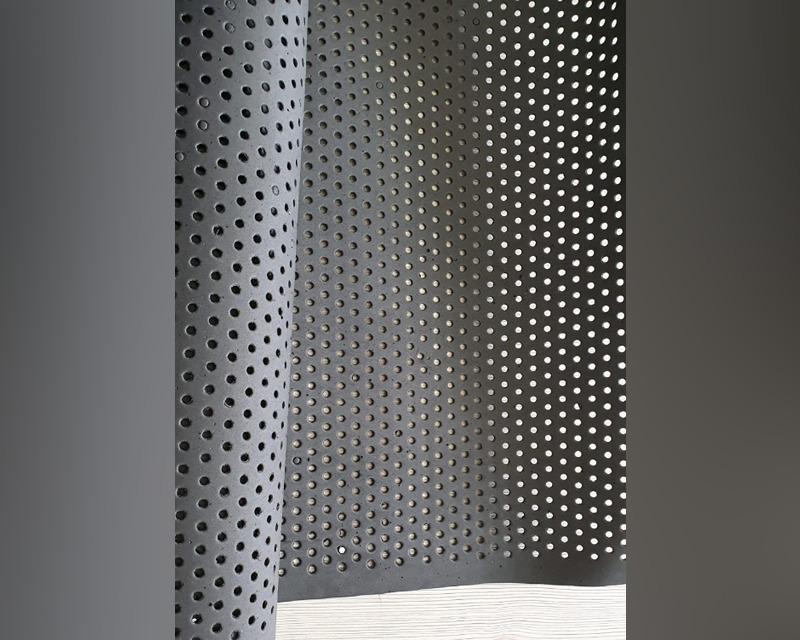

The ifloor® perfor-m series is a perforated version of the standard hpe series in such a way that the acoustic and thermal conductivity values are optimally maintained. On the one hand, the hpe series features a perforation model with high impact insulation performance and pressure resistance, allowing maximum heat transfer.
Ifloor® perfor-m series provides impact insulation without crushing under load to the cell structure in high density crosslinked and amorphous form, minimizing energy losses in the underfloor heating system with its thermal permeability. Wide operating temperature range; used safely without loss of performance due to pressure and temperature. It is antibacterial, it prevents bacterial growth and odor problems caused by condensation from temperature differences under the coating surface.
