DIGITAL S-Water Heating Controller
796.6875
/Box/ QTY in Box: 20 Pcs
Available

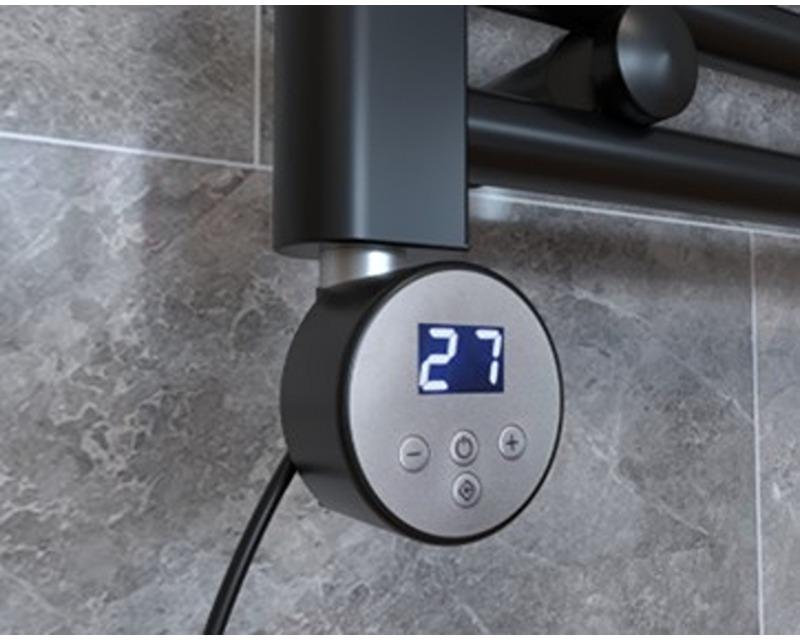

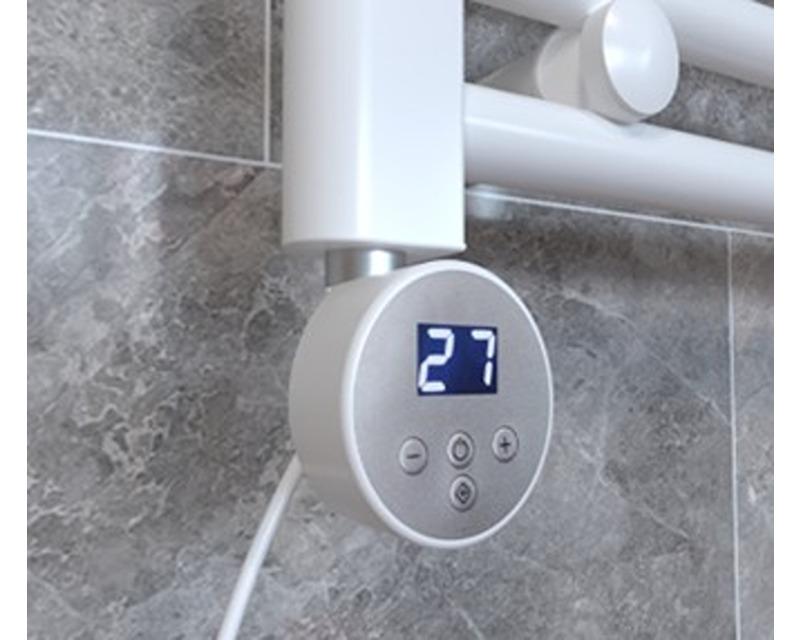

DIGITAL LED DISPLAY THERMOSTATIC CONTROL UNIT FOR ELECTRIC TOWEL RAIL
Main features:
Measurement and transmission of setpoint temperature and
room temperature to the control unit.
Quick heating of your bathroom using the instant Boost
Temperature setting
Power On / Standby
Operating modes selection
Benefits:
Excellent ergonomic settings : tilted interface with large and spaced buttons
White 7 segment LED display, easy to read
Control unit can be placed both on the right and the left side of the towel rail . Display direction can be turned 180˚
The control unit has the feature of easy disassembly and
assembly. Provides easy fast-on
Functional Specifications:
Power On / Standby :A dedicated button allows the appliance to be on standby
Temperature Setting: Preset at 20°C, adjustable from +7°C to+35°C
Timer Function:timer can be set that allows it to run for 1-5 hours
Safety:Built-in temperature sensor protects the device from overheating, limiting the temperature of the radiator to maximum of 70°C.l

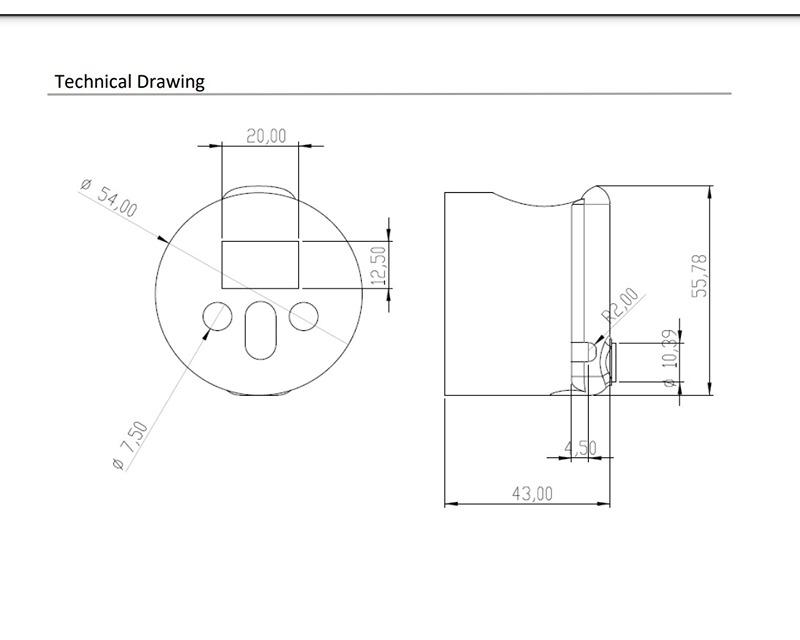

Dimensional and finish specifications:
Height: 54 mm
Width:54 mm
Depth:45 mm
Color:White - Black - Chrome - Grey
Net weight:0.21 Kg
Power supply:
Operating Voltage:230V 50Hz
Power Rating:1000W, resistive load
Power cord:800 mm
Control Type: Electronic PID (Proportional Integrated Derivative) temperature regulation with microprocessor
Protection Rating:IP44 - IP68
Class:Class I & Class II
Operating temperature : +7°C to +35°C
EMC:2014/35/EU
LVD:2014/35/EU
RoHS:2014/35/EU
Applicable standards:
EMC:EN 61000-4-2 :2009 - EN 61000-4-3 :2006 + A1 + A2 - EN 61000-4-4 :2012 - EN 61000-4-5 : 2014 - EN 61000-4-6 : 2014 - EN 61000-4-11 2004 - N 61000-4-13 : 2002 + A1 + A2
LVD:IEC 60335-1:2020 ; EN 60335-1:2012 ; EN 62233:2008
RoHS:EN IEC 50581
Manufacturing:ISO 9001:2016
