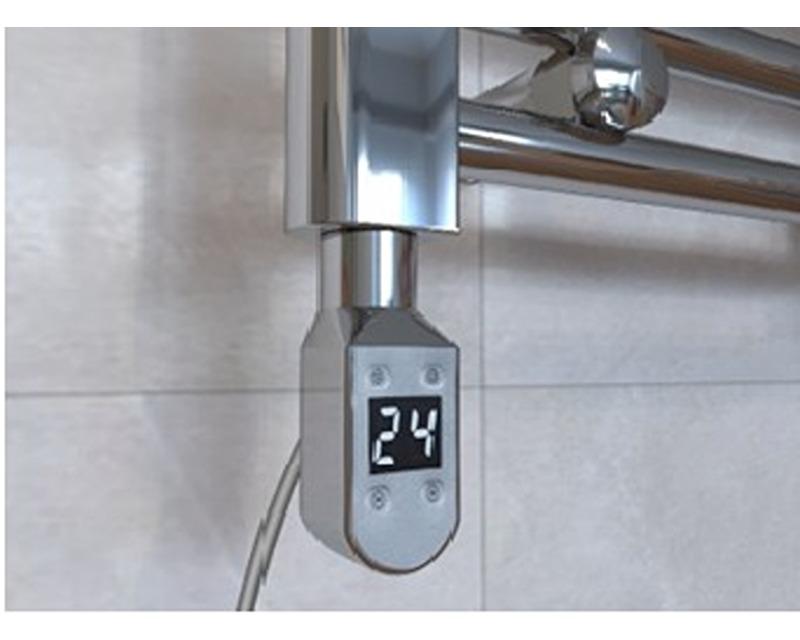

DIGITAL SQ MODEL-Water Heating Controller
708.75
/Box/ QTY in Box: 20 Pcs
Available

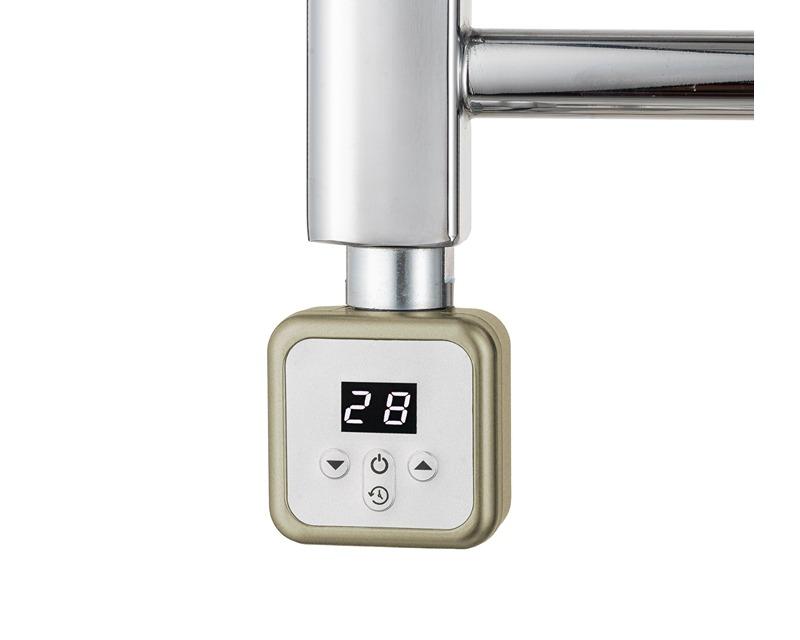

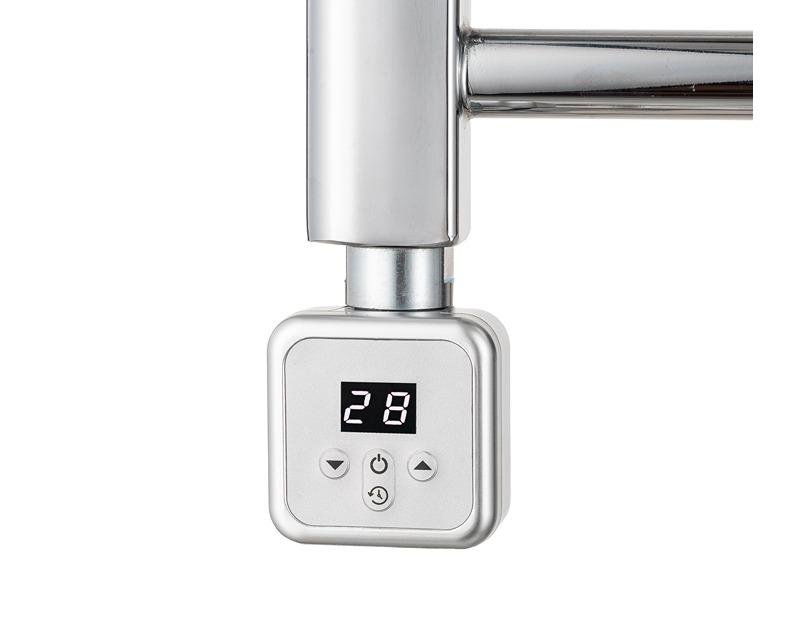

DIGITAL LED DISPLAY THERMOSTATIC CONTROL UNIT FOR ELECTRIC TOWEL RAIL
Measurement and transmission of setpoint temperature and room temperature to the control unit.
Quick heating of your bathroom using the instant Boost
Temperature setting
Power On / Standby
Operating modes selection
Benefits:
Excellent ergonomic settings: tilted interface with large and spaced buttons
White 7 segment LED display, easy to read
Control unit can be placed both on the right and the left side of the towel rail. Display direction can be turned 180°.
The control unit has the feature of easy disassembly and assembly. Provides easy fast-on
Fast-On Connection
Functional Specifications:Power On / standby: A dedicated button allows the appliance to be on standby
Temperature setting Preset at 20°C, adjustable from +7°C to+35°C
Timer Function:timer can be set that allows it to run for 1-5 hours
Safety:Built-in temperature sensor protects the device from overheating, limiting the temperature of the radiator to maximum of 70°C.

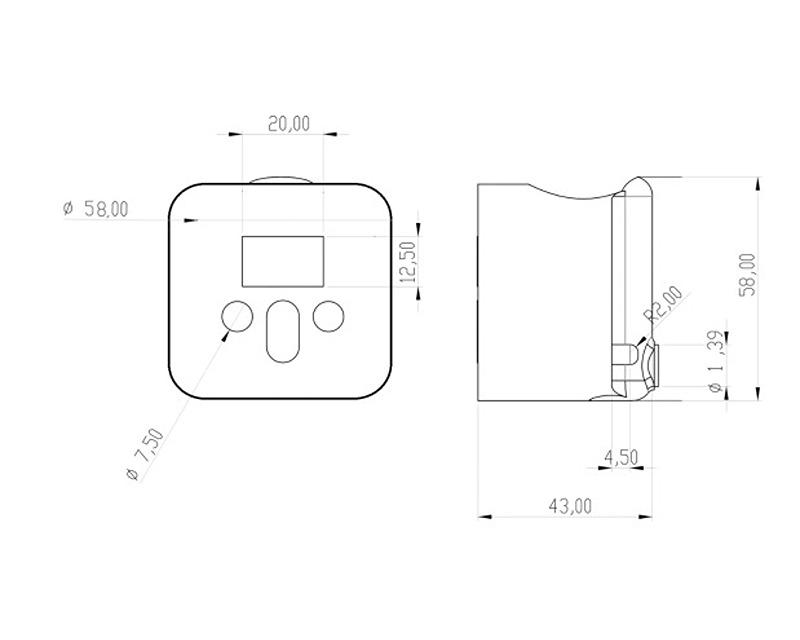

Dimensional and finish specifications:
Height: 58 mm
Width:58 mm
Depth:40 mm

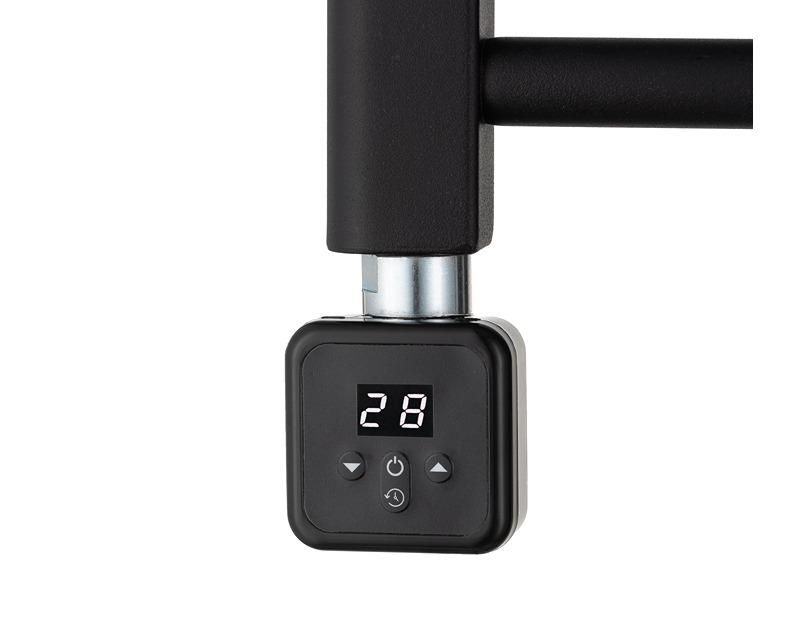

Color:White - Black - Chrome - Grey
Net weight:0.21 Kg
Power supply:
Operating Voltage:230V 50 Hz.
Power Rating:1000W, resistive load
Power cord:800 mm
Control Type:Electronic PID (Proportional Integrated Derivative) temperature regulation with microprocessor
Protection Rating:IP44
Class:Class I & Class II
Desired temperature setting:Adjustable from +7°C to +35°C
Storage temperature:-10°C to +70°C
Applicable directives:
EMC:2014/35/EU
LVD:2014/35/EU
RoHS:2014/35/EU
Applicable standards:
EMC:EN 61000-4-2 :2009 - EN 61000-4-3 :2006 + A1 + A2 - EN 61000-4-4 :2012 - EN 61000-4-5 : 2014 - EN 61000-4-6 : 2014 - EN 61000-4-11 2004 - N 61000-4-13 : 2002 + A1 + A2
LVD:IEC 60335-1:2020 ; EN 60335-1:2012 ; EN 62233:2008
RoHS:EN 50581
Manufacturing:ISO 9001:2015
