UP&DOWN Model-Water Heating Controller
783.5625
/Box/ QTY in Box: 20 Pcs
Available

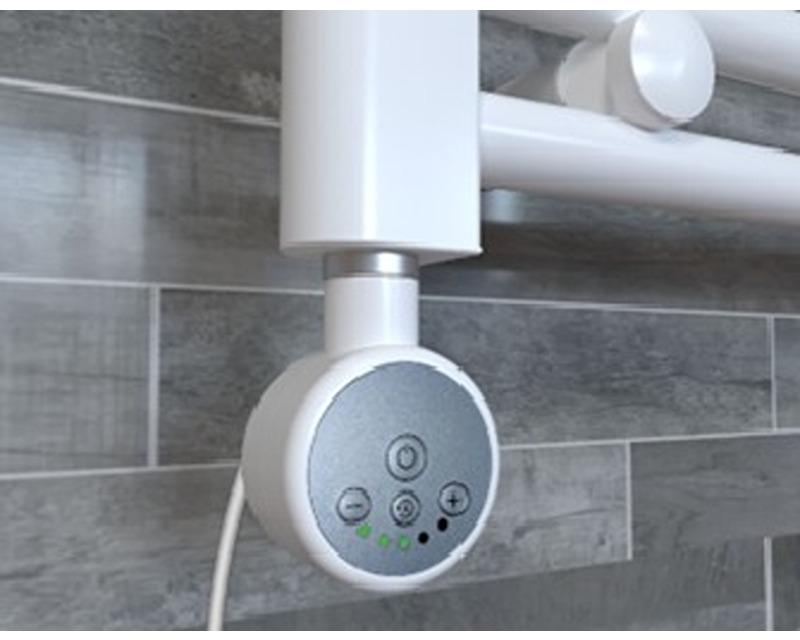

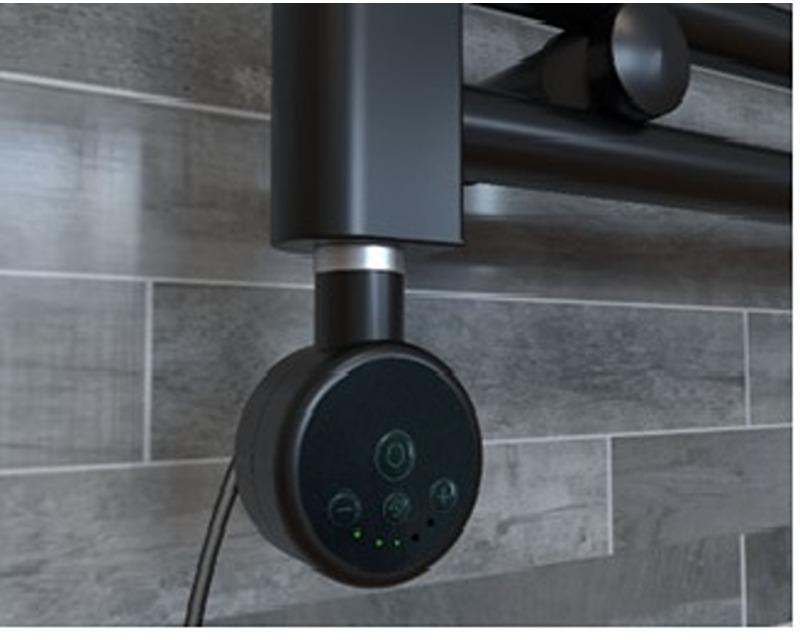

LED INDICATOR THERMOSTATIC CONTROL UNIT FOR ELECTRIC TOWEL RAIL
Main features:
Measurement and transmission of setpoint temperature and room temperature to the control unit.

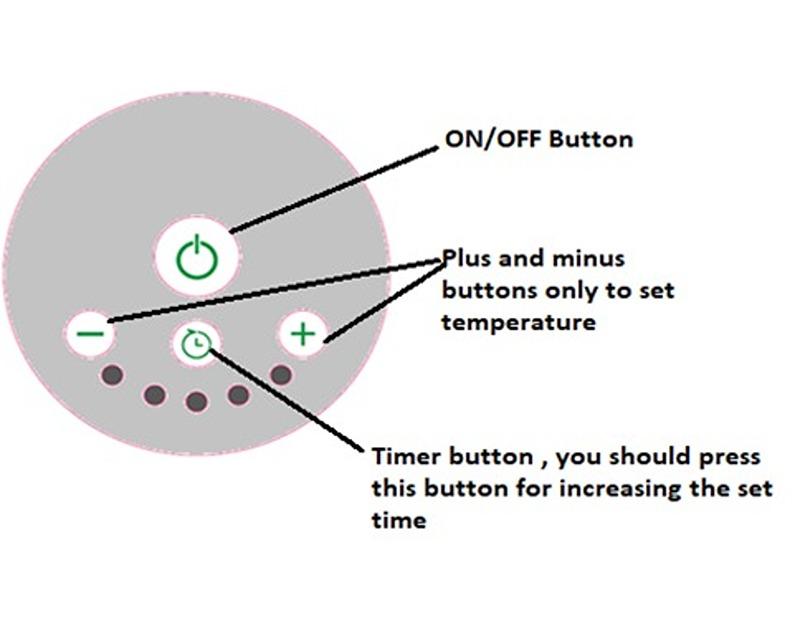

Quick heating of your bathroom using the instant Boost
Temperature setting
Power On / Standby
Operating modes selection
Benefits:
Excellent ergonomic settings: tilted interface with large and spaced buttons
5 level LED indicator
Control unit can be placed both on the right and the left side of the towel rail. Display direction can be turned 180°.
Functional Specifications:Power On / standby: A dedicated button allows the appliance to be on standby
Temperature setting Preset at 20°C, adjustable from +7°C to+35°C
Timer Function:timer can be set that allows it to run for 1-5 hours
Safety:Built-in temperature sensor protects the device from overheating, limiting the temperature of the radiator to maximum of 70°C.

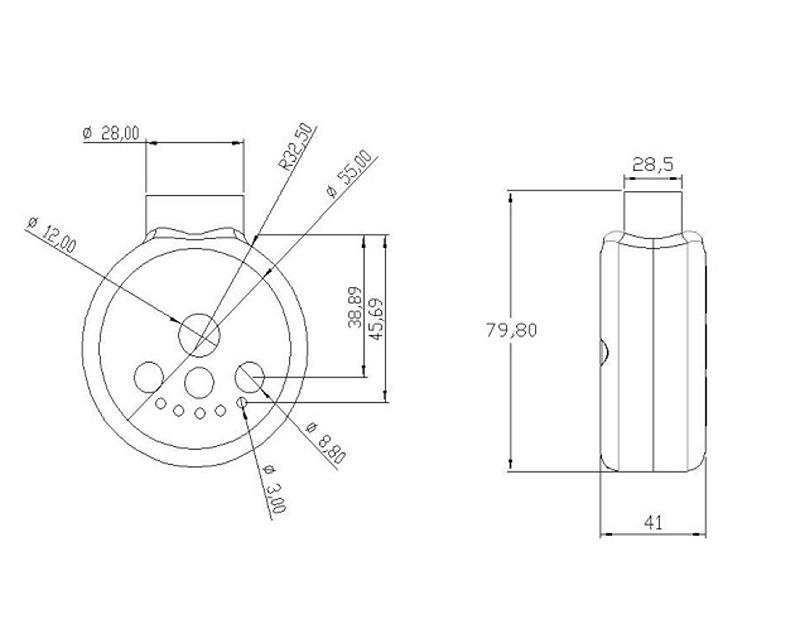

Dimensional and finish specifications:
Height: 79,80 mm
Width:64,90 mm
Depth:41 mm
Color:White - Black - Chrome - Grey
Net weight:0.27 Kg
Power Supply:
Operating voltage:230V +10/-15% 50Hz
Maximum power:1000W, resistive load
Power cord:800 mm
Control:
Control Type :Electronic PID (Proportional Integrated Derivative)temperature regulation with microprocessor
Environment:
Protection rating: IP44 - IP68
Class: Class I - Class II
Operating temperature: 7°C to +35°C
Applicable directives:
EMC:2014/35/EU
LVD:2014/35/EU
RoHS:2014/35/EU
Applicable standards:
EMC:IEC 60335-1:2020 ; EN 60335-1:2012 ; EN 62233:2008
LVD:IEC 60335-1:2020 ; EN 60335-1:2012 ; EN 62233:2008
RoHS:EN IEC 63000
Manufacturing:ISO 9001:2015
