ONE TOUCH Model-Water Heating Controller
553.6125
/Box/ QTY in Box: 20 Pcs
Available

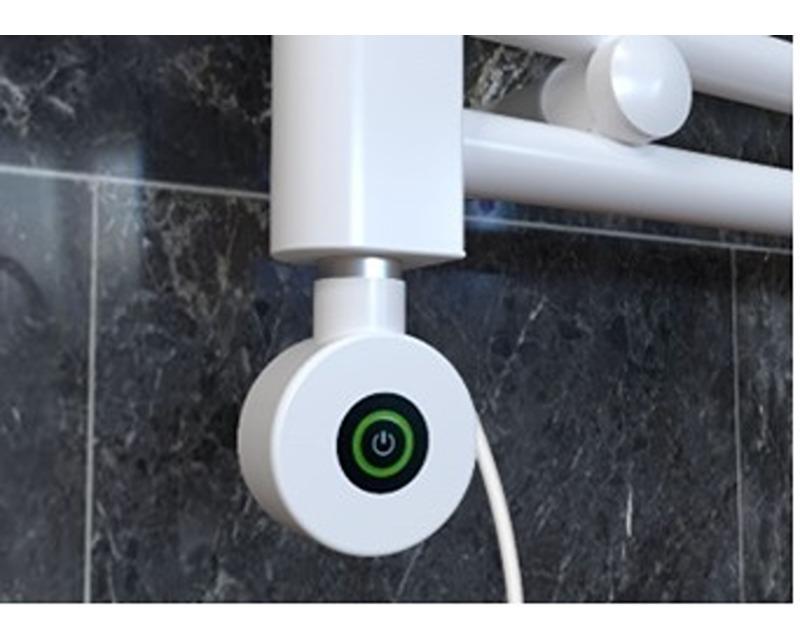

ONE TOUCH THERMOSTATIC CONTROL UNIT FOR ELECTRIC TOWEL RAIL
Main features:
Safety Valve
Easy to use
Power On / Standby
Flash Memory
Benefits:
Excellent ergonomic settings : large interface and buttoned
body
Control unit can be placed both on the right and the left side of
the towel rail .
Functional Specifications:
Safety:Built-in temperature sensor protects the device from overheating, limiting the temperature of the radiator to maximum of 70°C
Single Button: On and off with a single button
Flash Memory:Working memory to continue from where it left off in sudden shutdowns

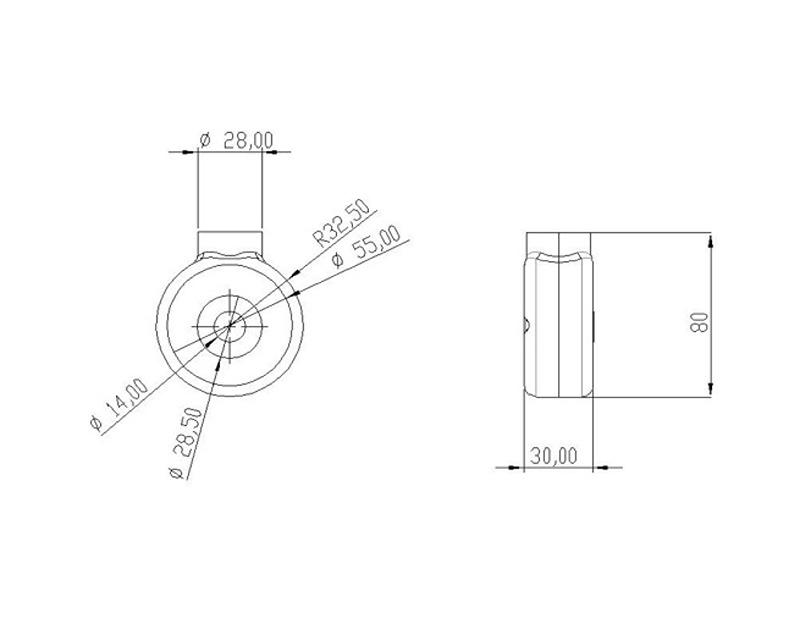

Dimensional and finish specifications:
Height: 80 mm
Width:65 mm
Depth:30 mm
Color:White - Black - Chrome
Net weight:0.65 Kg (excluding cable)
Power Supply:
Operating voltage:230V 50Hz
Maximum power:1000W, resistive load
Power cord:800 mm
Control Type: Electronic PID (Proportional Integrated Derivative) temperature regulation with microprocessor
Environment:
Protection rating: IP44 - IP68
Class: Class I - Class II
Operating temperature: Adjustable from +7°C to +35°C
Storage temperature -10°C to +70°C
Applicable directives:
EMC:2014/35/EU LVD:2014/35/EU RoHS:2014/35/EU
Applicable standards:
EMC:EN 61000-4-2 :2009 - EN 61000-4-3 :2006 + A1 + A2 - EN 61000-4-4 :2012 - EN 61000-4-5 : 2014 - EN 61000-4-6 : 2014 - EN 61000-4-11 2004 - N 61000-4-13 : 2002 + A1 + A2
LVD:IEC 60335-1:2020 ; EN 60335-1:2012 ; EN 62233:2008
RoHS:EN 50581
Manufacturing:ISO 9001:2015
