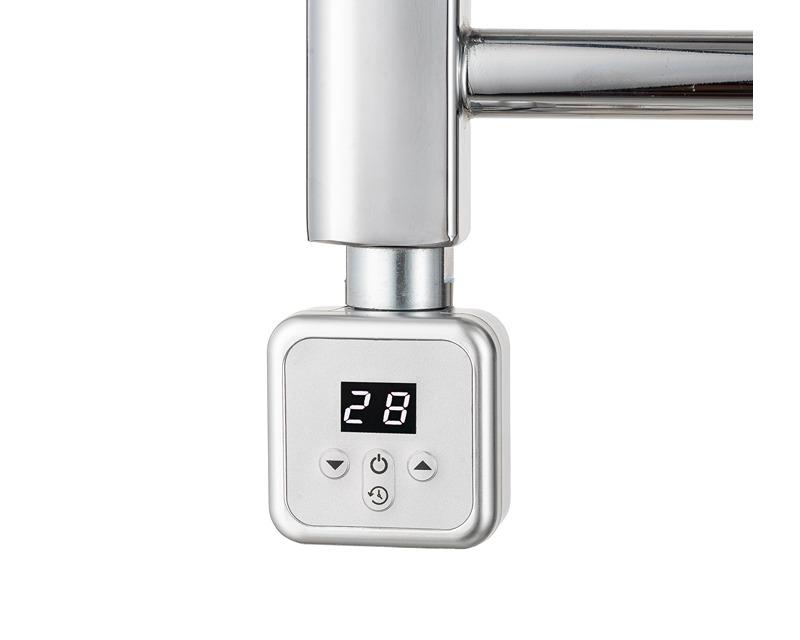

Sigma Model-Water Heating Controller
862.5749999999999
/Box/ QTY in Box: 20 Pcs
Available
LCD SCREEN THERMOSTATIC CONTROL UNIT FOR ELECTRIC TOWEL RAIL
Measurement and transmission of setpoint temperature and
room temperature to the control unit.
Quick heating of your bathroom using the instant Boost
Temperature setting
Power On / Standby
Various operating modes
Eco Design
7/24 Weekly Timer
Benefits:

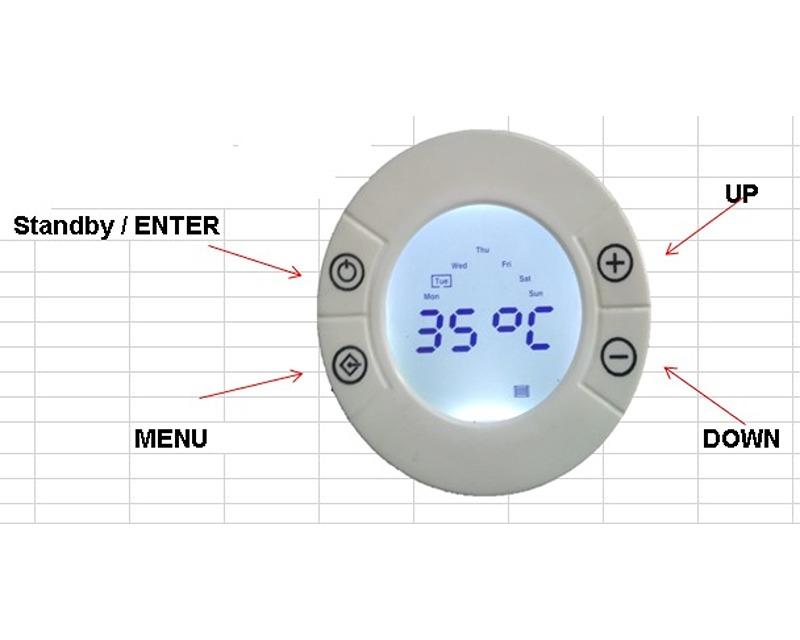

Excellent ergonomic settings : Tilted interface with large and
spaced buttons

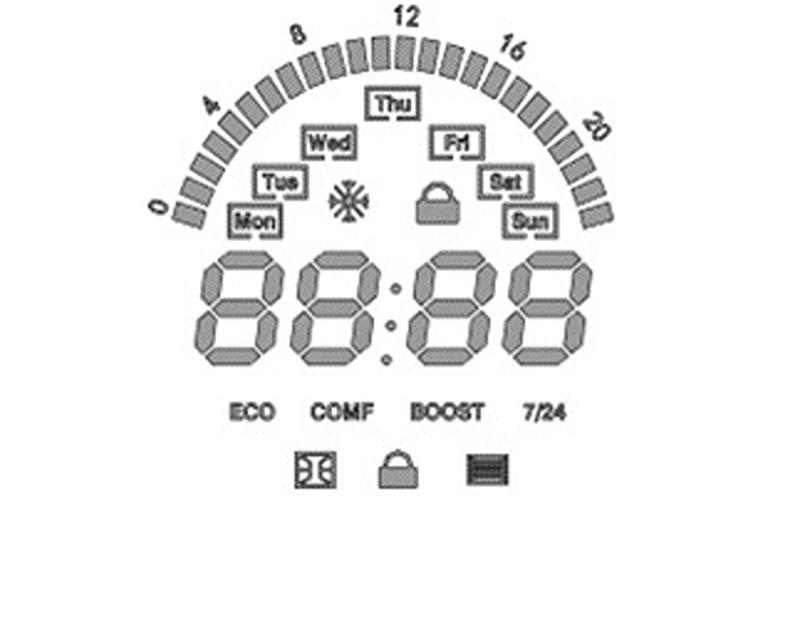

Large display: LCD screen, easy to read
Control unit can be placed both on the right and the left side of
the towel rail . Display direction can be turned 180˚
Luxurious use with a variety of mode features.
Functional Specifications:
Power On / Standby :A dedicated button allows the appliance to be on standby
Temperature Setting: Adjustable from +7°C to+35°C
Weekly Timer:It can be turned on and off on the days and hours of the week you specify
Child Lock: Prevents accidental changes to settings by locking the control panel
Boost Mode: It quickly increases the temperature of the towel rail and allows towels to dry quickly specify.
Eco Mode:This energy-saving mode maintains a set temperature of 20 degrees, keeping energy consumption low by holding a reduced temperature setting.
Comfort Mode :Maintains an optimal, cozy temperature for enhanced comfort.towels to dry quickly
Antifreeze: Activates to prevent freezing when water temperature drops below 7 degrees
Dimensional and finish specifications:
Height: 60 mm
Width:60 mm
Depth:41 mm
Color:White - Black - Chrome - Grey
Net weight:0.28 Kg
Power supply:
Operating Voltage:230V +10/-15% 50Hz
Power Rating:1000W, resistive load
Control Type:Electronic PID (Proportional Integrated Derivative) temperature
Environment
Protection Rating:IP44 - IP68
Class:Class I & Class II
Operating temperature : +7°C to +35°C
EMC:2014/35/EU
LVD:2014/35/EU
RoHS:2014/35/EU
Applicable standards:
EMC:IEC 60335-1:2020 ; EN 60335-1:2012 ; EN 62233:2008
LVD:IEC 60335-1:2020 ; EN 60335-1:2012 ; EN 62233:2008
RoHS:EN IEC 63000
Manufacturing:ISO 9001:2016
