ON&OFF Model-Water Heating Controller
415.0125
/Box/ QTY in Box: 20 Pcs
Available

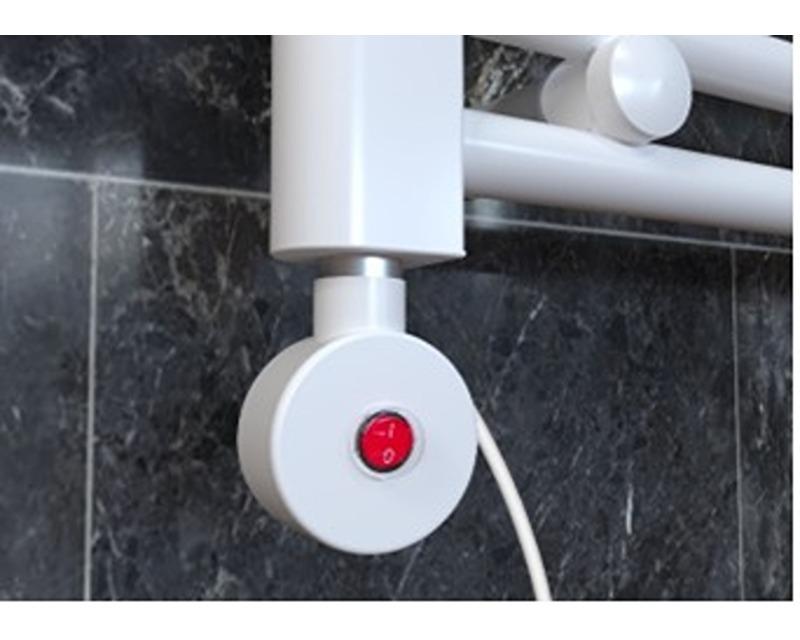

ON - OFF BUTTON THERMOSTATIC CONTROL UNIT FOR ELECTRIC TOWEL RAIL
Main features
Safety Valve
Easy to use Power On / Standby
Benefits:
Excellent ergonomic settings : large interface and buttoned body
Control unit can be placed both on the right and the left side of
the towel rail
Functional Specifications:
Safety:Built-in temperature sensor protects the device from overheating, limiting the temperature of the radiator to maximum of 70°C
Single Button: On and off with a single button
Technical specifications:

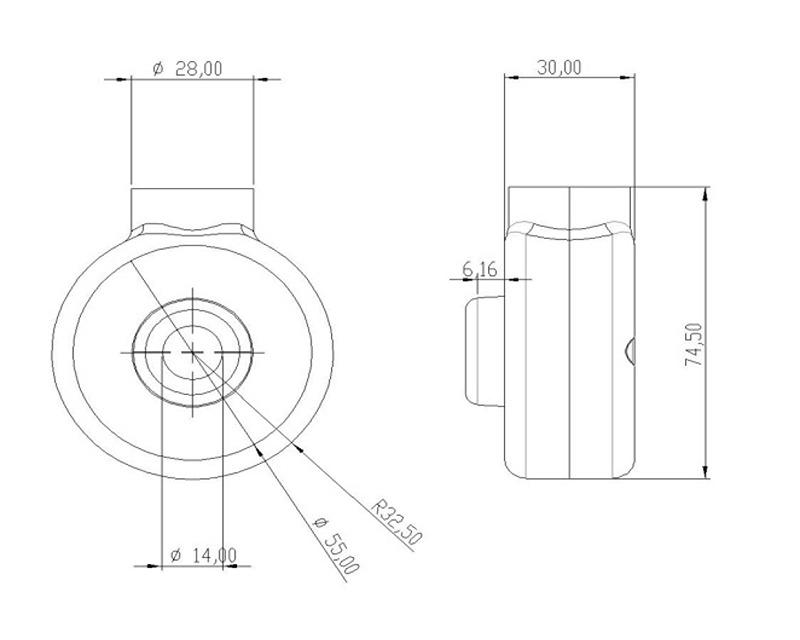

Dimensional and finish specifications:
Height:74,50 mm
Width:65 mm
Depth:30 mm
Color:White - Black - Chrome - Gold - Anthracite
Net weight:0.65 Kg (excluding cable)
Power Supply:
Operating voltage:230V 50Hz
Maximum power:1000W, resistive load
Power cord:800 mm
Control:
Control Type:Electronic PID (Proportional Integrated Derivative) temperature regulation with microprocessor
Environment:
Protection rating:IP44 - IP68
Class:Class I - Class II
Operating temperature:Adjustable from +7°C to +35°C
Storage temperature:-10°C to +70°C
Applicable directives:
EMC:2014/35/EU
LVD:2014/35/EU
RoHS:2014/35/EU
Applicable standards:
EMC:ΕΝ 61000-4-2:2009 - EN 61000-4-3:2006 + A1 + A2 - EN 61000-4-4 :2012 - EN 61000-4-5: 2014 - EN 61000-4-6:2014 - EN 61000-4-11 2004 - N 61000-4-13: 2002 + A1 + A2
LVD:IEC 60335-1:2020; EN 60335-1:2012; EN 62233:2008
RoHS:EN 50581
Manufacturing:ISO 9001:2016
