UP&DOWN S -Water Heating Controller
787.5
/Box/ QTY in Box: 20 Pcs
Available

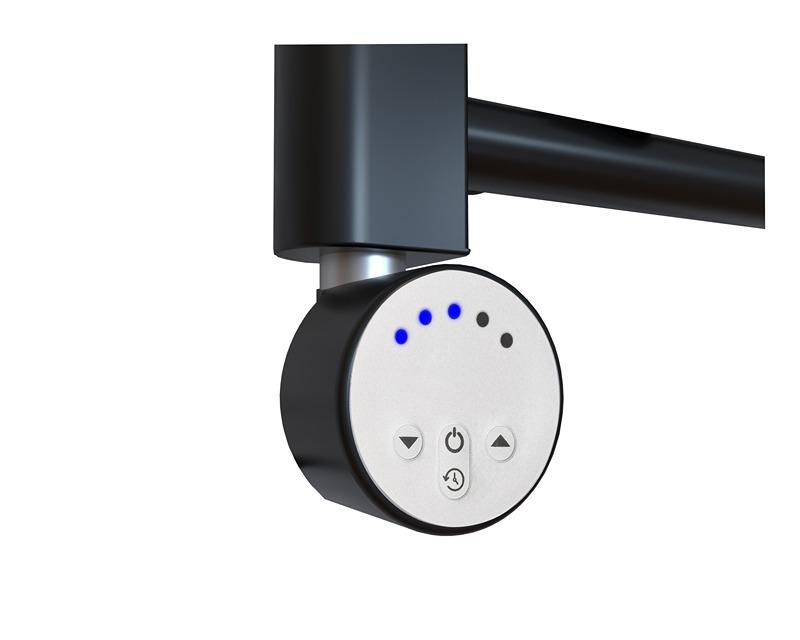

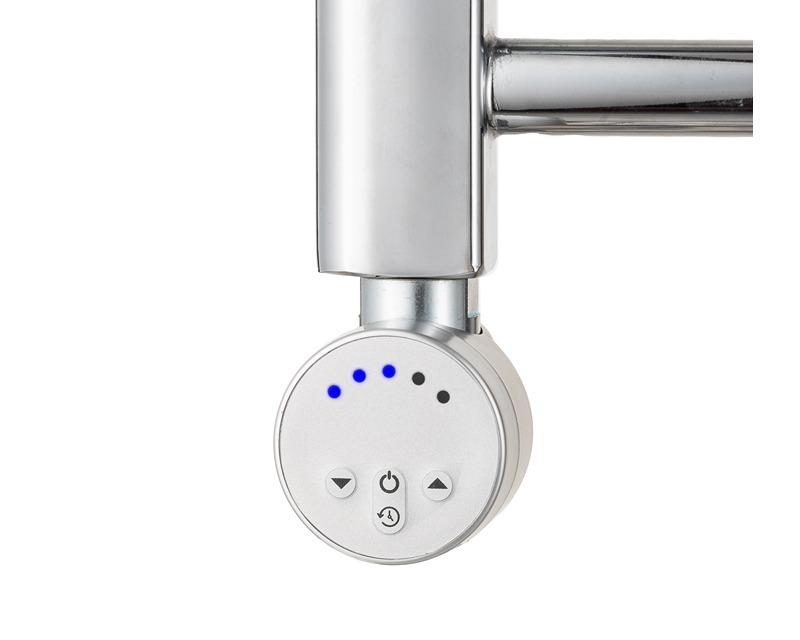

LED INDICATOR THERMOSTATIC CONTROL UNIT FOR ELECTRIC TOWEL RAIL
Main features:
Measurement and transmission of setpoint temperature and room temperature to the control unit.
Quick heating of your bathroom using the instant Boost
Temperature setting
Power On / Standby
Operating modes selection
Benefits:
Excellent ergonomic settings : tilted interface with large and
spaced buttons
5 level LED indicator
Control unit can be placed both on the right and the left side of
the towel rail . Display direction can be turned 180˚.
Fast-On Connection
IEC 60335-1:2020 ; EN 60335-1:2012 ; EN 62233:2008
EN 50581
ISO 9001:2016
Functional Specifications:
Power On / Standby :A dedicated button allows the appliance to be on standby
Temperature Setting: Adjustable from +7°C to+35°C
Timer Function:timer can be set that allows it to run for 1-5 hours
Safety:Built-in temperature sensor protects the device from overheating, limiting the temperature of the radiator to maximum of 70°C.l

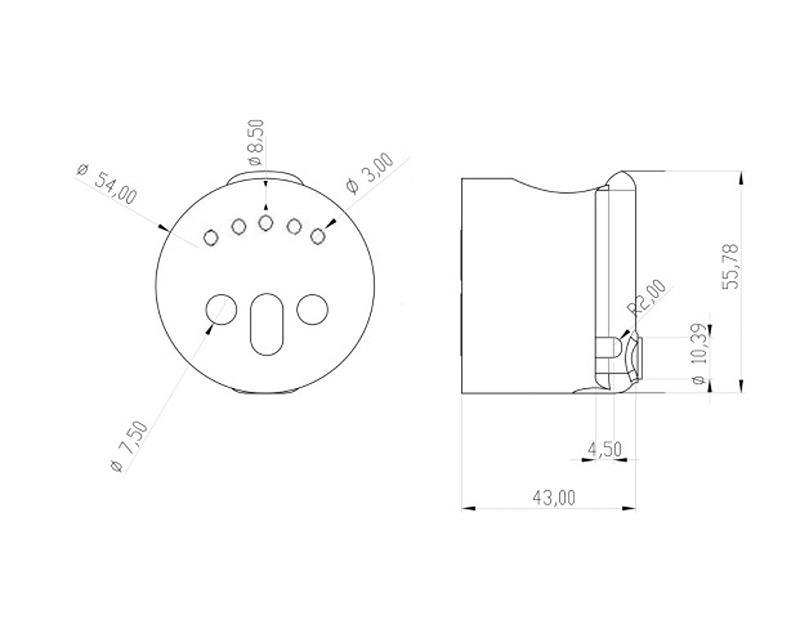

Dimensional and finish specifications:
Height: 55 mm
Width:55 mm
Depth:45 mm
Color:White - Black - Chrome - Grey
Net weight:0.21 Kg
Power supply:
Operating Voltage:230V 50Hz
Power Rating:1000W, resistive load
Power cord:800 mm
Control Type: Electronic PID (Proportional Integrated Derivative) temperature regulation with microprocessor
Protection Rating:IP44 - IP68
Class:Class I & Class II
Operating temperature : +7°C to +35°C
EMC:2014/35/EU
LVD:2014/35/EU
RoHS:2014/35/EU
Applicable standards:
EMC:IEC 60335-1:2020 ; EN 60335-1:2012 ; EN 62233:2008
LVD:IEC 60335-1:2020 ; EN 60335-1:2012 ; EN 62233:2008
RoHS:EN IEC 63000
Manufacturing:ISO 9001:2025
Power On / Standby :A dedicated button allows the appliance to be on standby
Temperature Setting: Adjustable from +7°C to+35°C
Timer Function:timer can be set that allows it to run for 1-5 hours
Safety:Built-in temperature sensor protects the device from overheating, limiting the temperature of the radiator to maximum of 70°C.l
Dimensional and finish specifications:
Height: 55 mm
Width:55 mm
Depth:45 mm
Color:White - Black - Chrome - Grey
Net weight:0.21 Kg
Power supply:
Operating Voltage:230V 50Hz
Power Rating:1000W, resistive load
Power cord:800 mm
Control Type: Electronic PID (Proportional Integrated Derivative) temperature regulation with microprocessor
Protection Rating:IP44 - IP68
Class:Class I & Class II
Operating temperature : +7°C to +35°C
EMC:2014/35/EU
LVD:2014/35/EU
RoHS:2014/35/EU
Applicable standards:
EMC:IEC 60335-1:2020 ; EN 60335-1:2012 ; EN 62233:2008
LVD:IEC 60335-1:2020 ; EN 60335-1:2012 ; EN 62233:2008
RoHS:EN IEC 63000
Manufacturing:ISO 9001:2025
